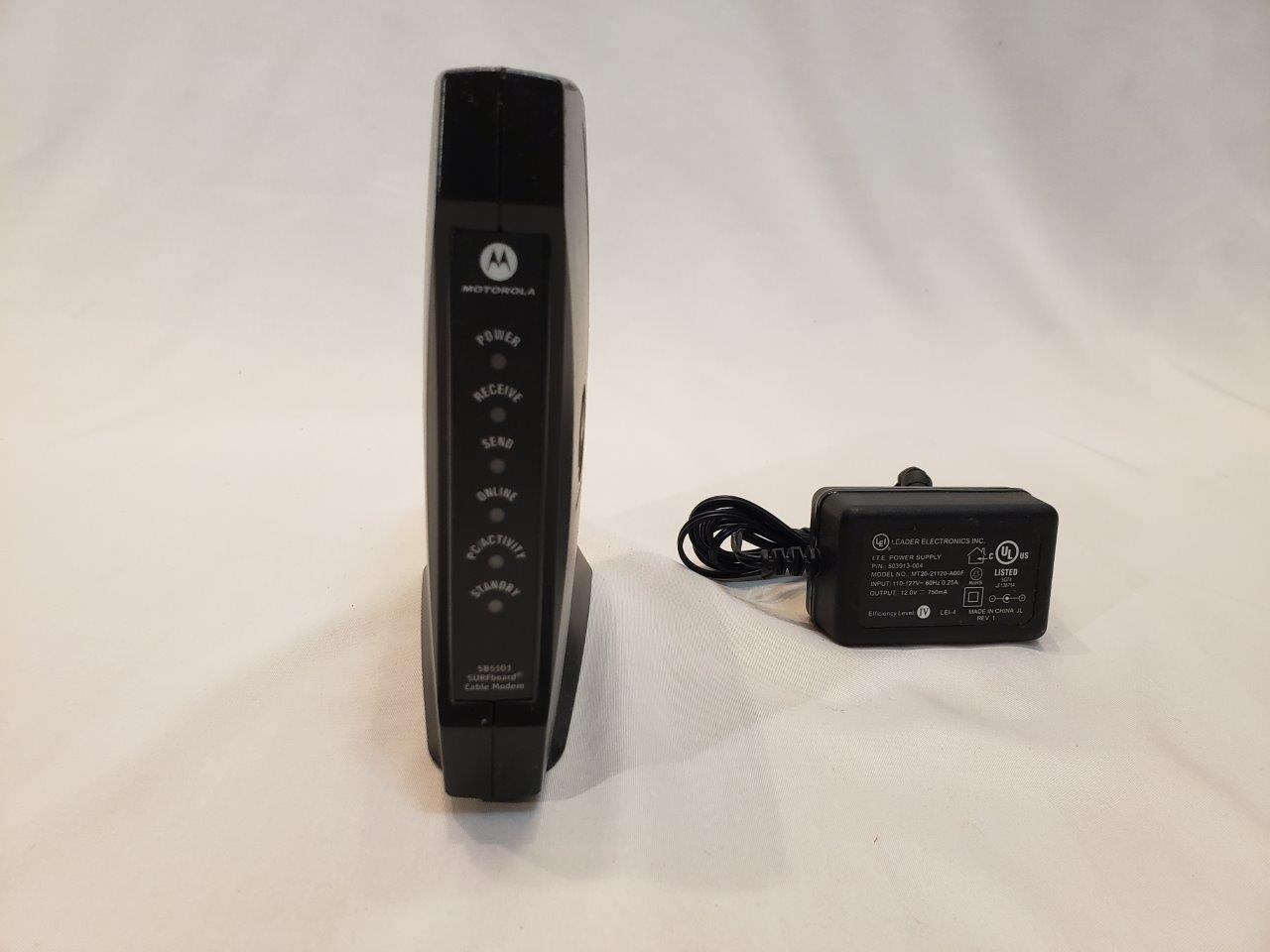

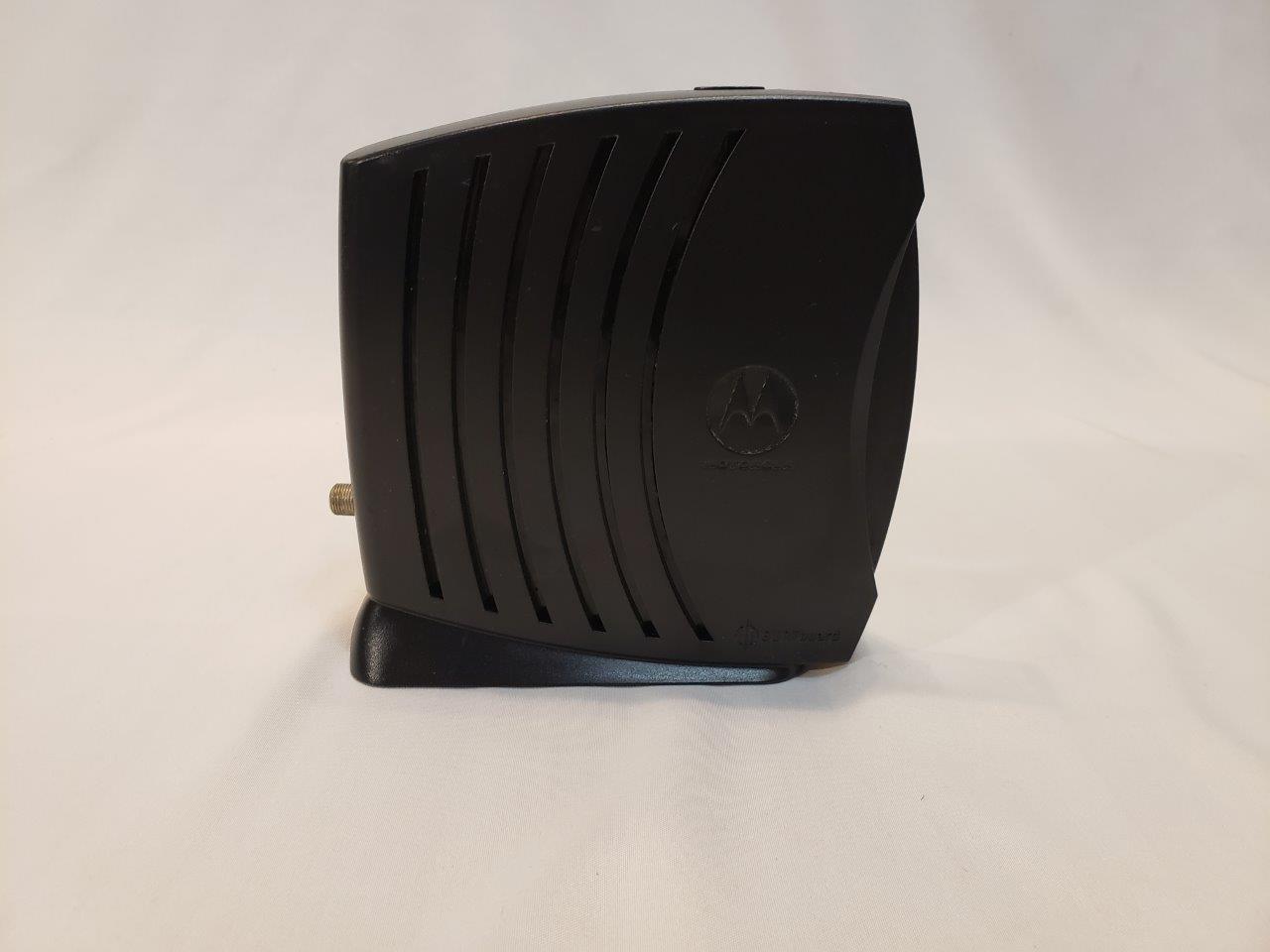

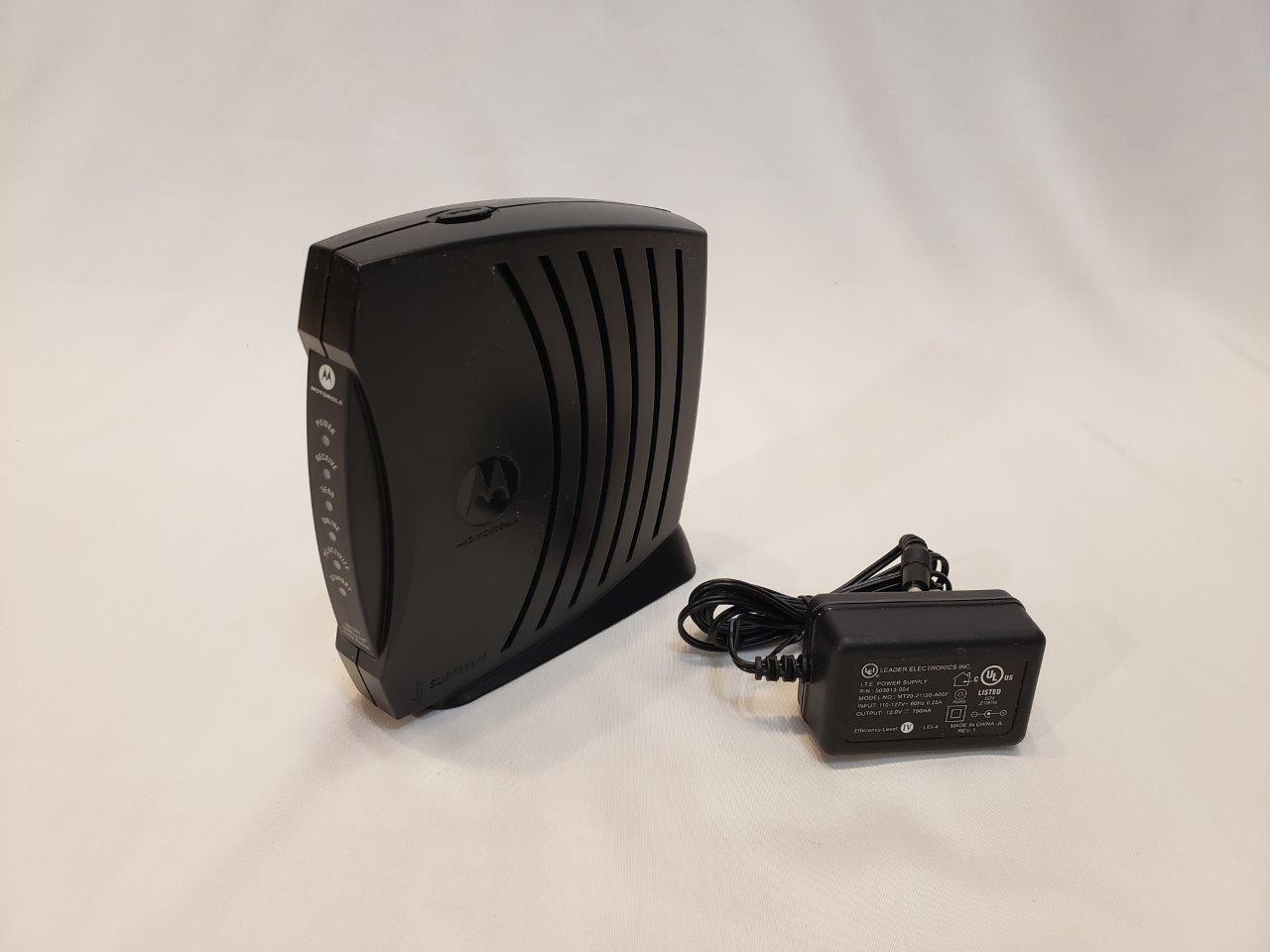

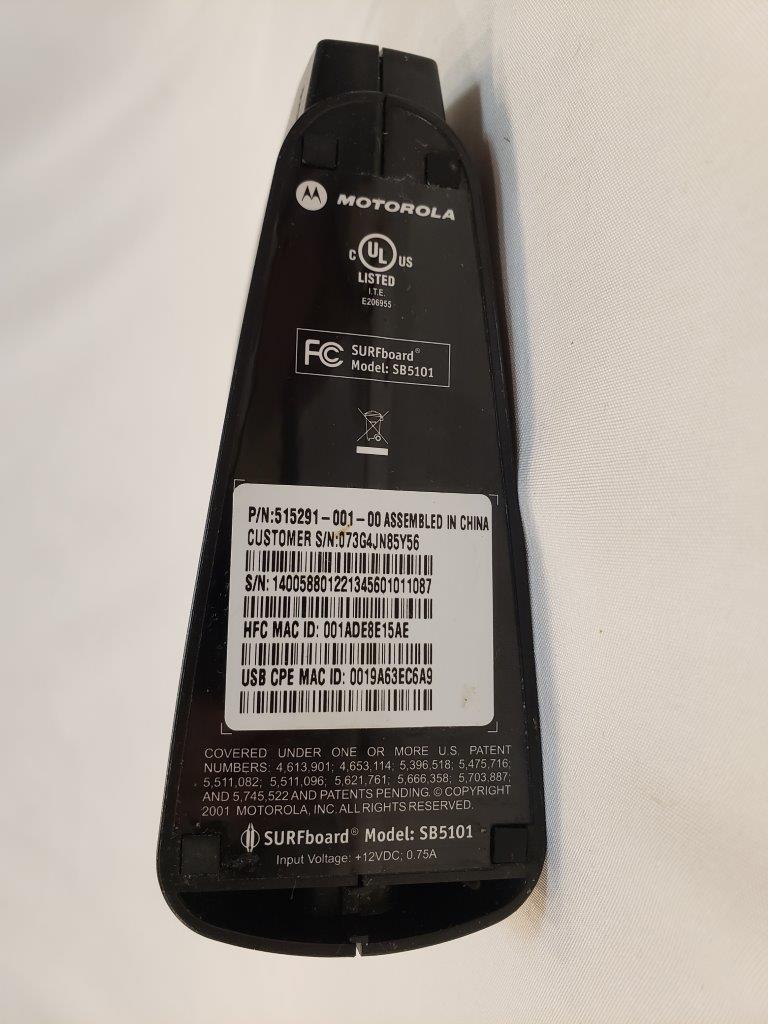

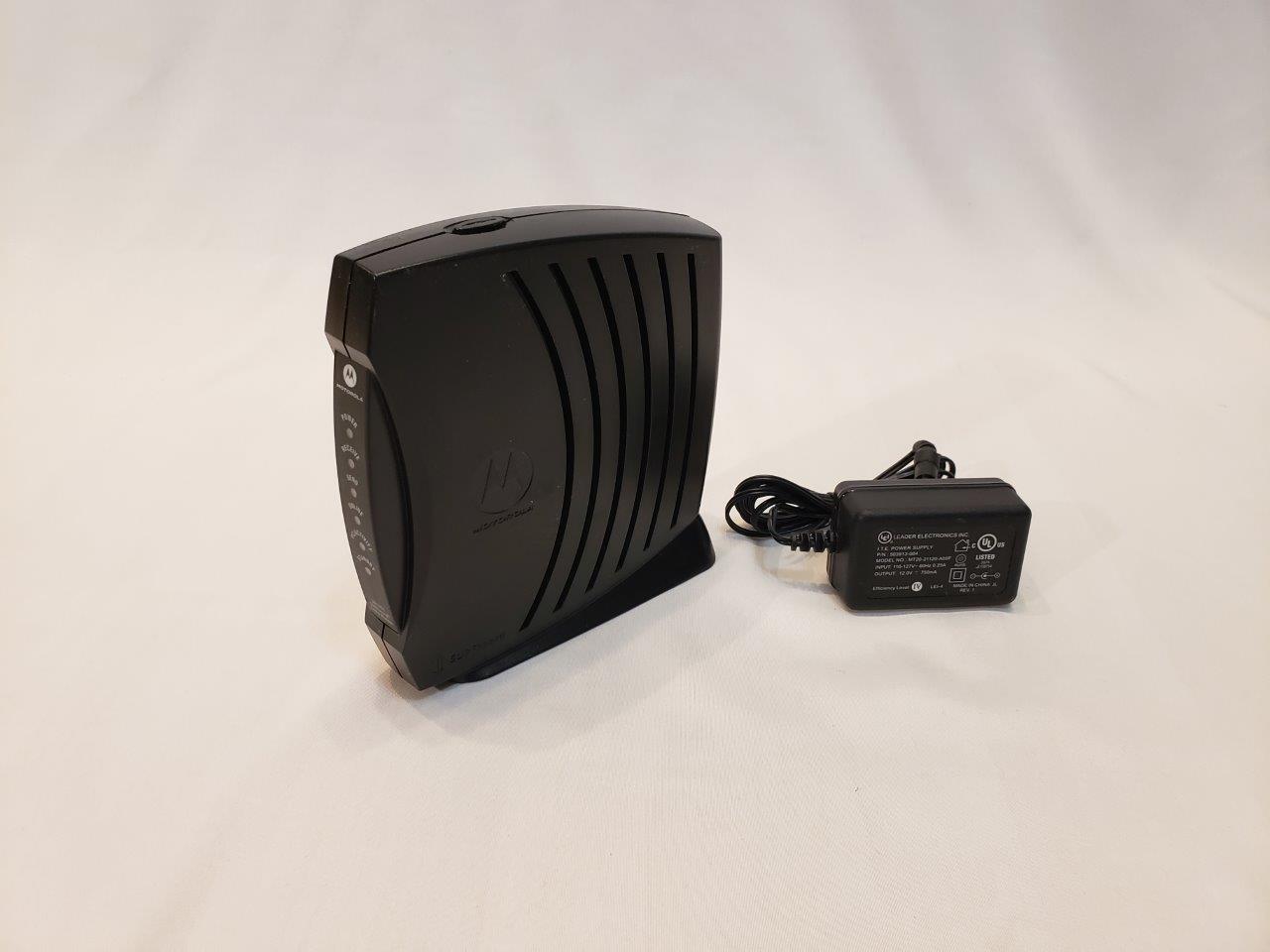

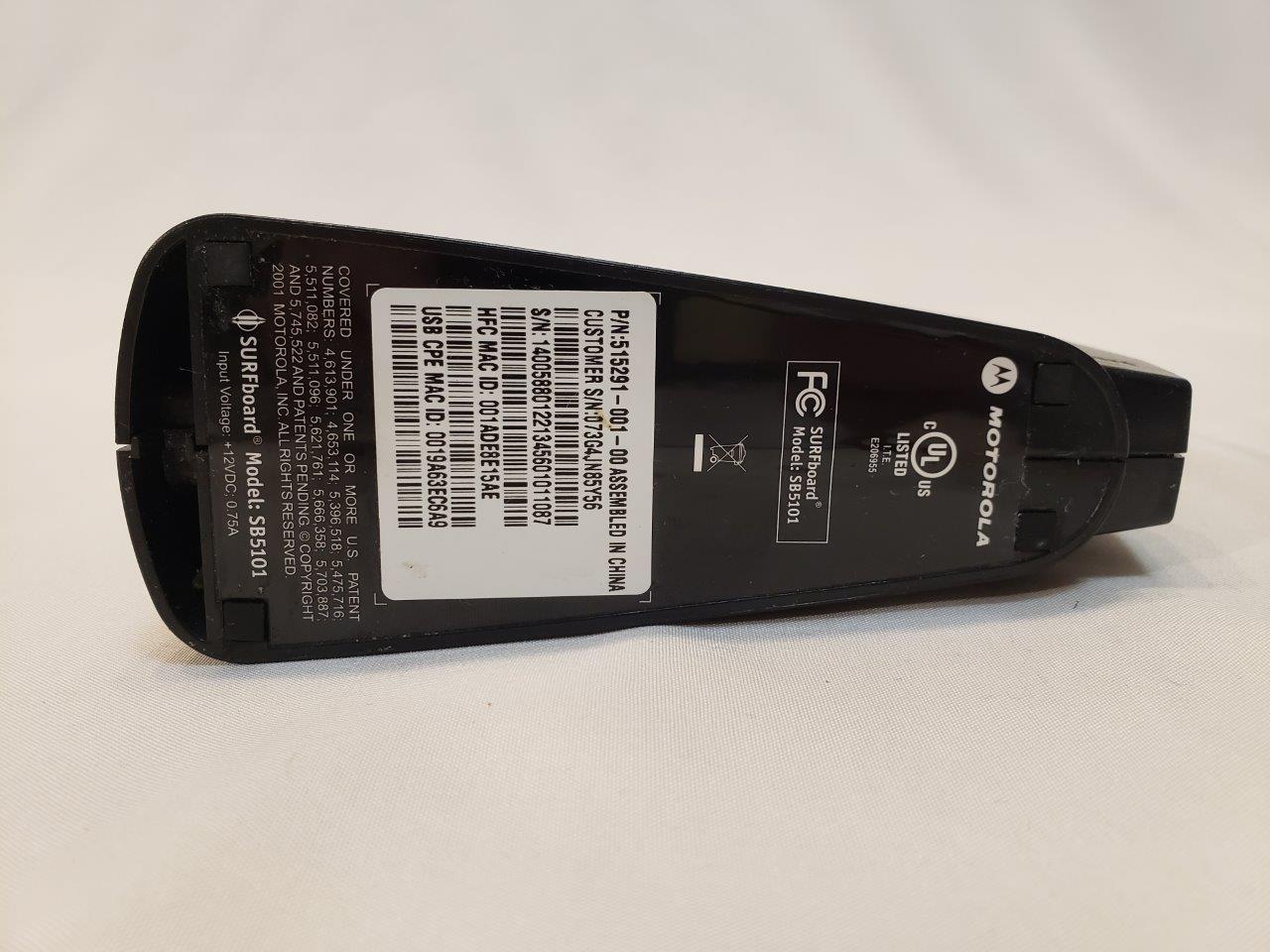

Used SB5101 Cable Modem
Easy to use. The Motorola SB5101 cable modem unlocks the potential of offering high-speed data service to consumers. You can get their favorite Web sites quickly, download graphics with unbelievable ease, and enjoy real-time interactive PC gaming and expand console gaming with broadband Internet access from the cable modem market leader — Motorola.
Motorola’s next-generation SB5101 cable modem is powerful, convenient, flexible, simple to install, and easy to use. It incorporates DOCSIS®2.0 technology, providing up to three times the upstream capacity of DOCSIS 1.0 or 1.1 — allowing consumers to surf the Internet at as much as 30 Mbps. For a smooth transition, the SB5101 is backwards compatible with DOCSIS 1.0 and 1.1. Operators can deploy theSB5101 without service interruption, maximizing their current infrastructure investment while simultaneously offering new value-added services.
Motorola’s SB5101 cable modem is convenient for operators and end-users alike — high-speed Internet access is always at one’s fingertips. Always on and always connected, a cable modem is much faster than a traditional dial-up modem. It enables one to enjoy the Internet the way it should be — surfing, downloading, working, shopping, gaming, and e-mailing is made faster and easier with the SB5101.
Installation couldn’t be simpler — just connect the coaxial cable to the SB5101 using an existing cable outlet, then connect the power, and lastly connect the PC to the SB5101 cable modem via either Ethernet or USB port. Trouble-shooting is a breeze too, thanks to front panel status indicator LEDs and an online diagnostics page. In addition, the SB5101 is equipped with a top-mounted Stand-by switch pro-vides users with increased security, enabling them to disconnect from the Internet when the cable modem is not in use.
SPECIFICATION SHEET HIGHLIGHTS
Compatible with Windows®, Macintosh®, and Unix® computers
DOCSIS® 1.1 and 2.0 Certified
10/100Base-T Ethernet (RJ-45) and USB high-speed data ports

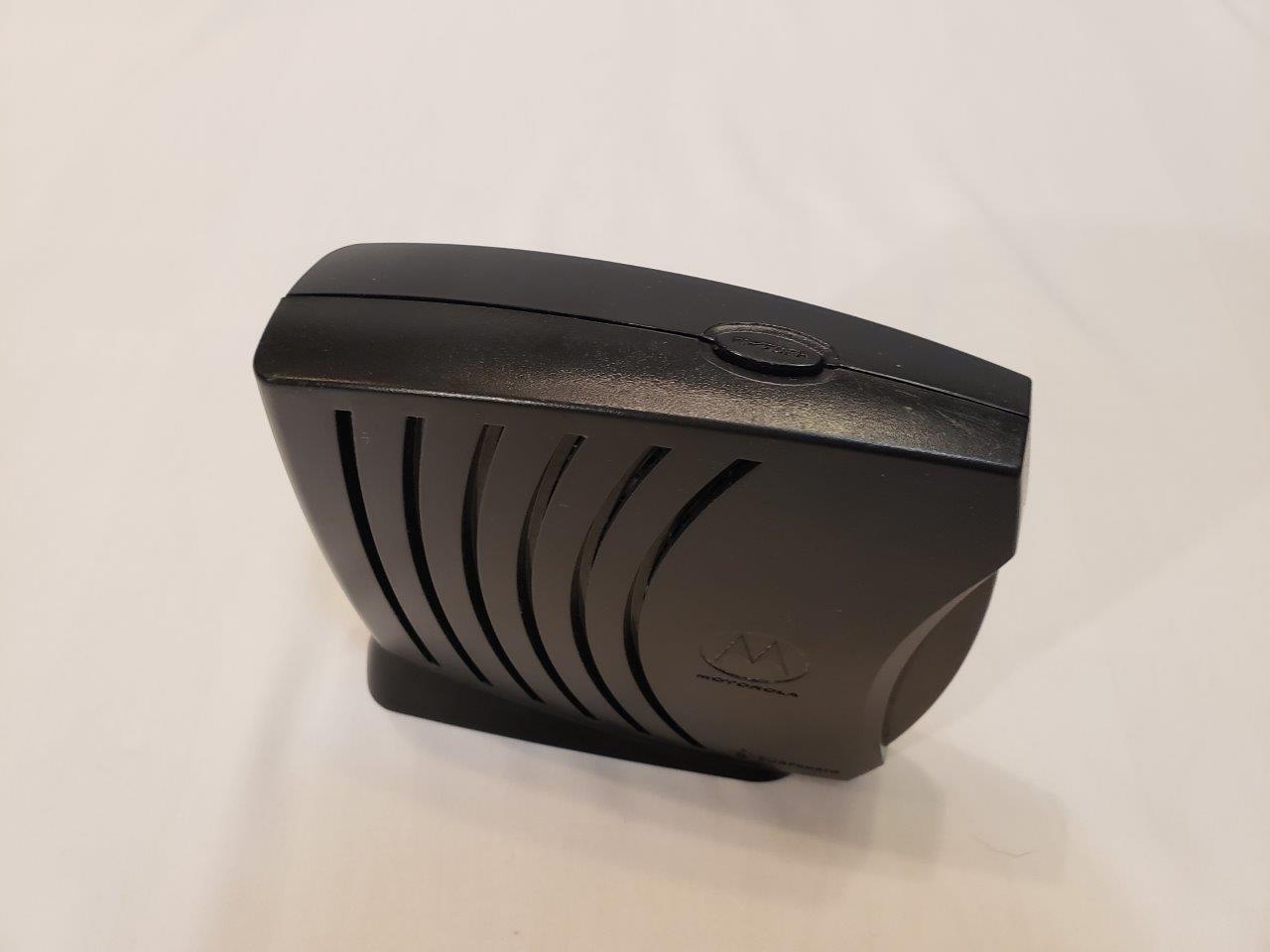

Top-mounted Standby switch for increased security

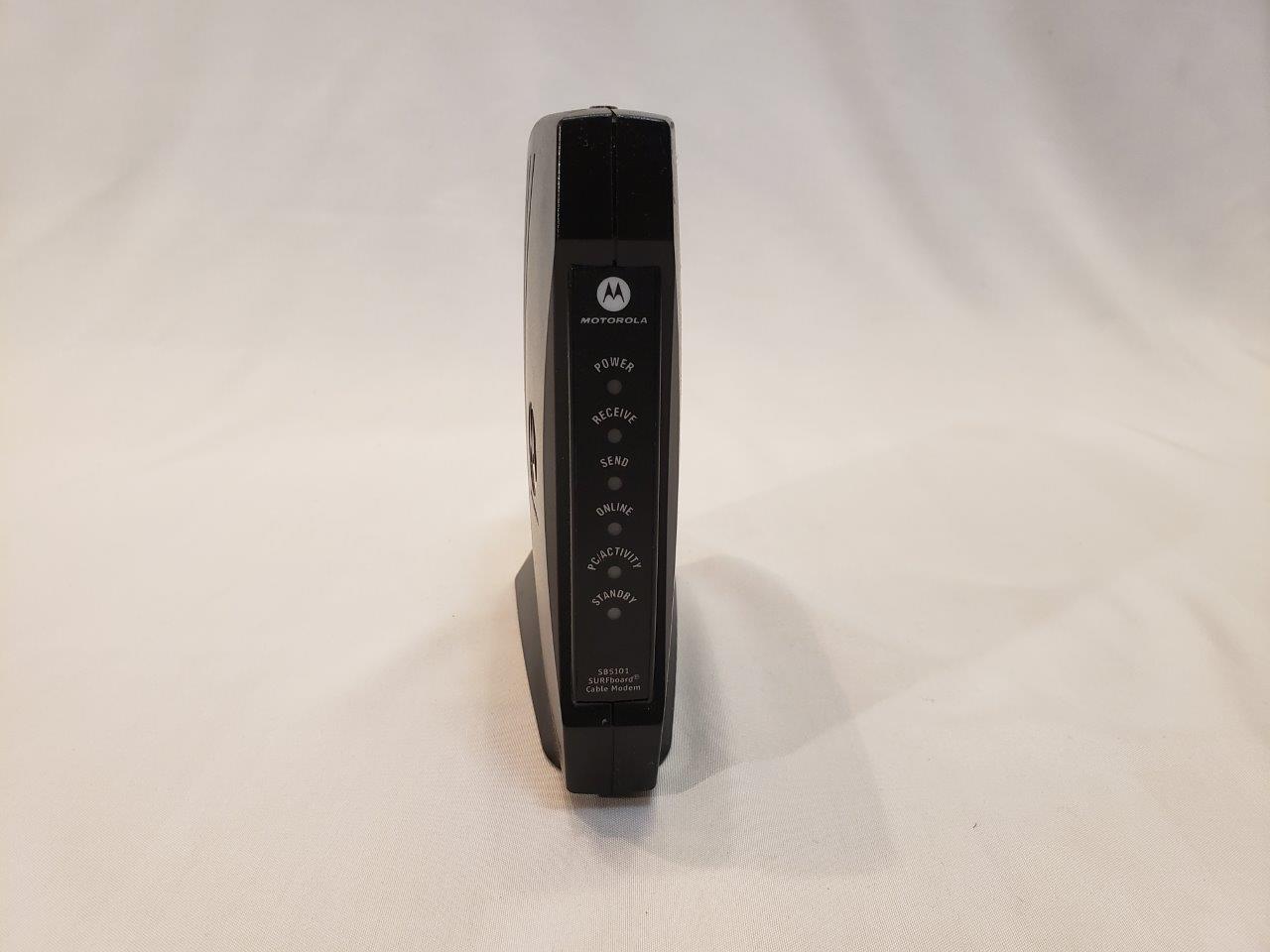

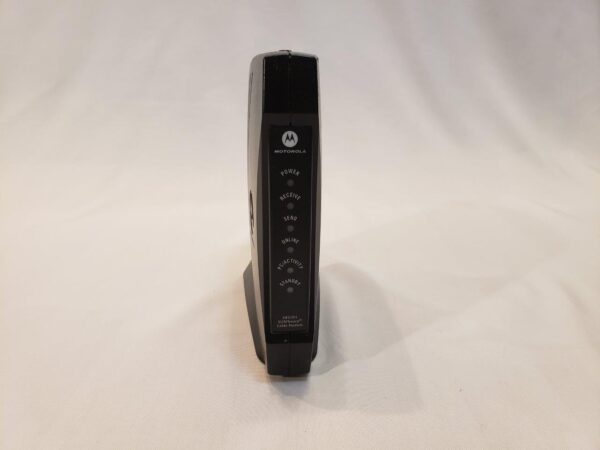

Front-panel LEDs indicate status and simplify troubleshooting
User-friendly online diagnostics page
Supports standard Internet software
Supports up to 63 computers on a single Internet connection (additional networking hardware required)
Remote configuration and monitoring from the headend using SNMP and TFTP
Stylish and space-saving enclosure

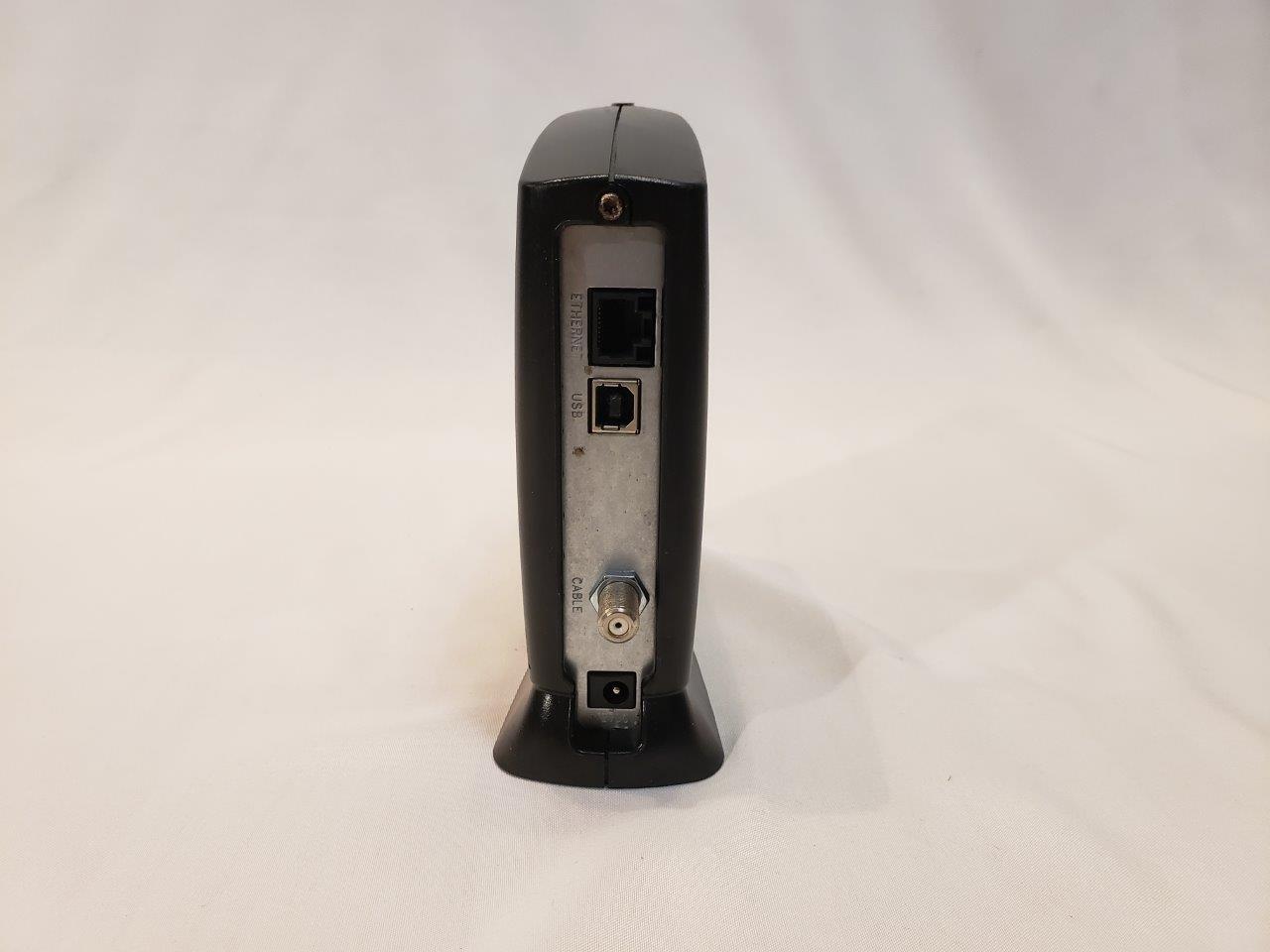

Cable Interface: F-Connector, female, 75 Ω
CPE Network Interface: USB, Ethernet 10/100Base-T
Data Protocol: TCP/IP
Dimensions: 6.2 in (15.75 cm) H x 2.3 in (5.84 cm) W x 6.0 in (15.24 cm) L
Power: 9 W (nominal)

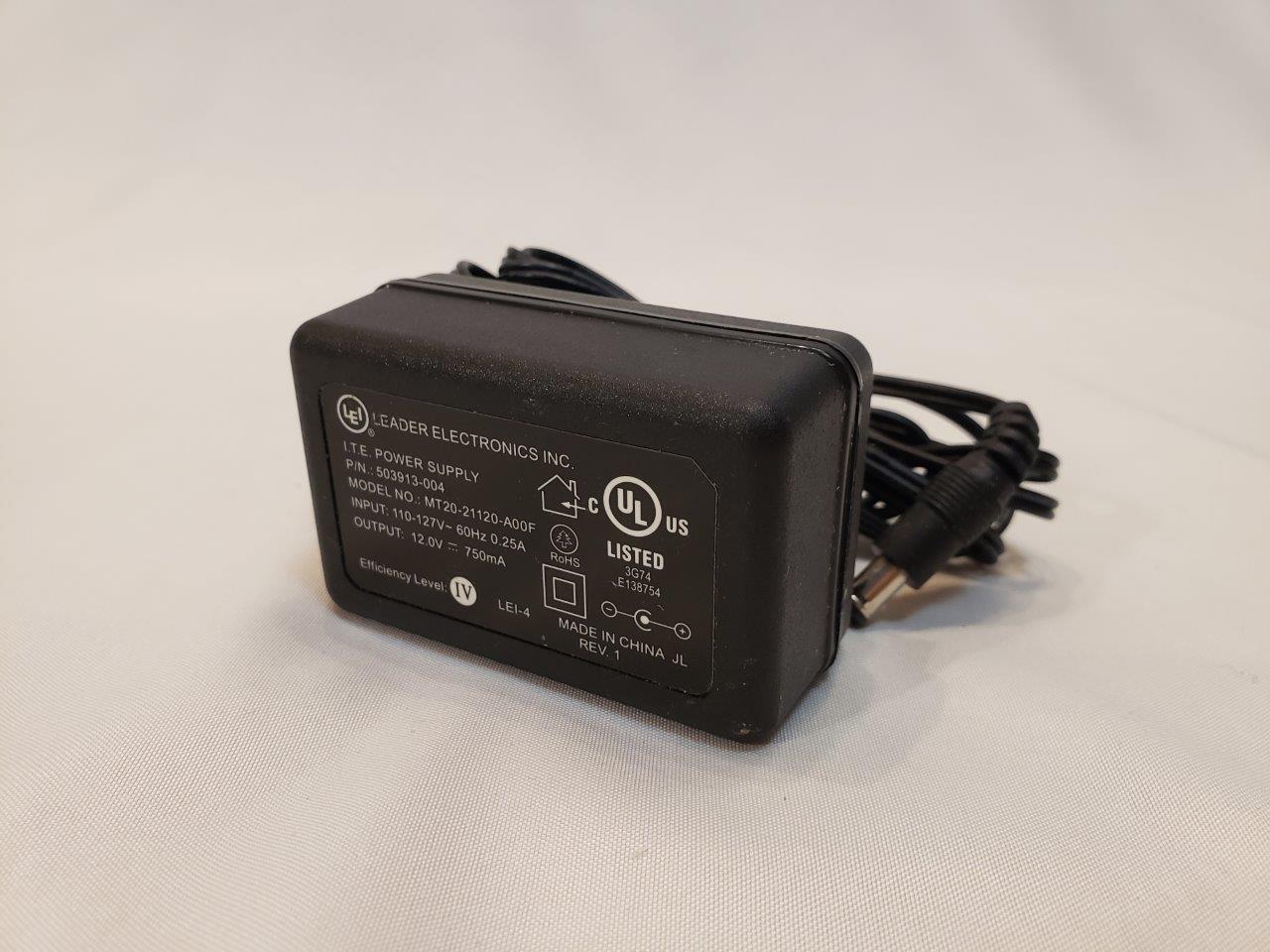

Input Power: 105 – 125 VAC, 60 Hz
Modulation: 64 or 256 QAM
Maximum Data Rate*: 38 Mbps (256 QAM at 5.361 Msym/s)
Bandwidth: 6 Mhzp
Symbol Rate: 64 QAM 5.057 Msym/s, 256 QAM 5.361 Msym/s
Operating Level Range: –15 to +15 dBmV
Input Impedance: 75 Ω(nominal)
Frequency Range: 88 to 860 MHz
