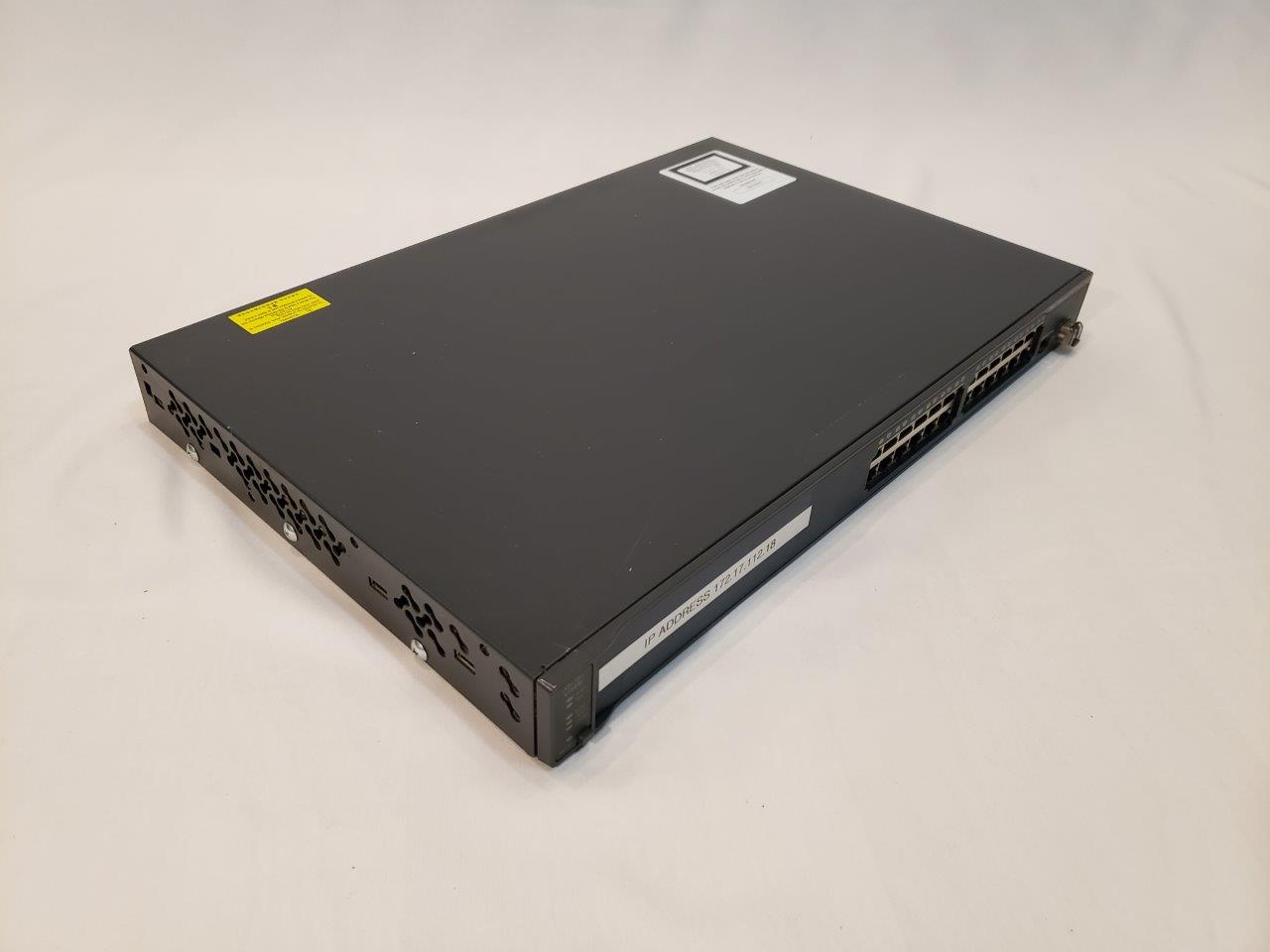

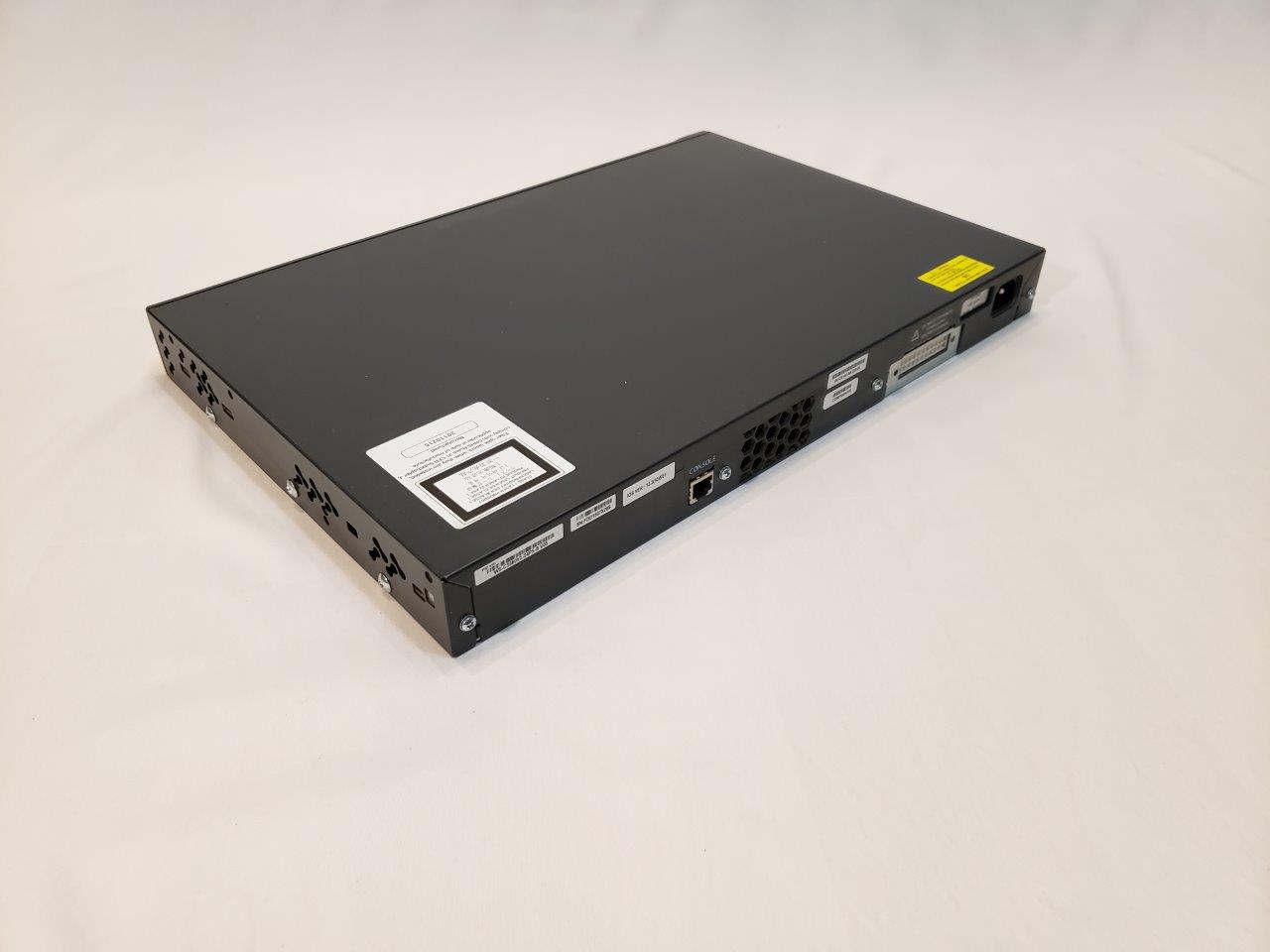

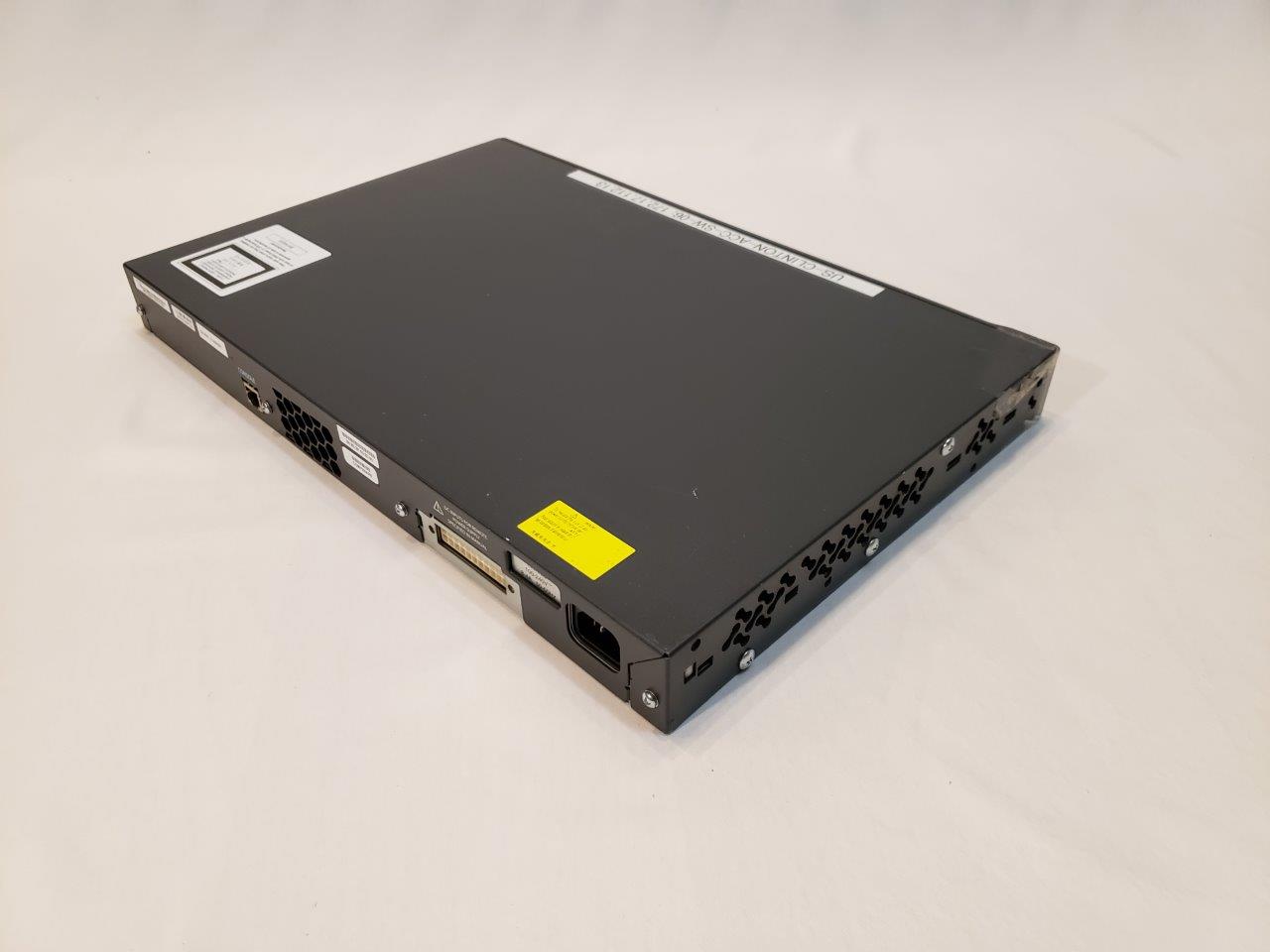

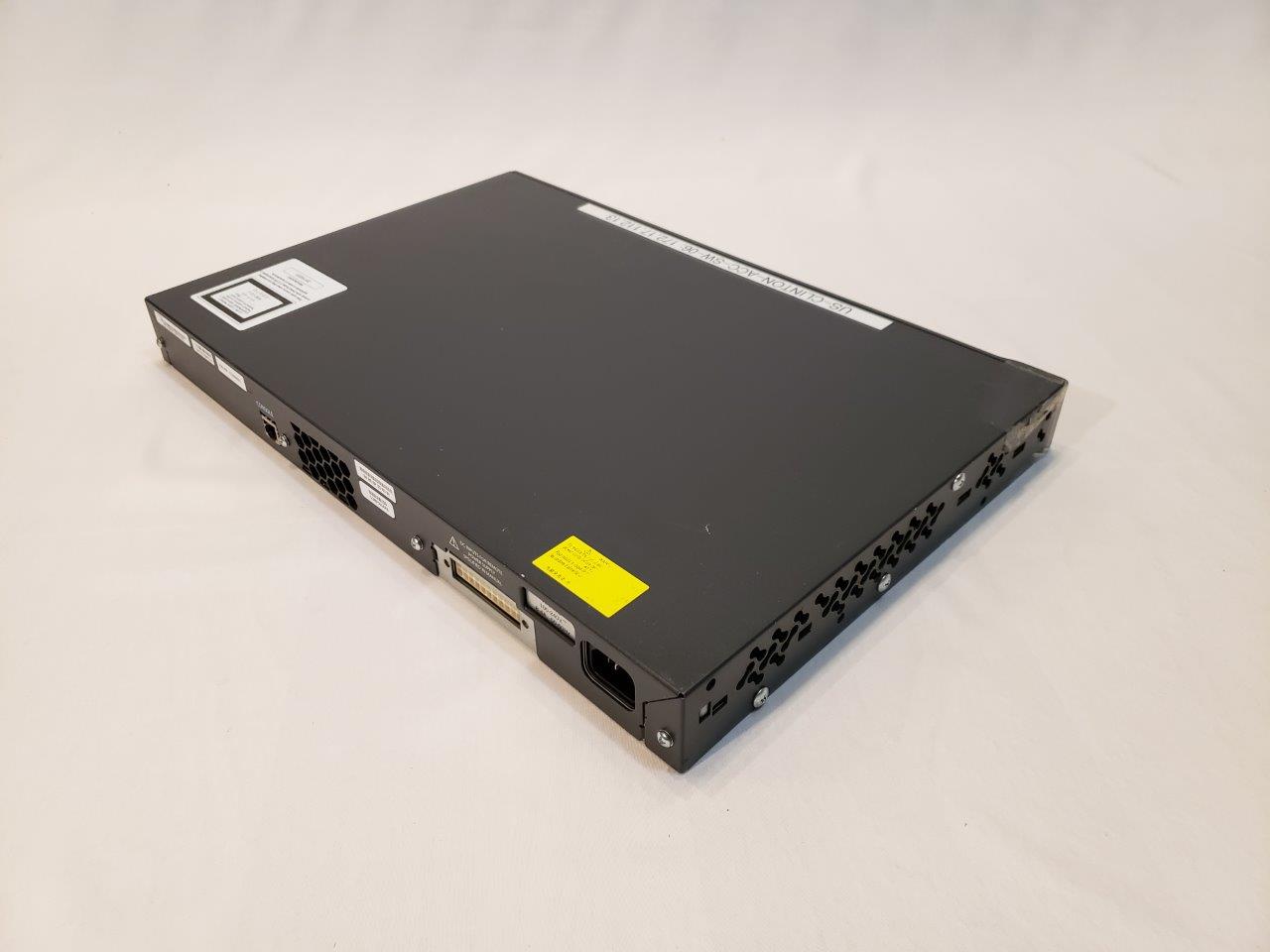

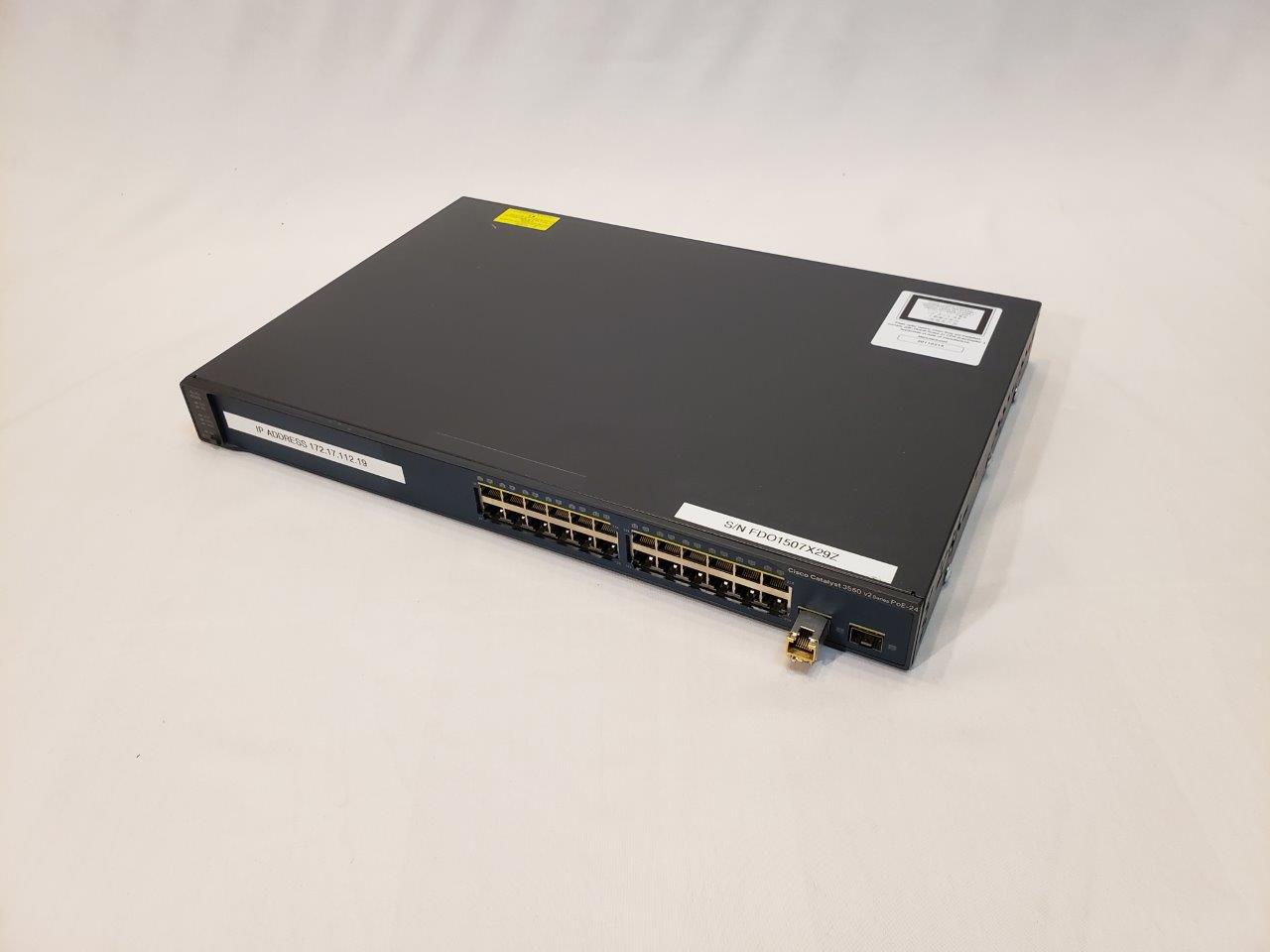

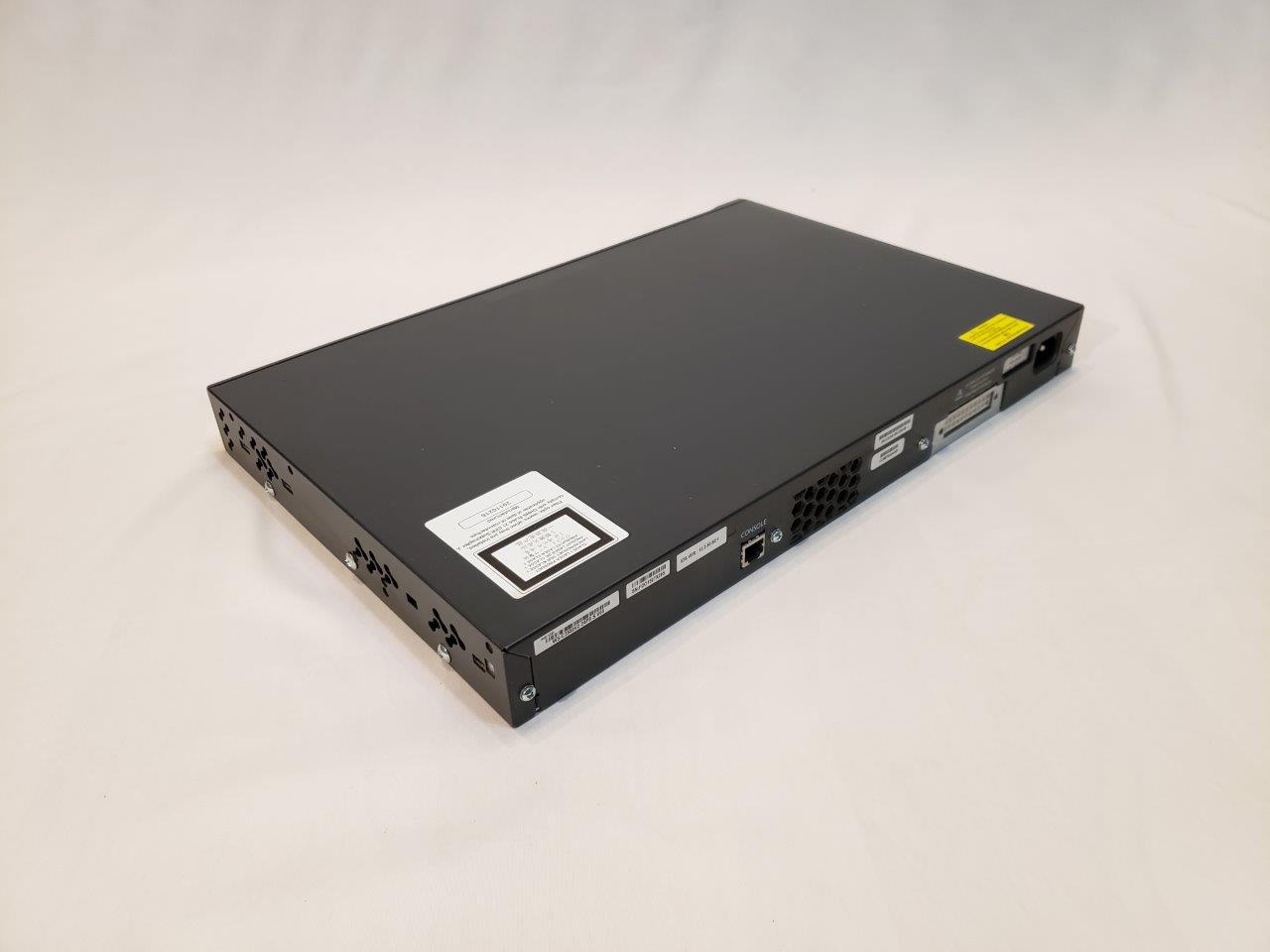

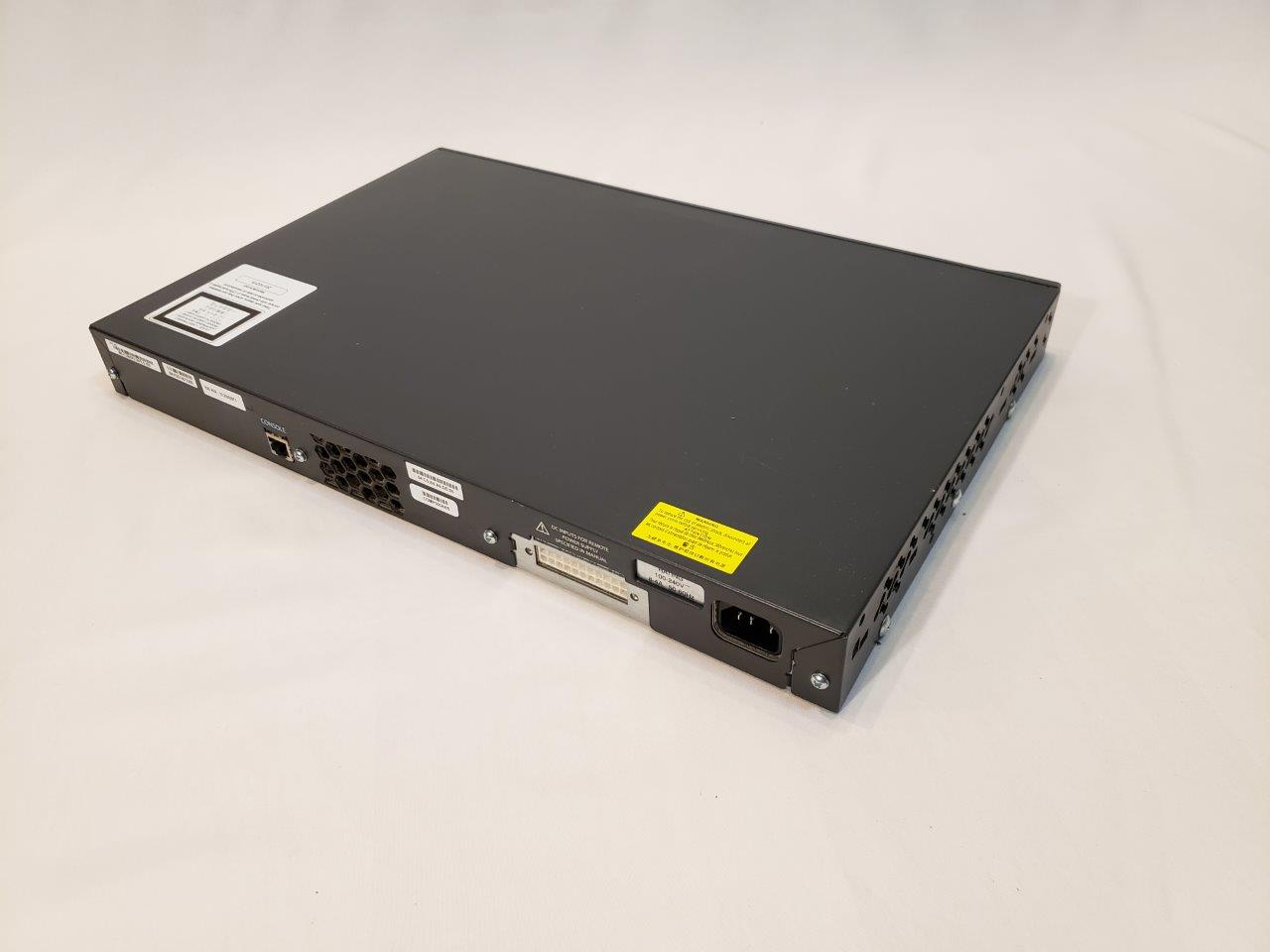

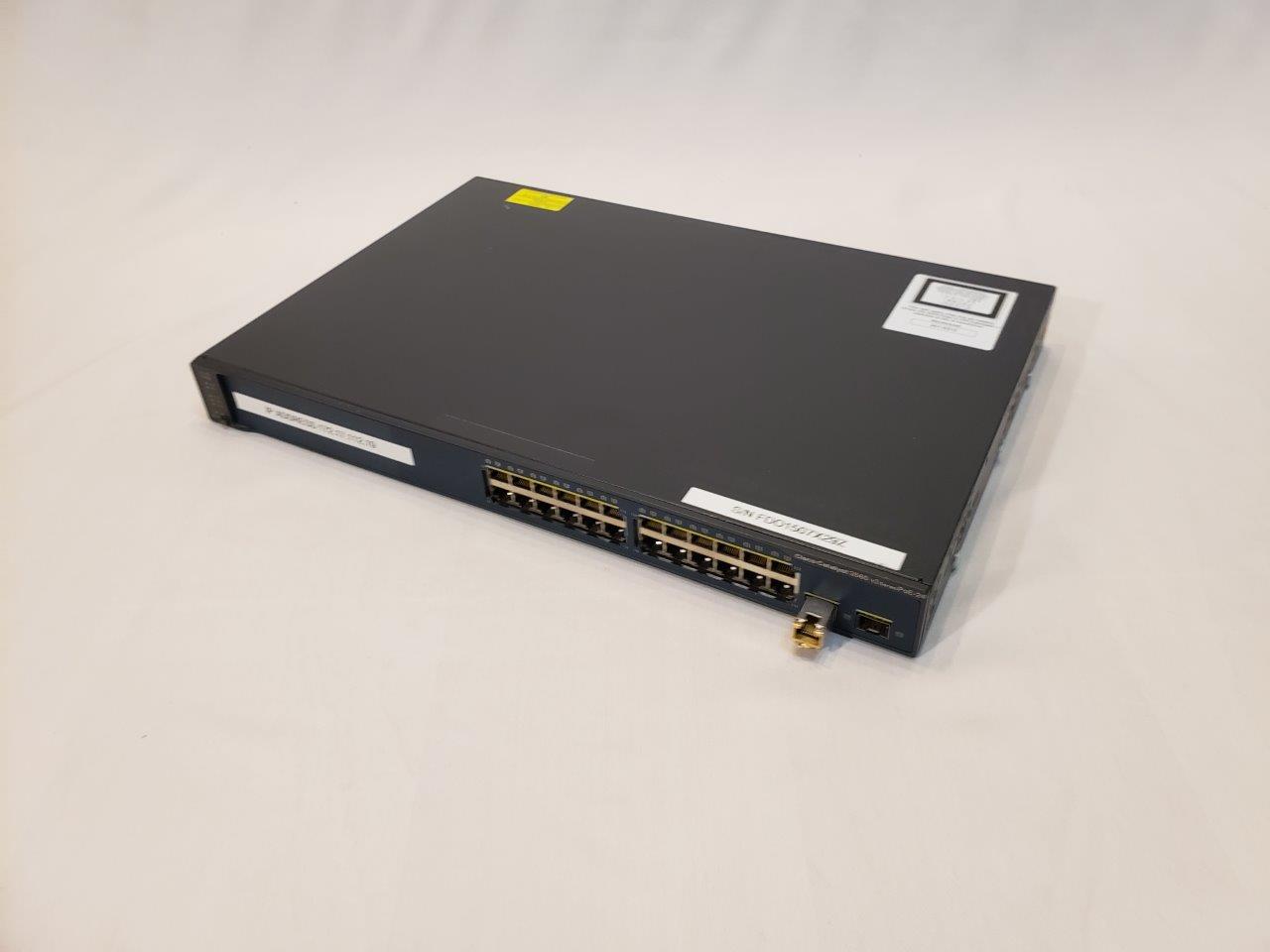

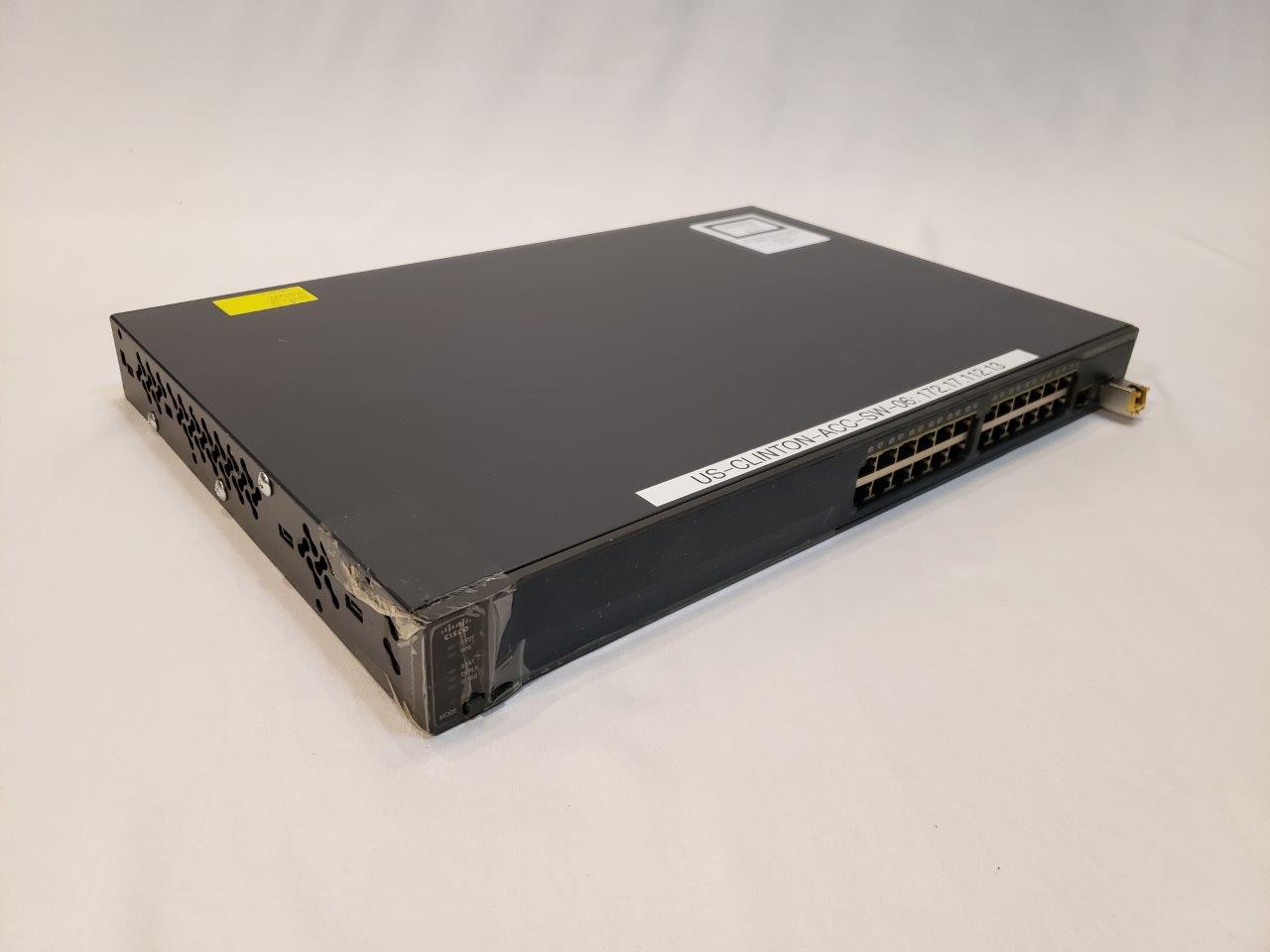

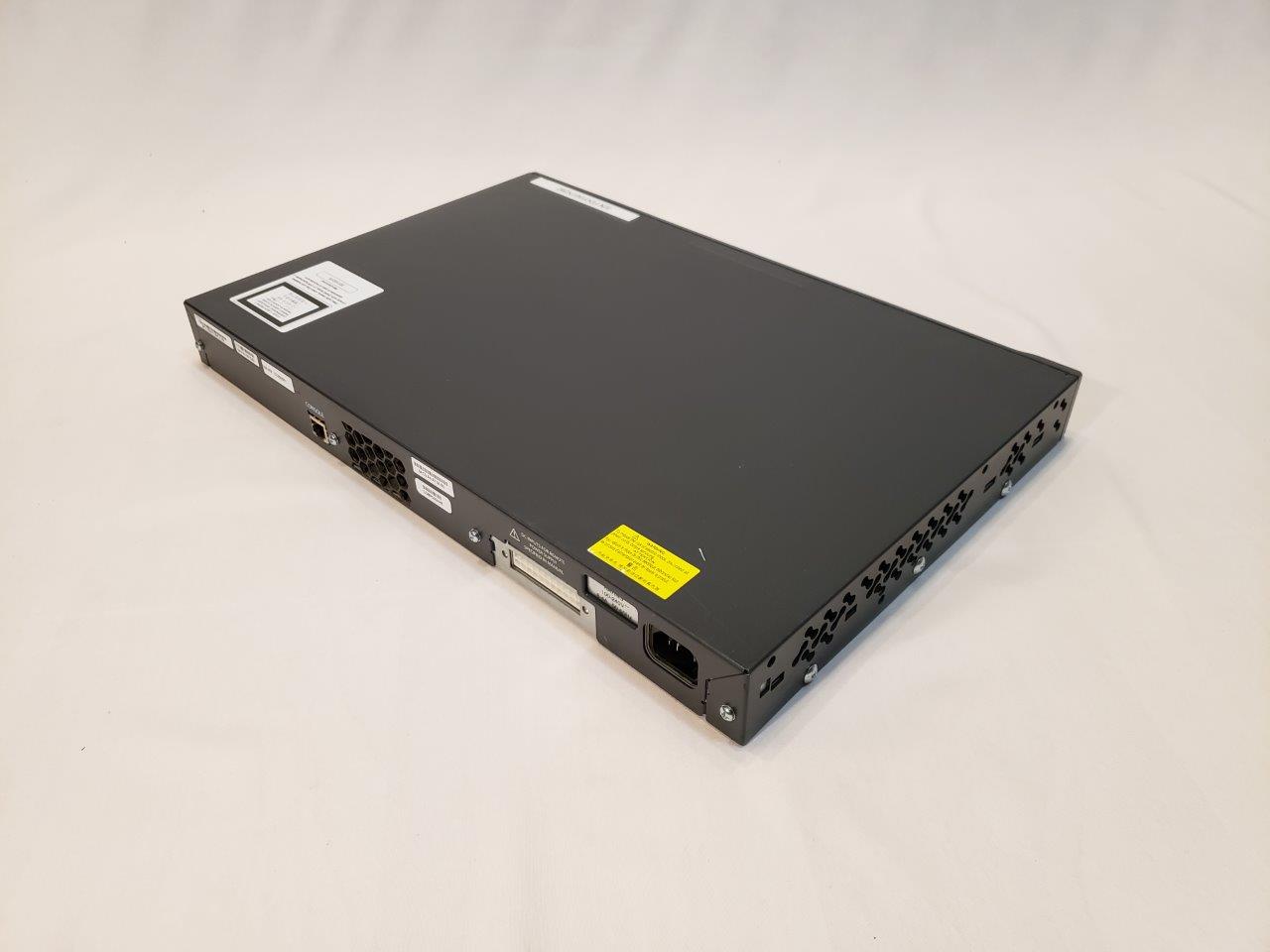

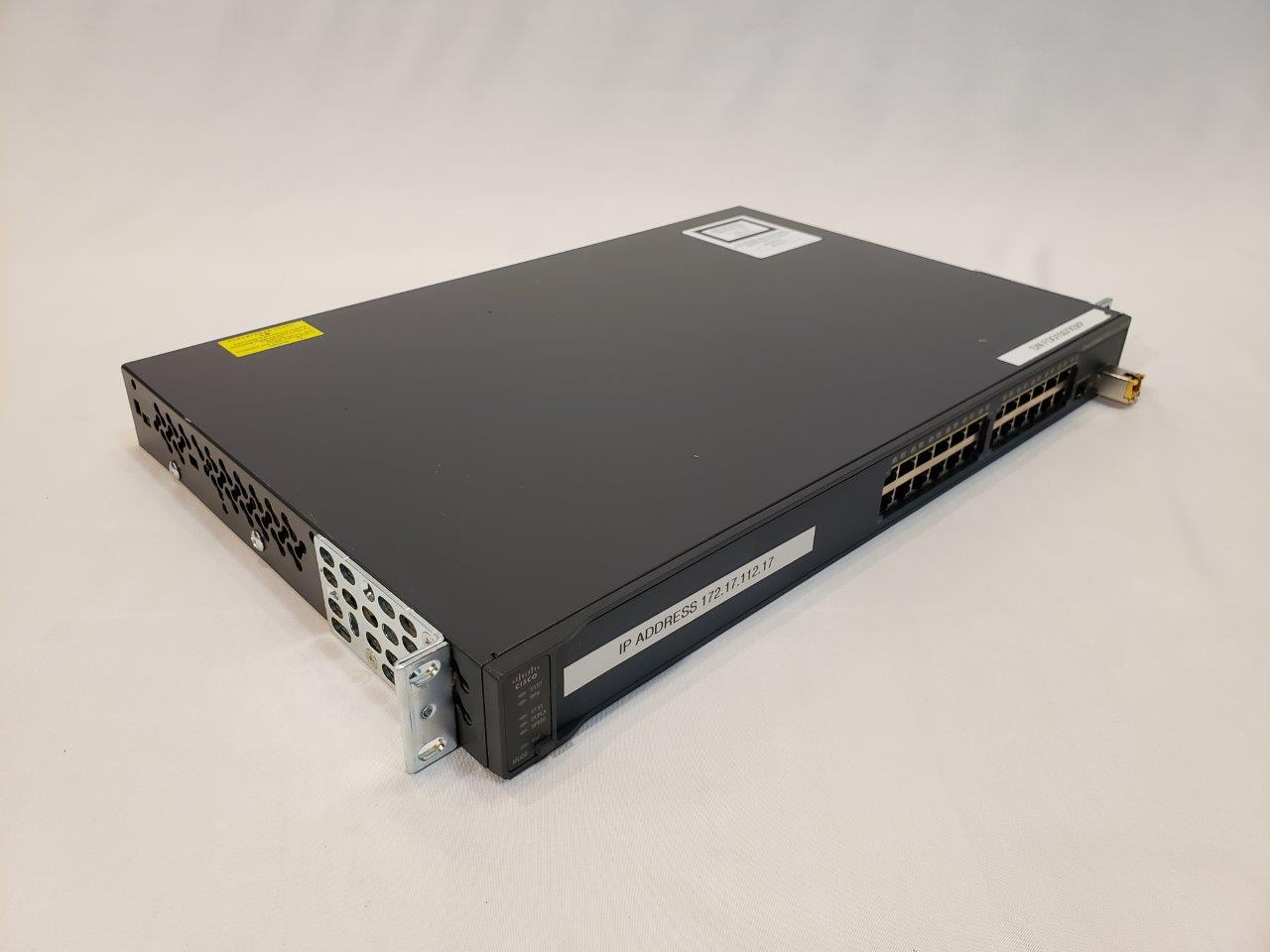

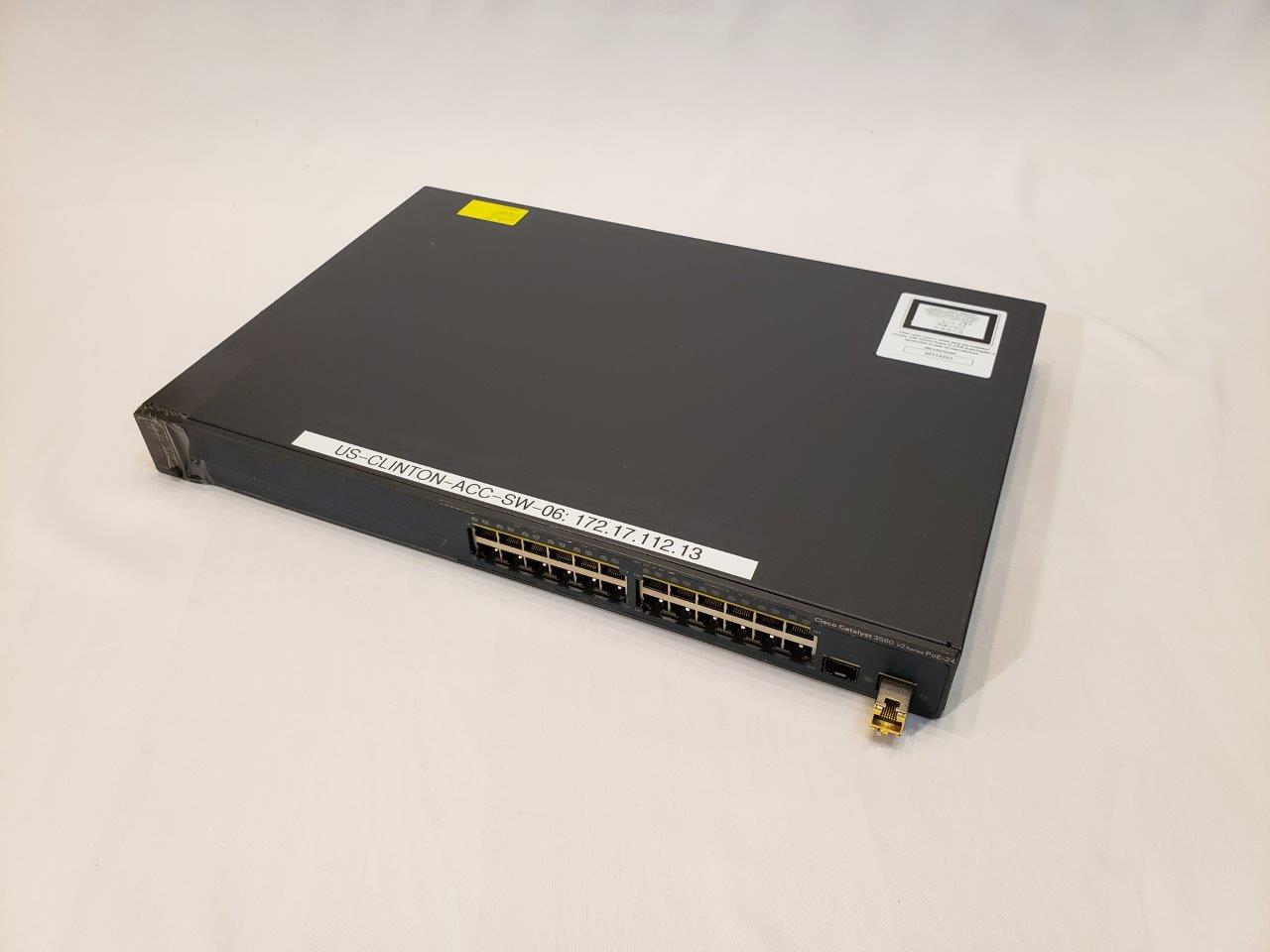

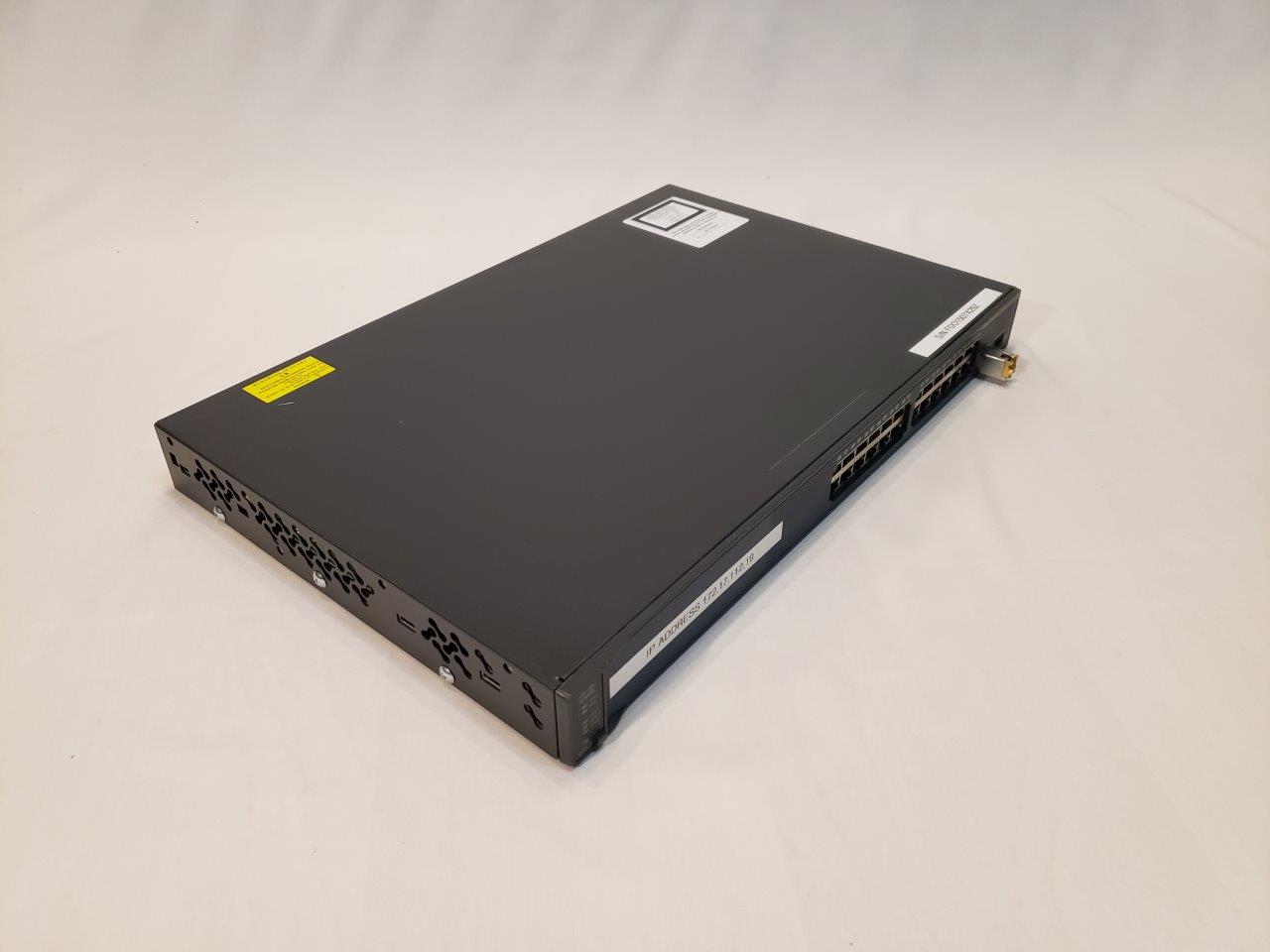

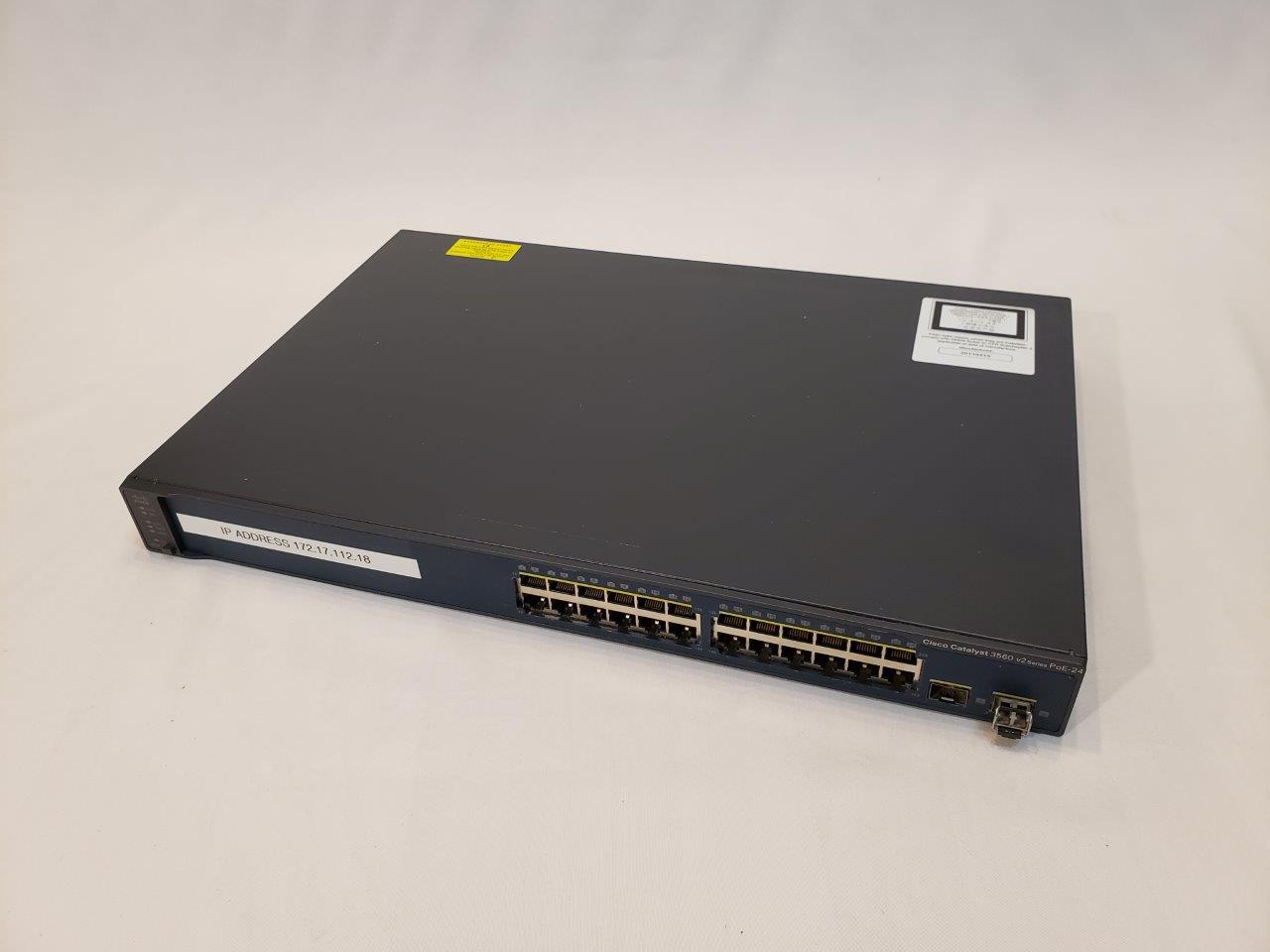

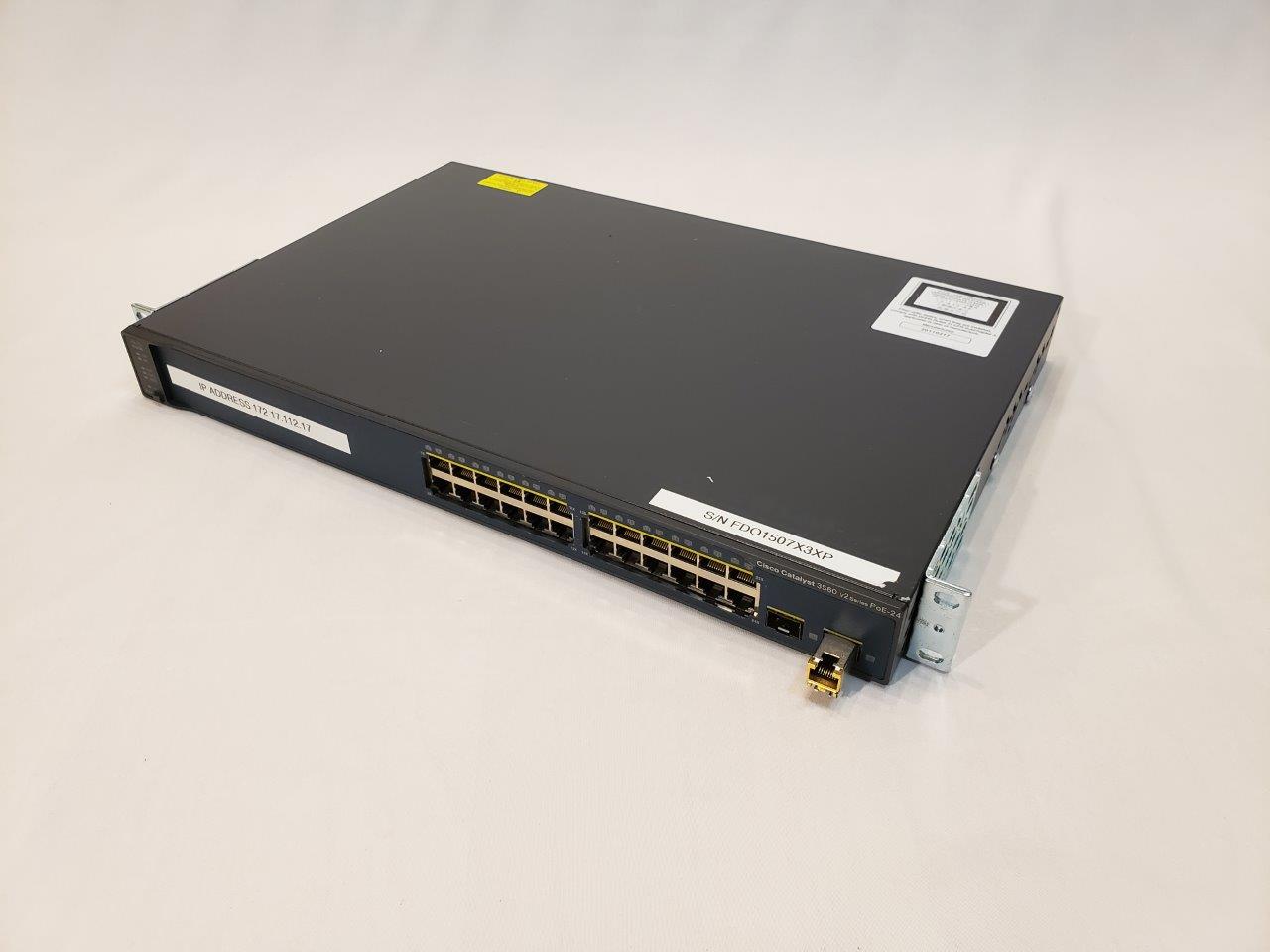

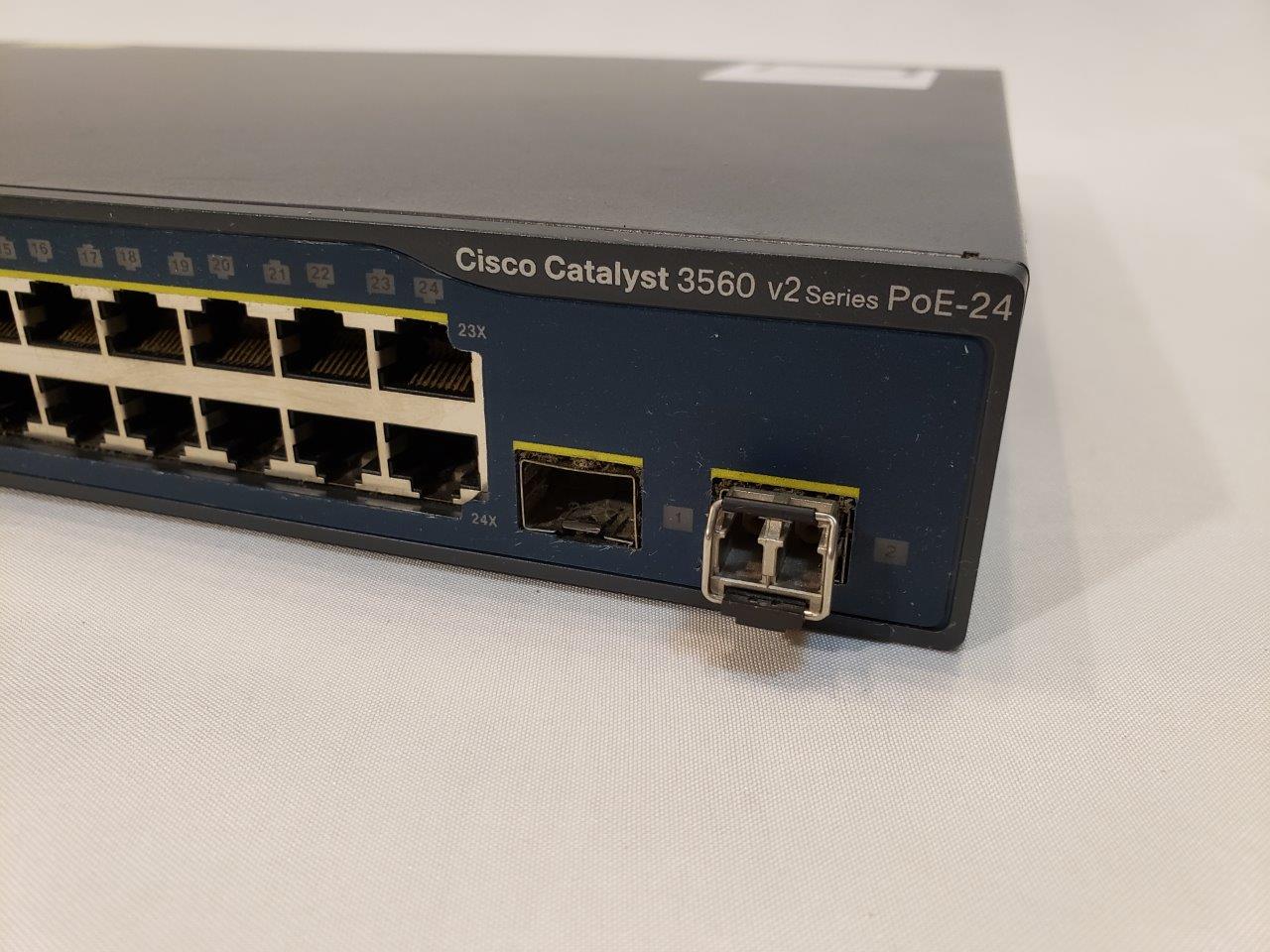

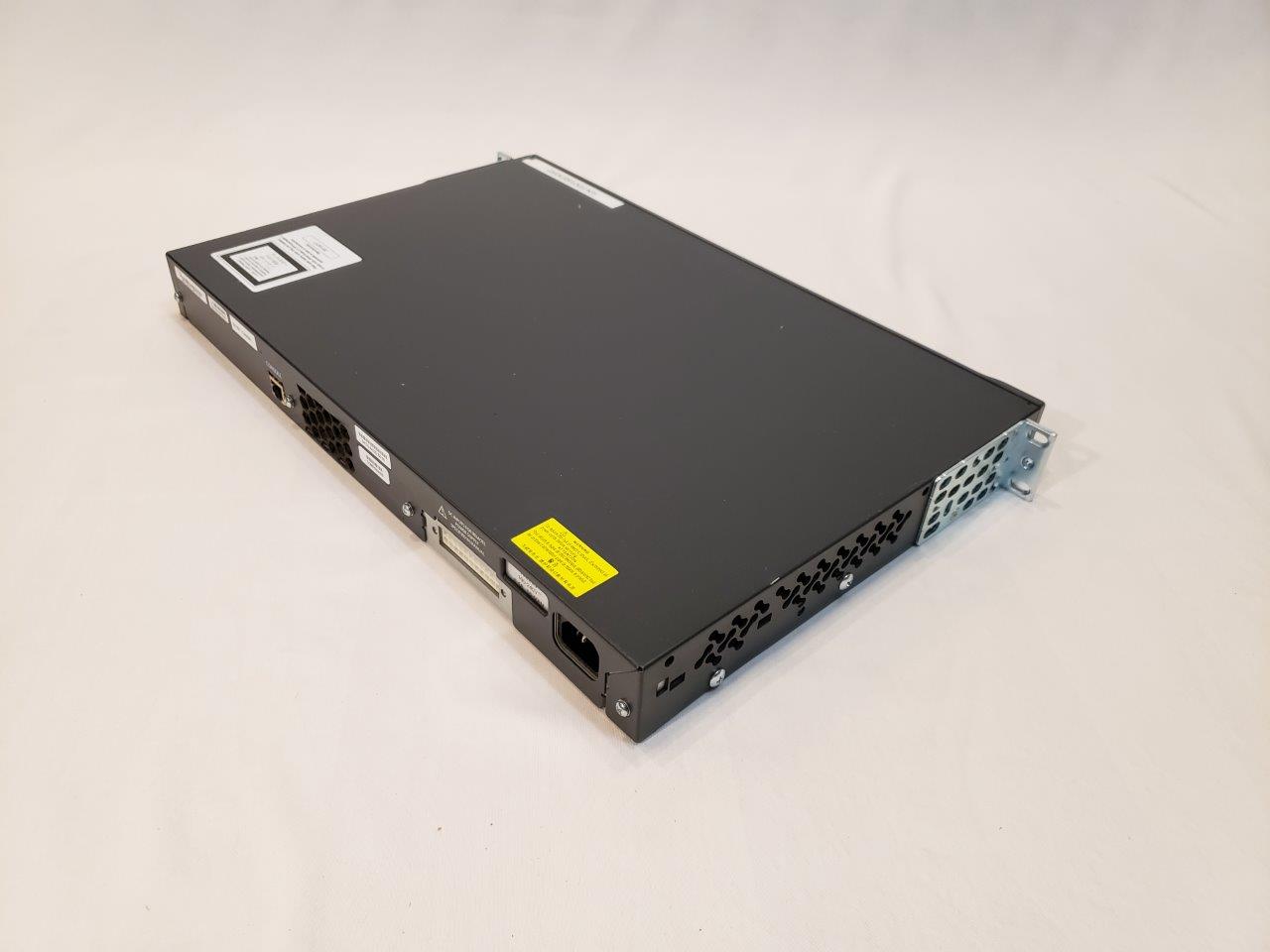

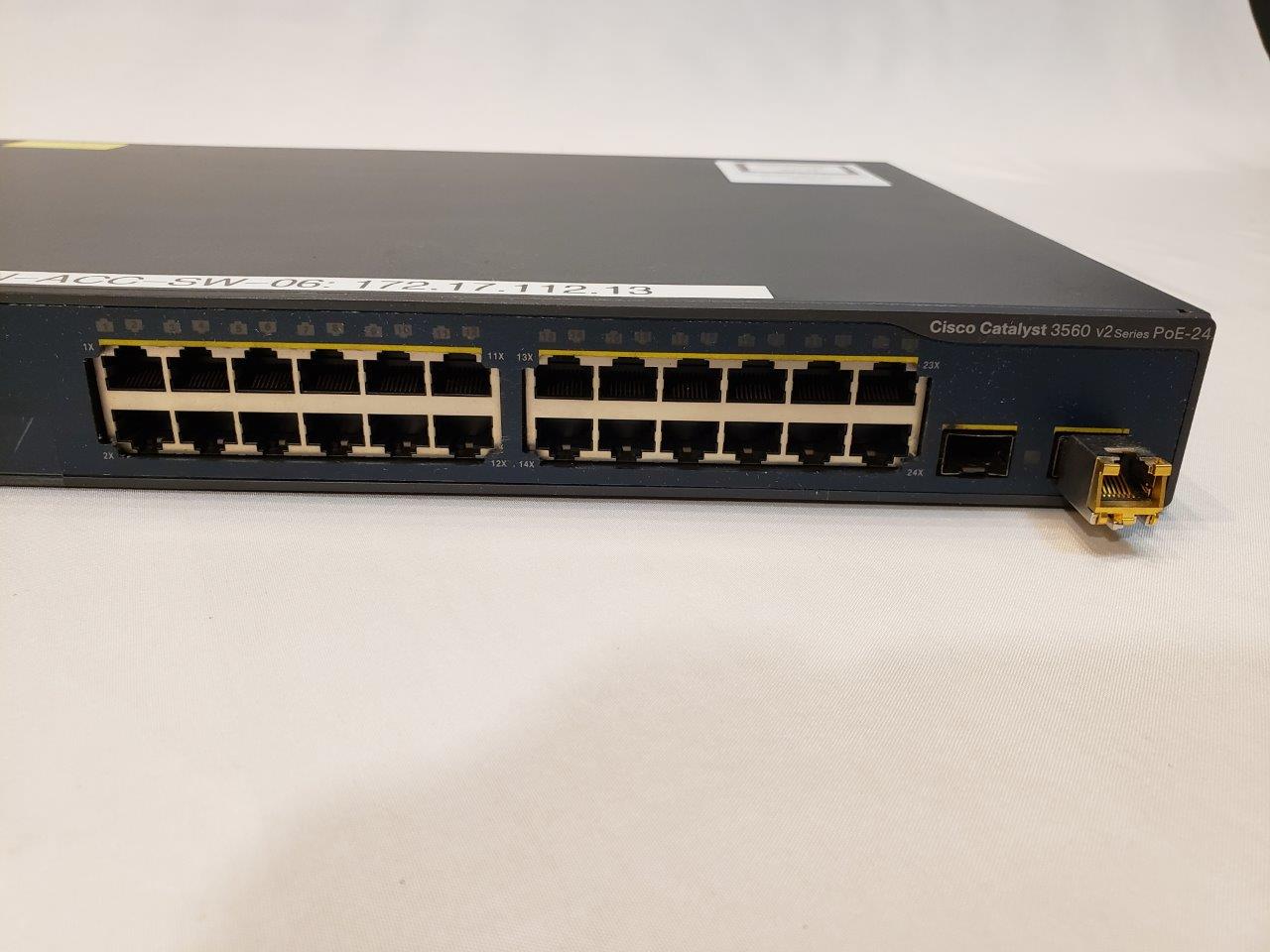

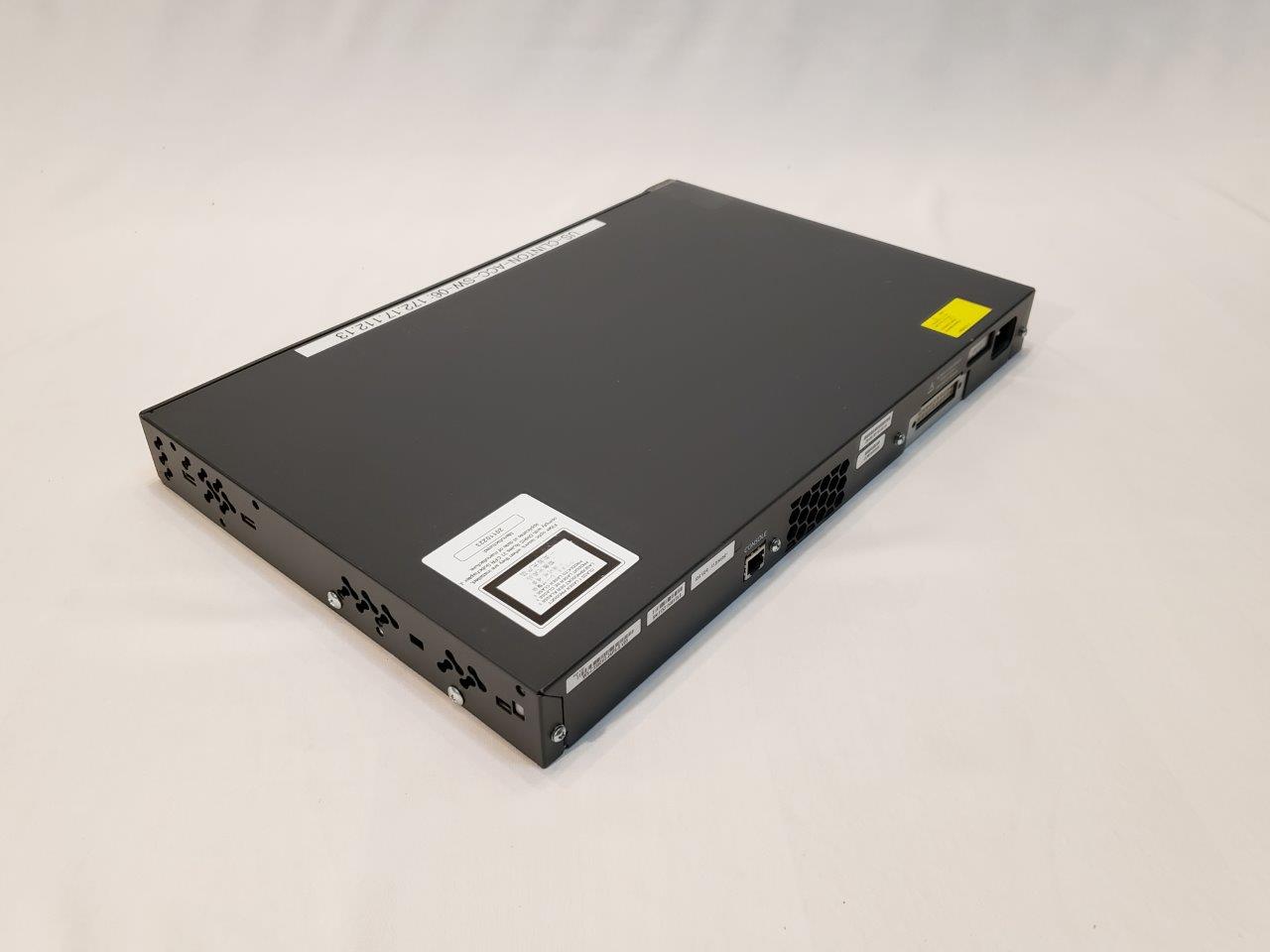

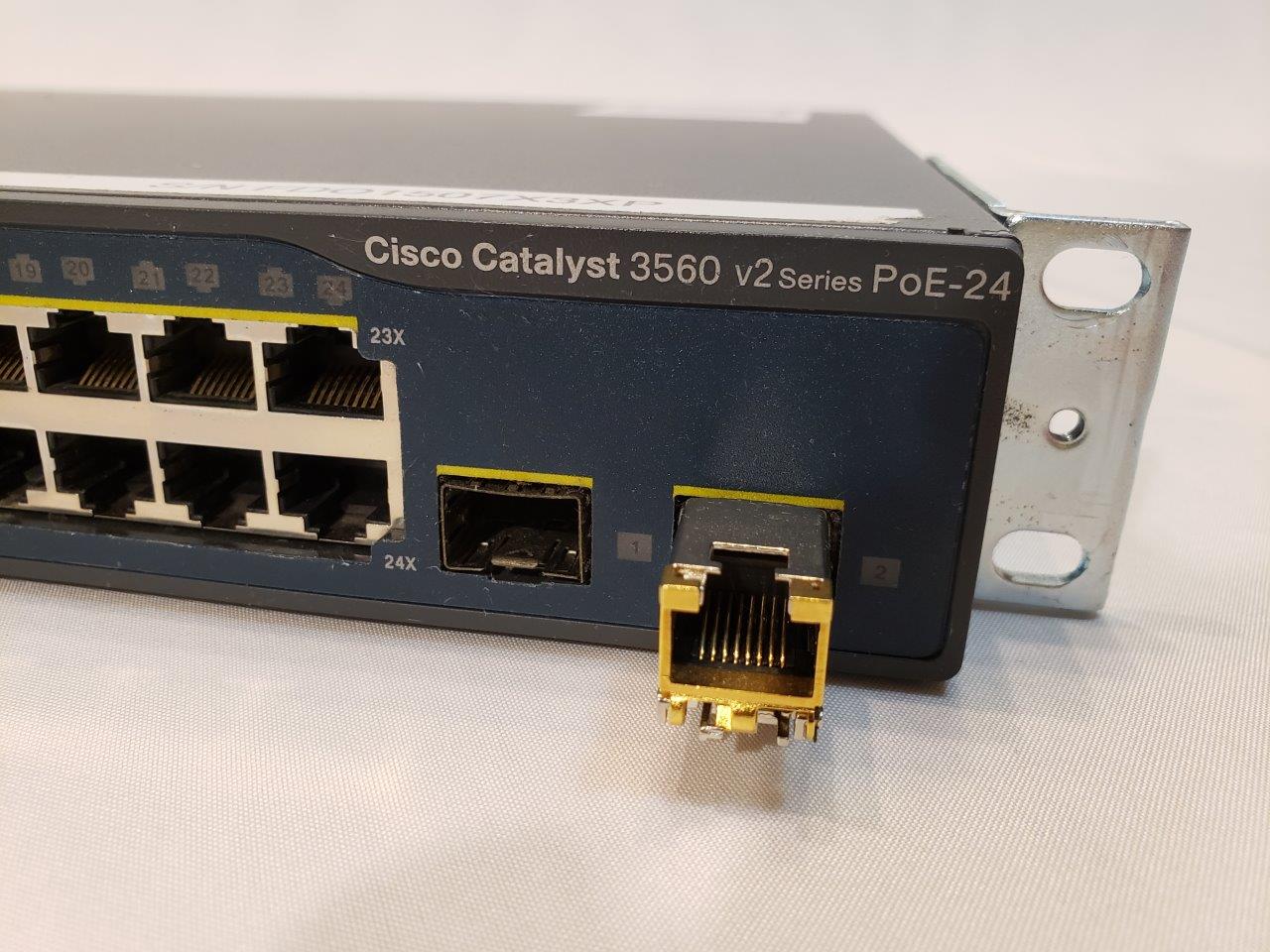

Cisco Catalyst 3560V2-24PS – switch – 24 ports


Sale!

Original price was: $524.00.Current price is: $80.00.

Out of stock

Categories: , Tags: ,

Description

Cisco Catalyst 3560V2-24PS – switch – 24 ports

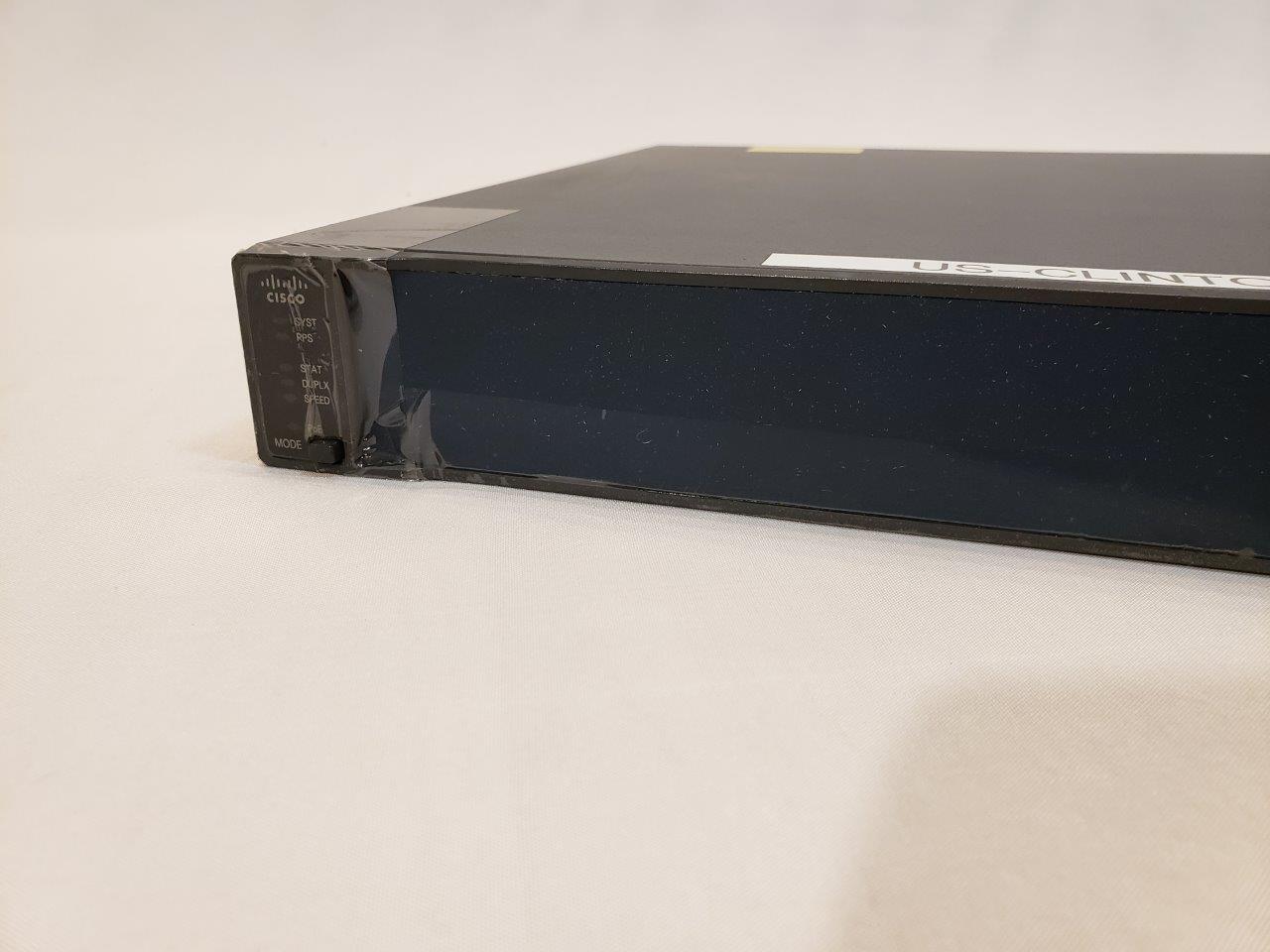

Condition: Used

The Cisco® Catalyst® 3560 v2 Series is the next genera-tion energy-efficient Layer-3 fast Ethernet switches. This new series of switches supports Cisco EnergyWise technology, which enables companies to measure and manage power consumption of network infrastructure and network-attached devices, thereby reducing their energy costs and their carbon footprint. The Cisco Catalyst 3560 v2 Series consumes less power than its predecessors and is the ideal access layer switch for enterprise, retail, and branch-office environments, as it maximizes productivity and investment protection by enabling a unified network for data, voice, and video.

Price for 1 switch. 3 switches are available.
Specification
General:
Subtype: Fast Ethernet

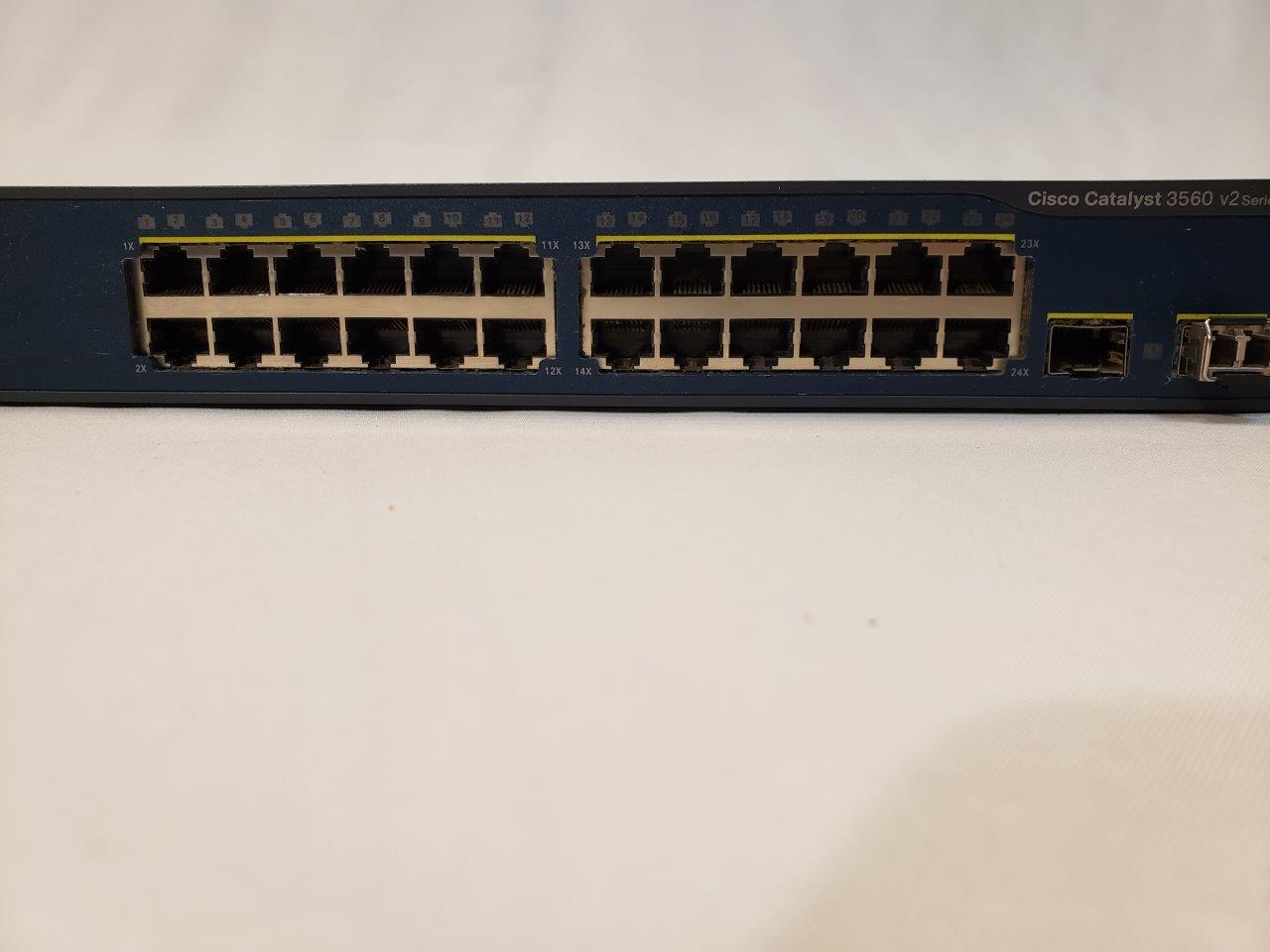

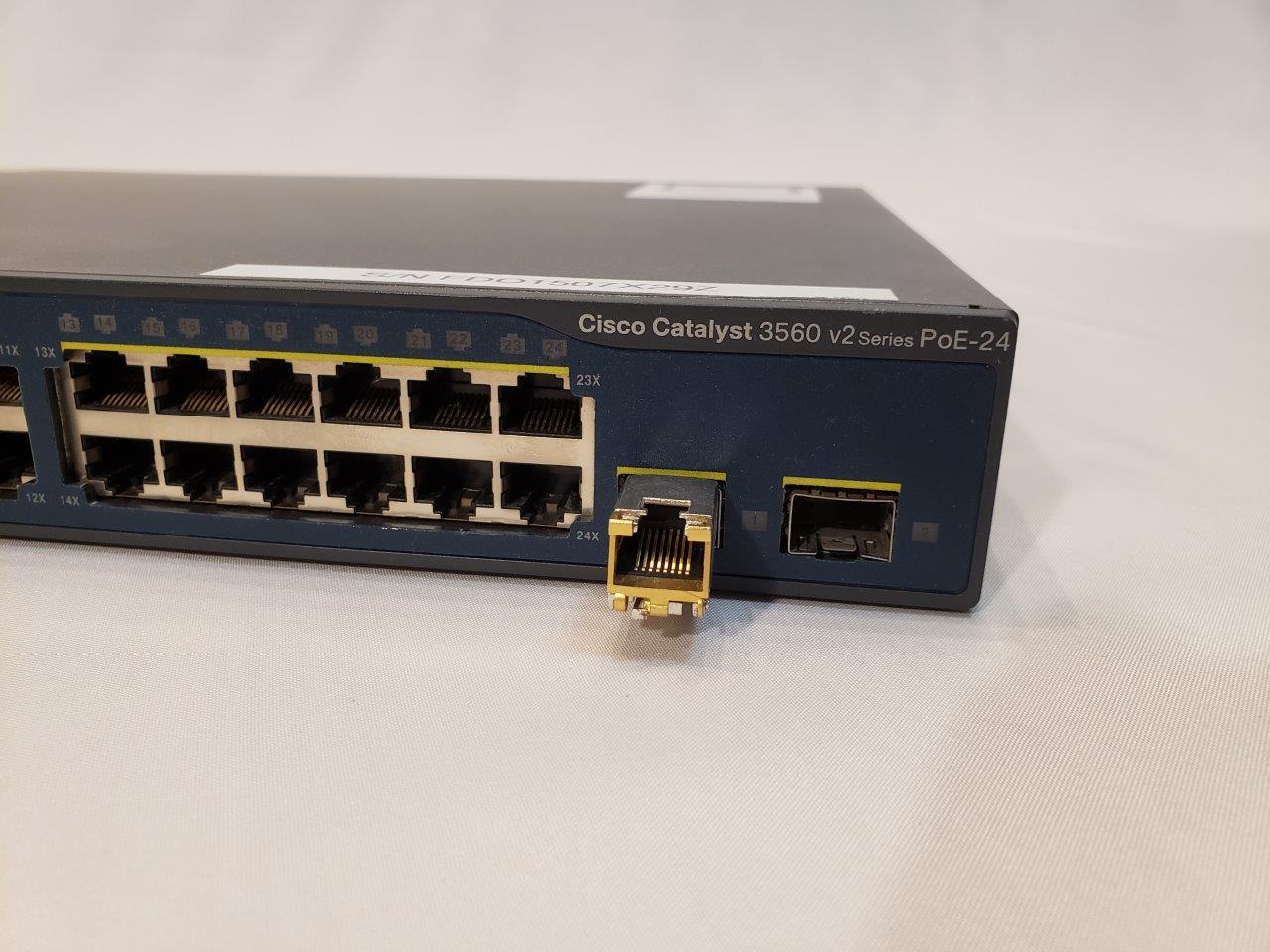

Ports: 24 x 10/100 (PoE) + 2 x SFP
Power Over Ethernet (PoE): PoE
Authentication Method: Kerberos, RADIUS, Secure Shell v.2 (SSH2), TACACS+
Flash Memory: 32 MB flash
MAC Address Table Size: 12K entries
Authentication Method: Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Power Over Ethernet (PoE): PoE

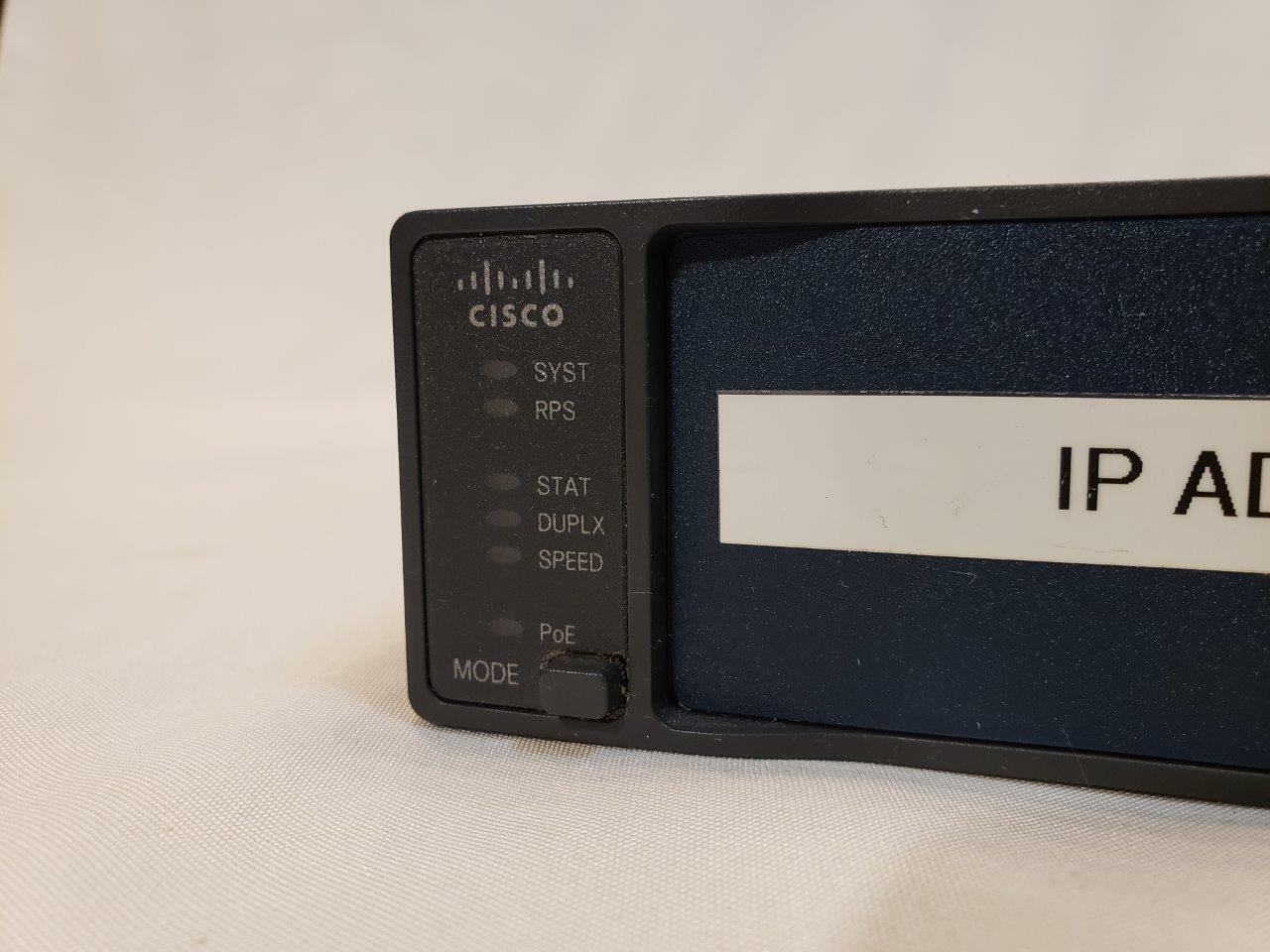

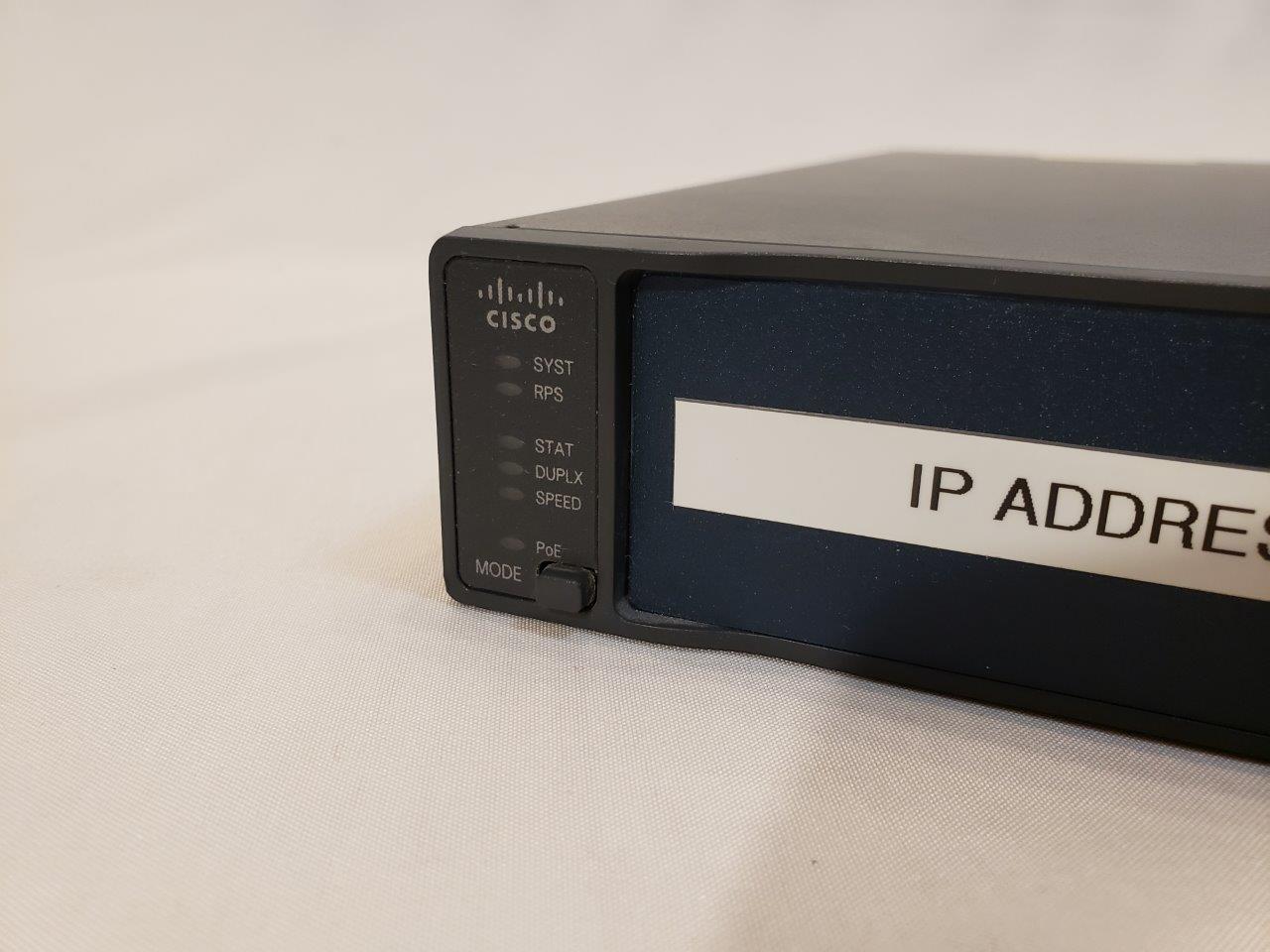

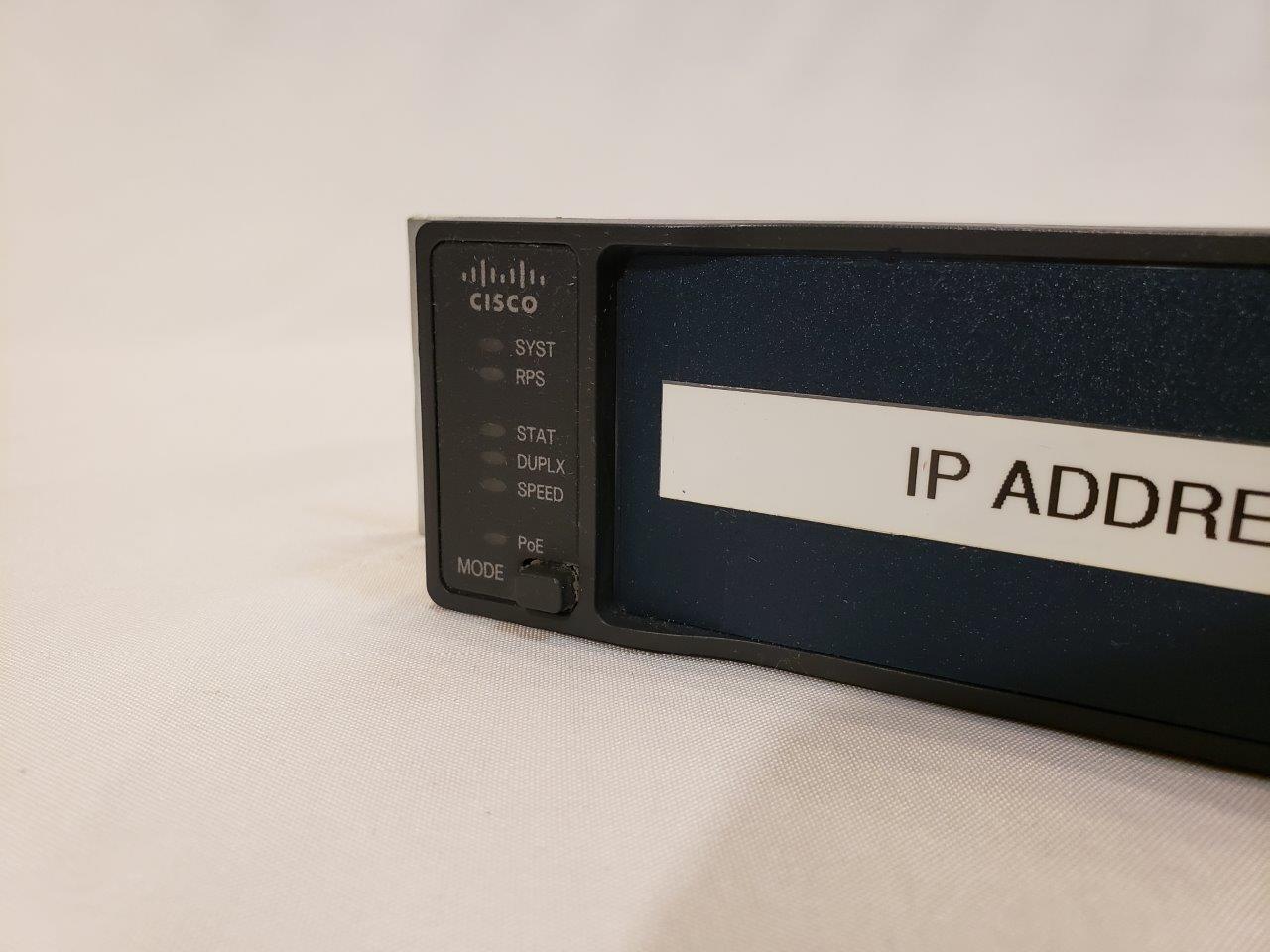

Status Indicators: Port status, port transmission speed, port duplex mode, system, RPS (Redundant Power Supply), link/activity
Routing Protocol: RIP-1, RIP-2, static IP routing
Manufacturer: Cisco
Camera
Installed Size: 32 MB
Expansion / Connectivity

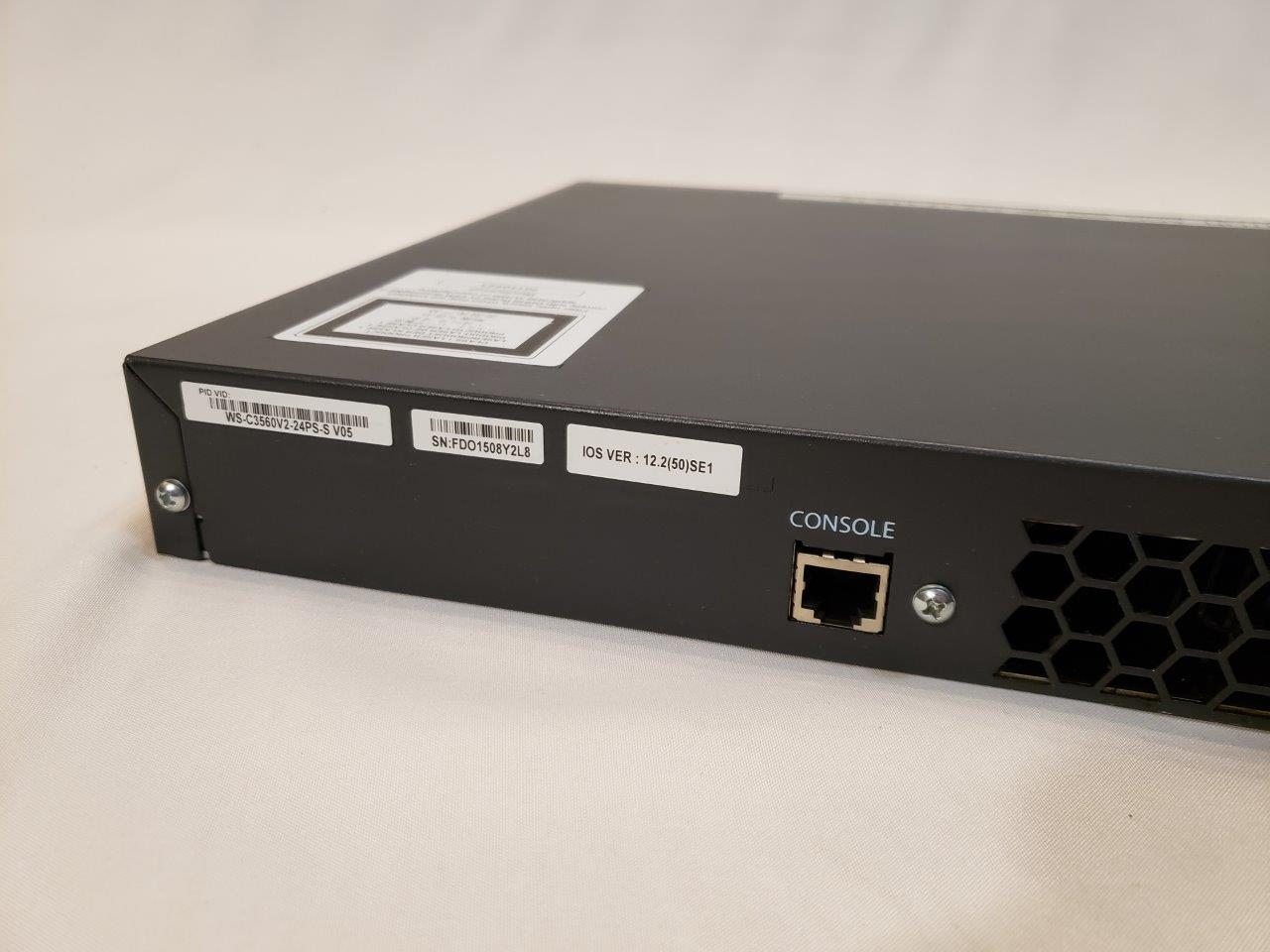

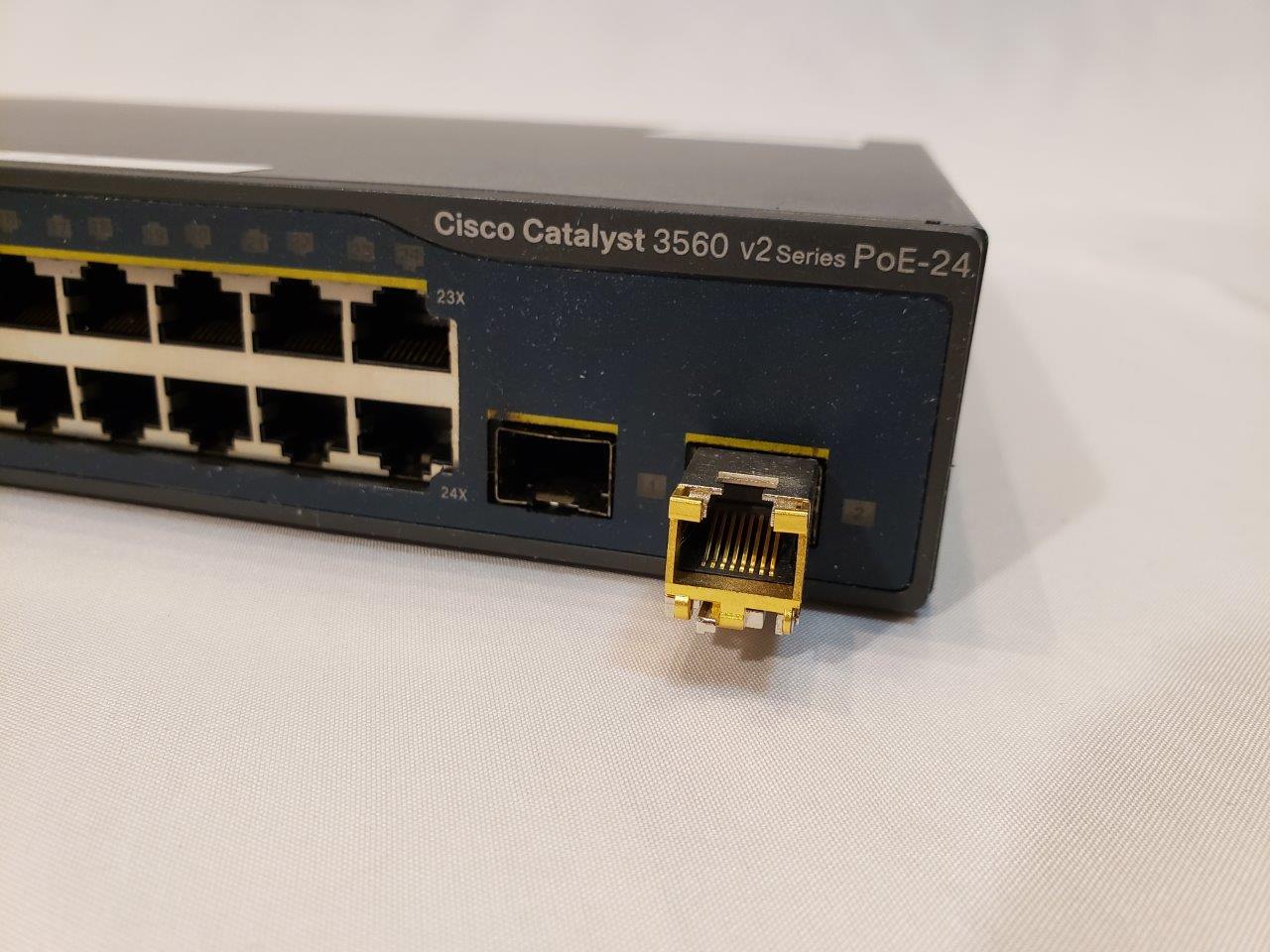

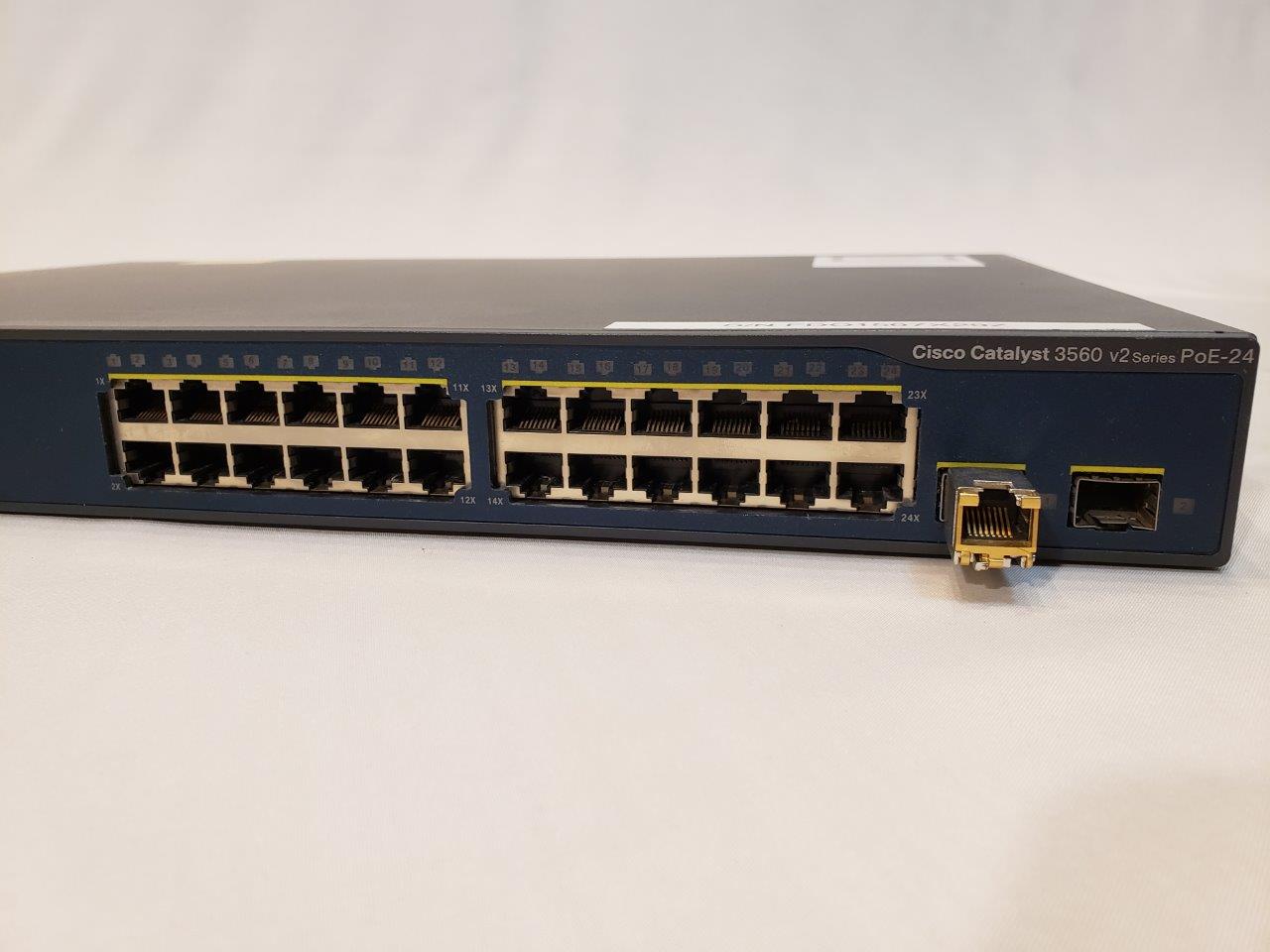

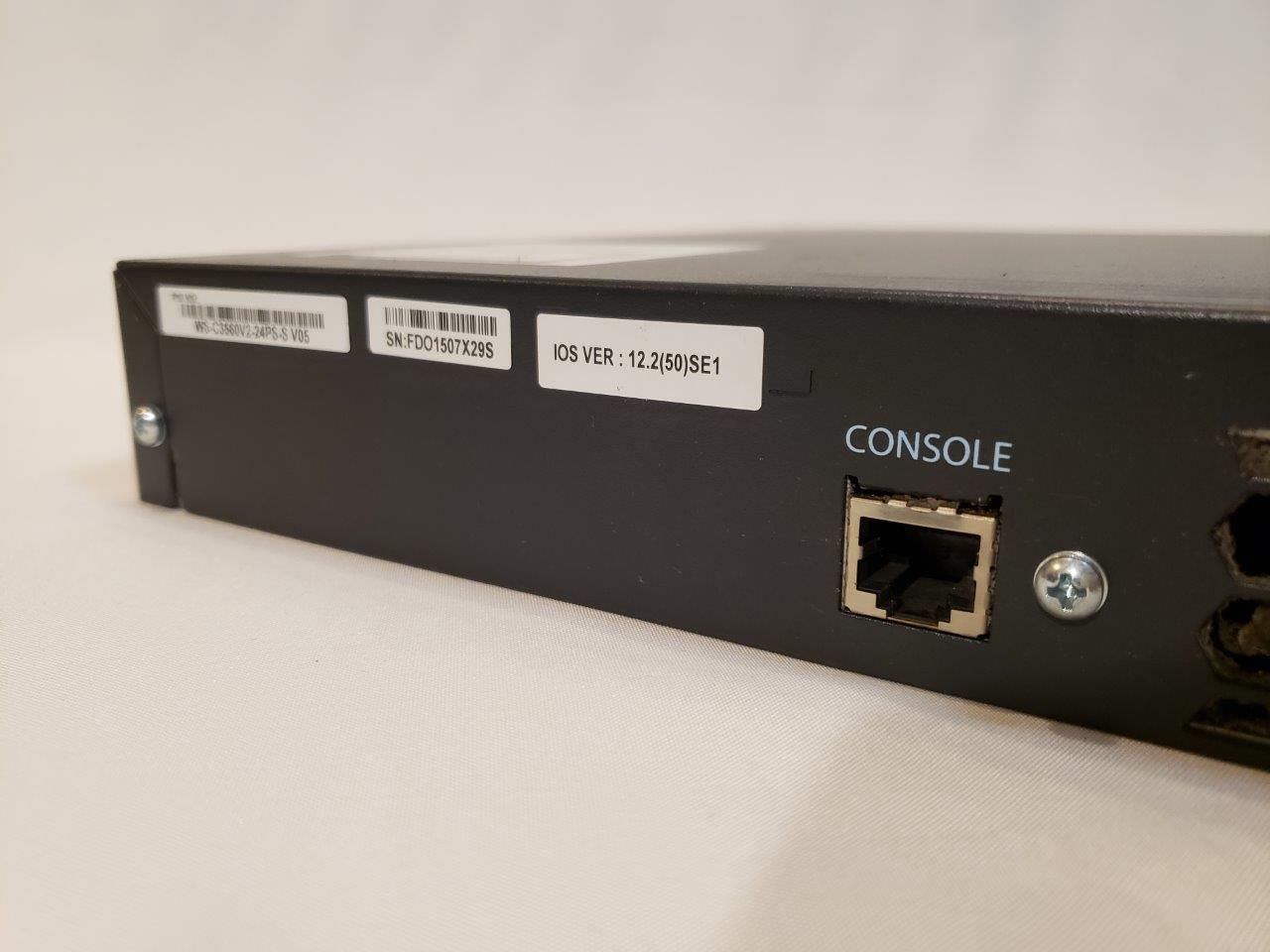

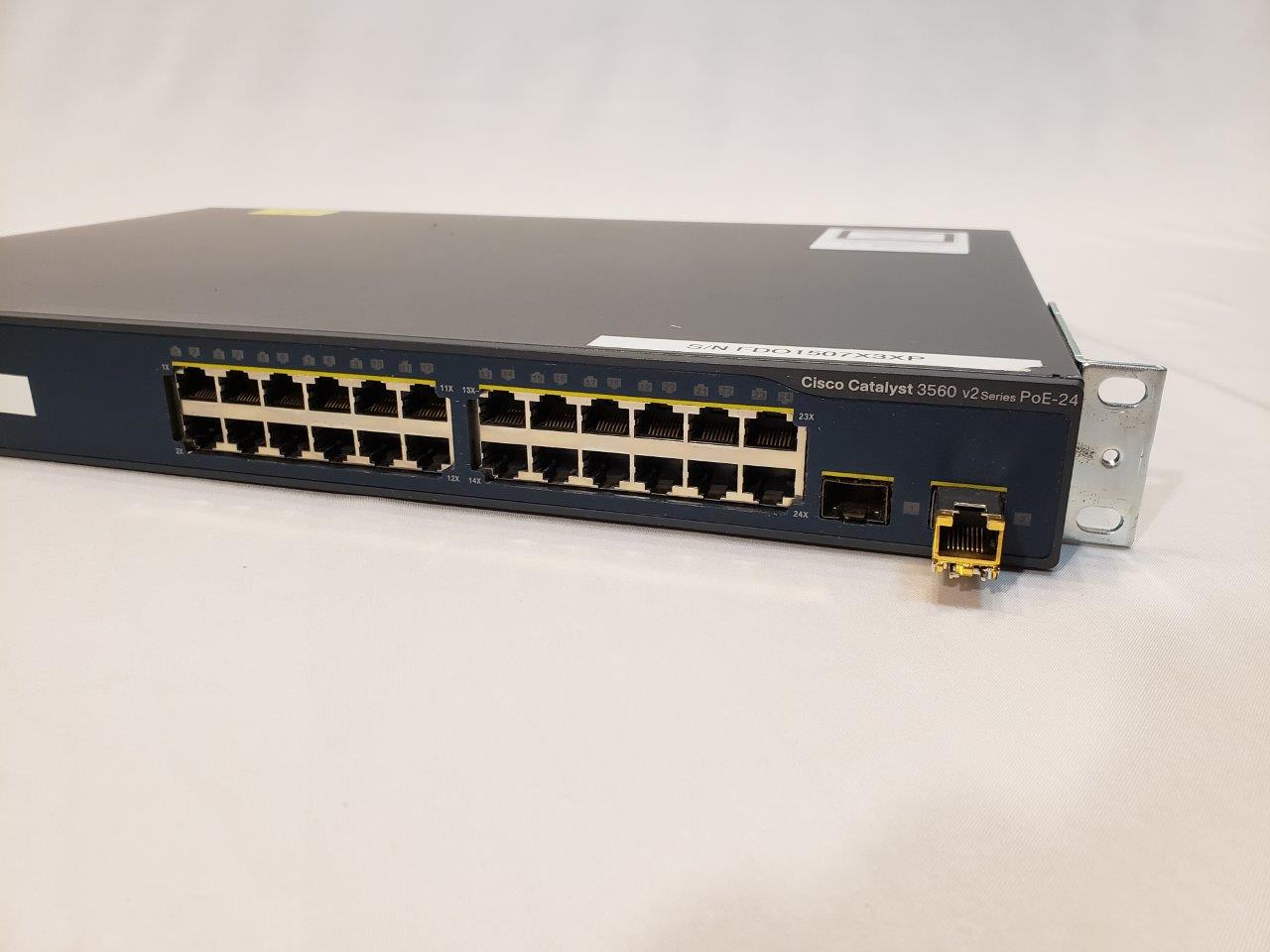

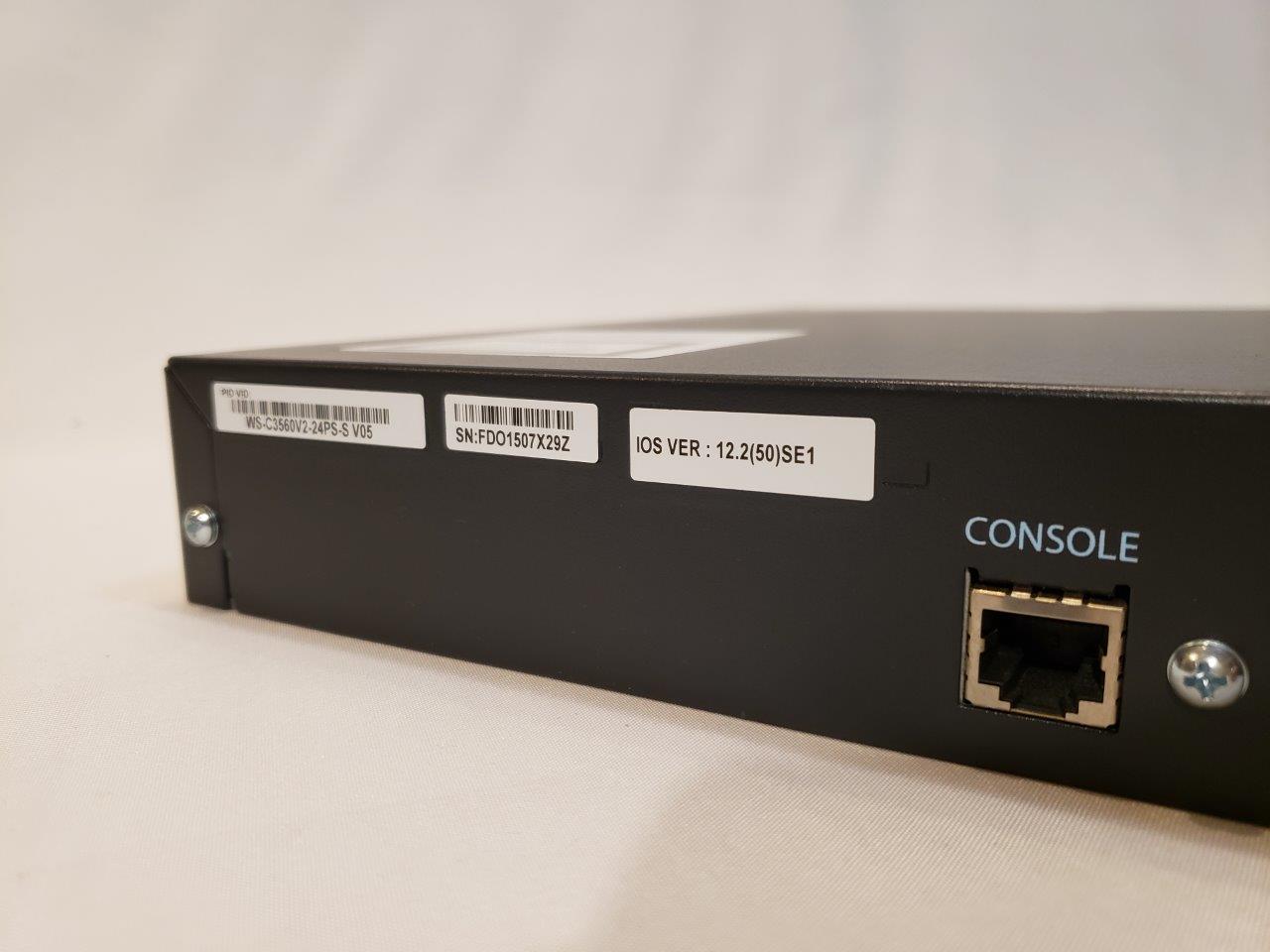

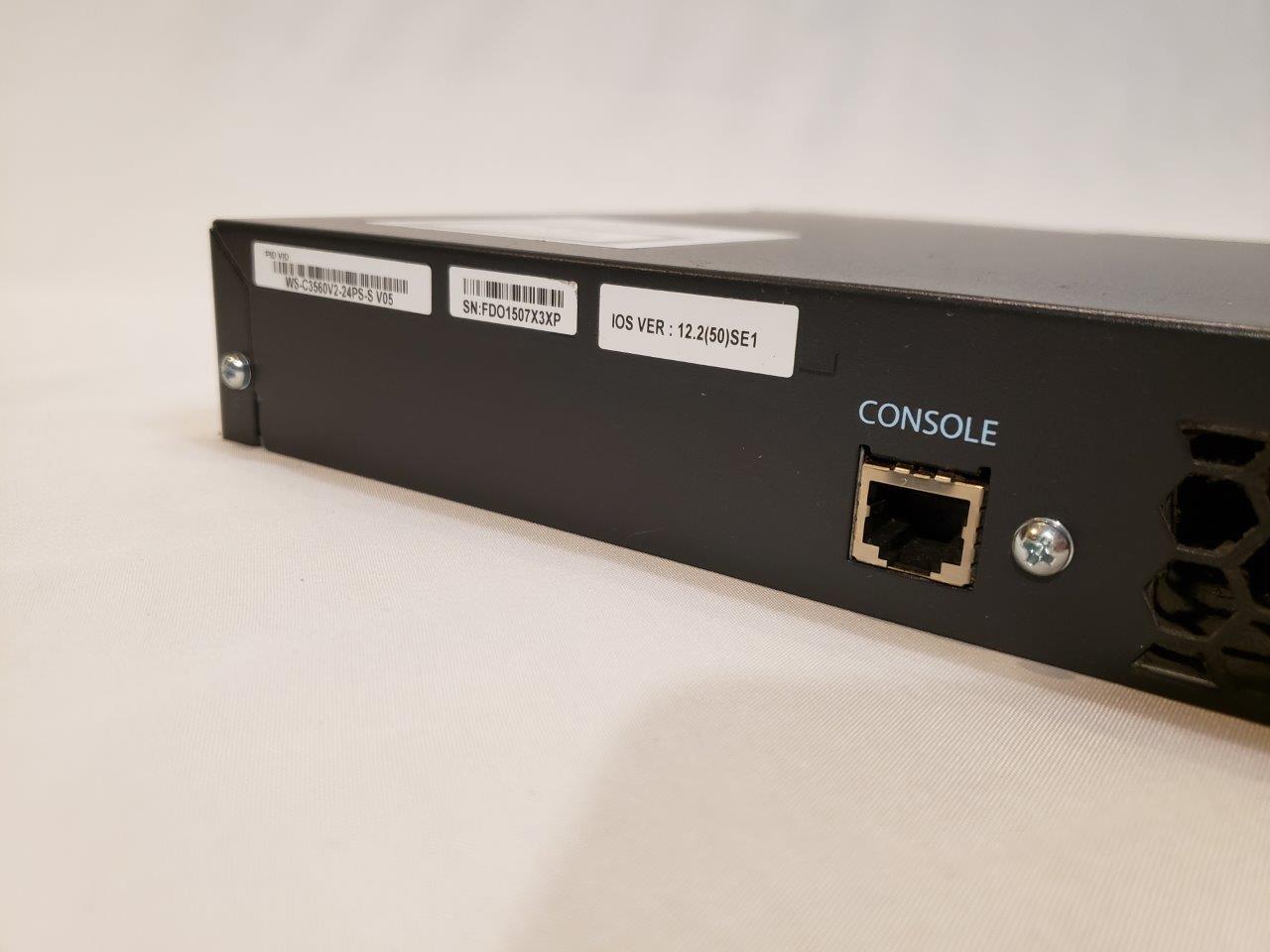

Interfaces: 24 x 100Base-TX RJ-45 PoE; 1 x console RJ-45 management; 2 x SFP (mini-GBIC)

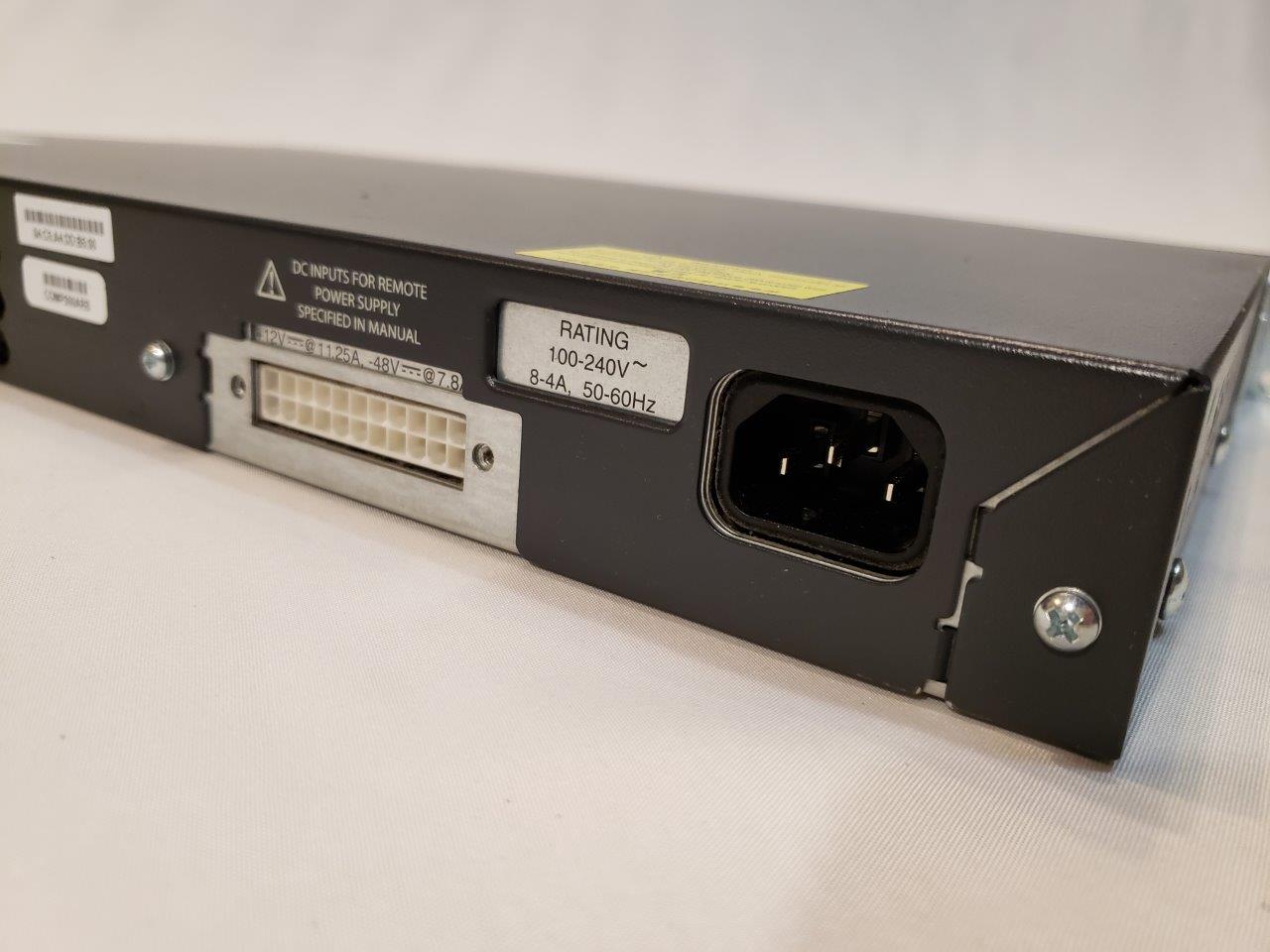

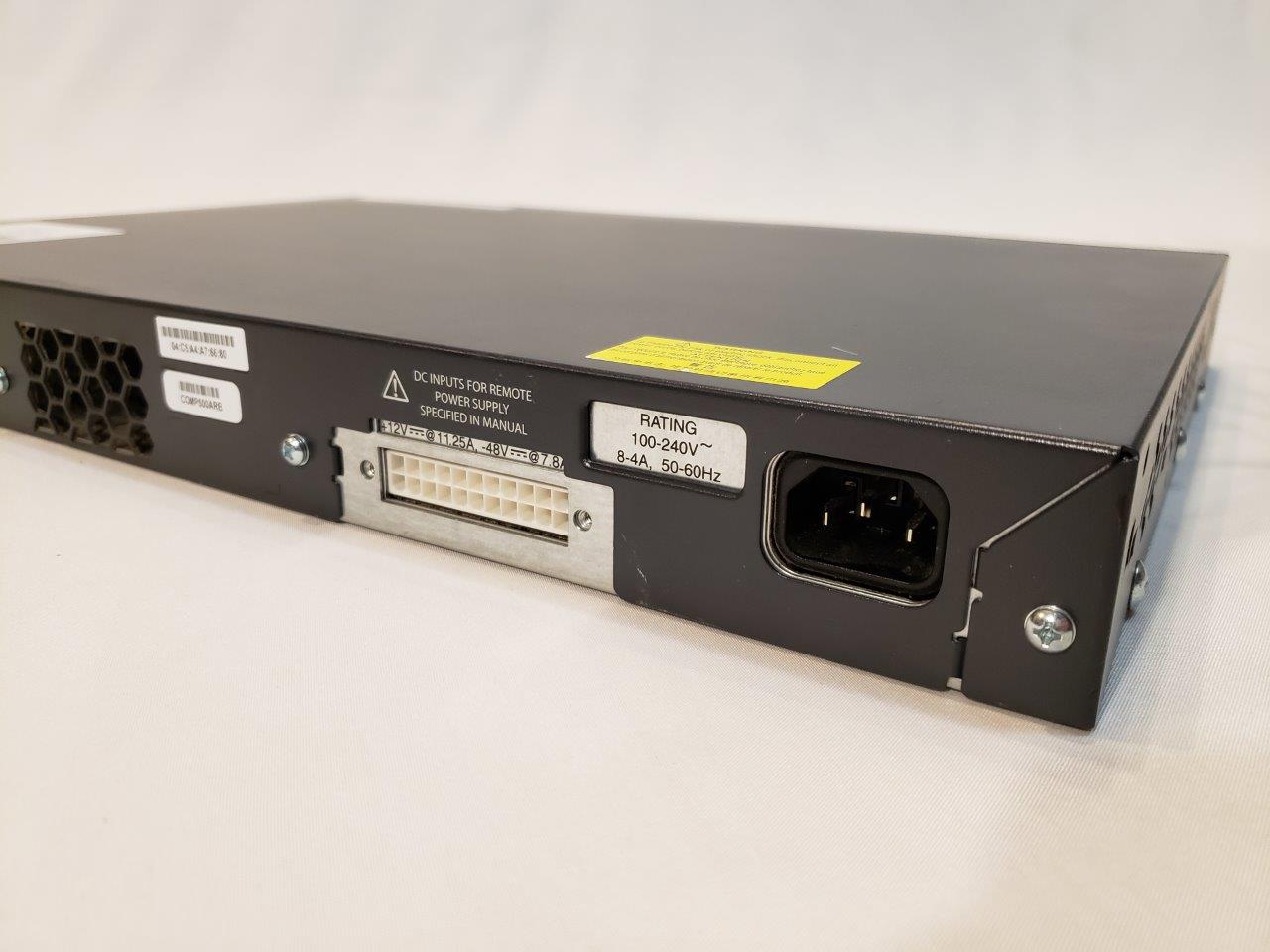

Power Device
Nominal Voltage: AC 120/230 V
Frequency Required: 50/60 Hz
Type: internal power supply
Networking
Cabling Type: Ethernet 100Base-TX, Ethernet 10Base-T
MAC Address Table Size: 12K entries
Subcategory: network hubs and switches
Subtype: Fast Ethernet
Form Factor: rack-mountable
Type: Switch
Connectivity Technology: wired
Advanced Switching: Layer 3
Features: Access Control List (ACL) support, DHCP snooping, DHCP support, Dynamic ARP Inspection (DAI), Dynamic Trunking Protocol (DTP) support, IGMP snooping, IPv6 support, Intrusion Detection System (IDS), Jumbo Frames support, MAC address filtering, Port Aggregation Protocol (PAgP) support, Quality of Service (QoS), Spanning Tree Protocol (STP) support, Time Domain Reflectometry (TDR), Trivial File Transfer Protocol (TFTP) support, VLAN support, auto-negotiation, auto-sensing per device, auto-uplink (auto MDI/MDI-X), layer 3 switching, load balancing
Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ports Qty: 24
Manageable: Yes
Routing Protocol: RIP-1, RIP-2, static IP routing
Switching Protocol: Ethernet
Remote Management Protocol: RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet
Communication Mode: full-duplex, half-duplex
Power Over Ethernet (PoE): PoE
Miscellaneous

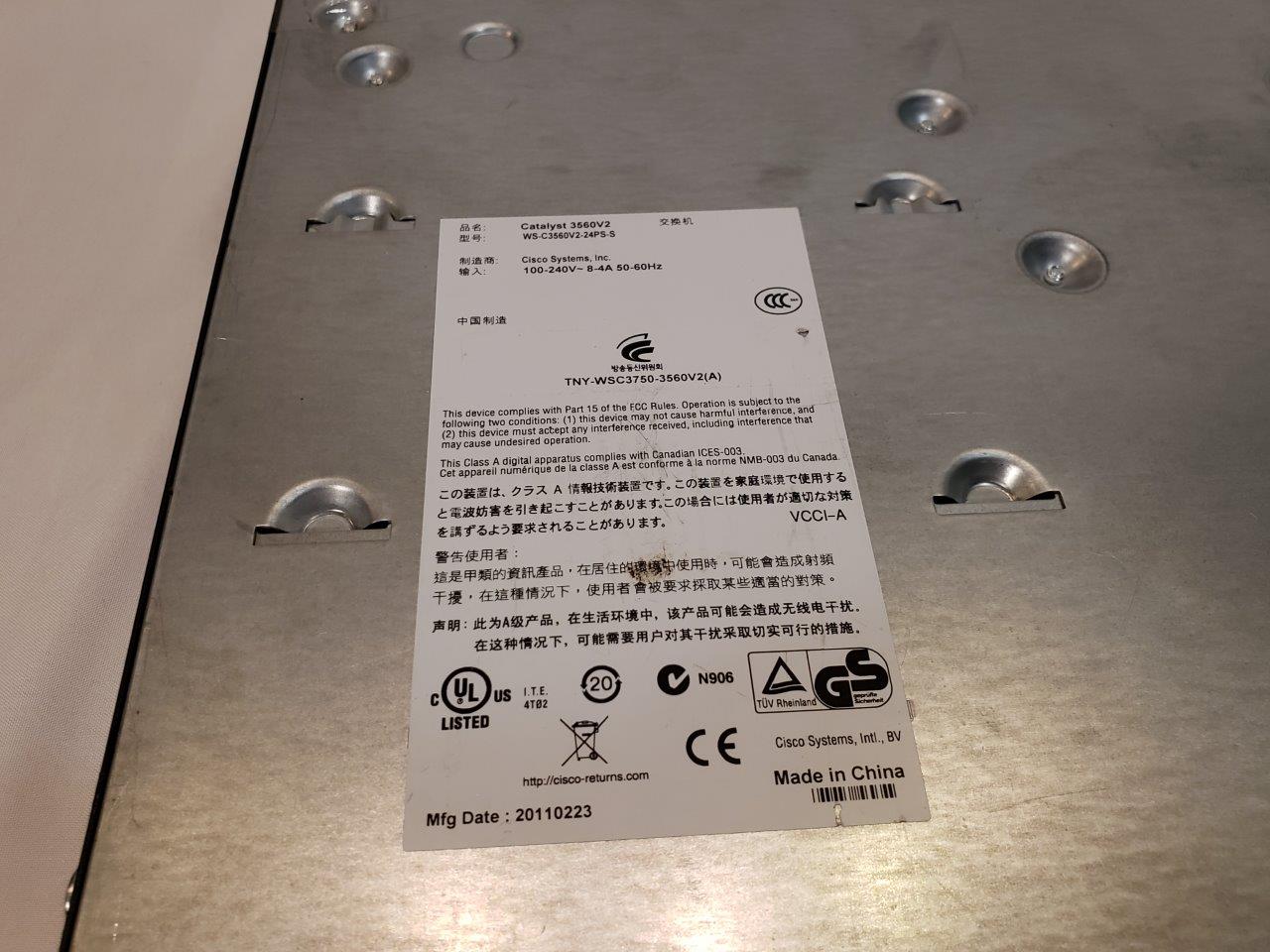

Compliant Standards: GOST, CISPR 24, NOM, EN55024, EN55022 Class A, CISPR 22, EMC, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A
MTBF: 275360 hour(s)
Height (Rack Units): 1 m
MTBF: 275,360 hours
Power

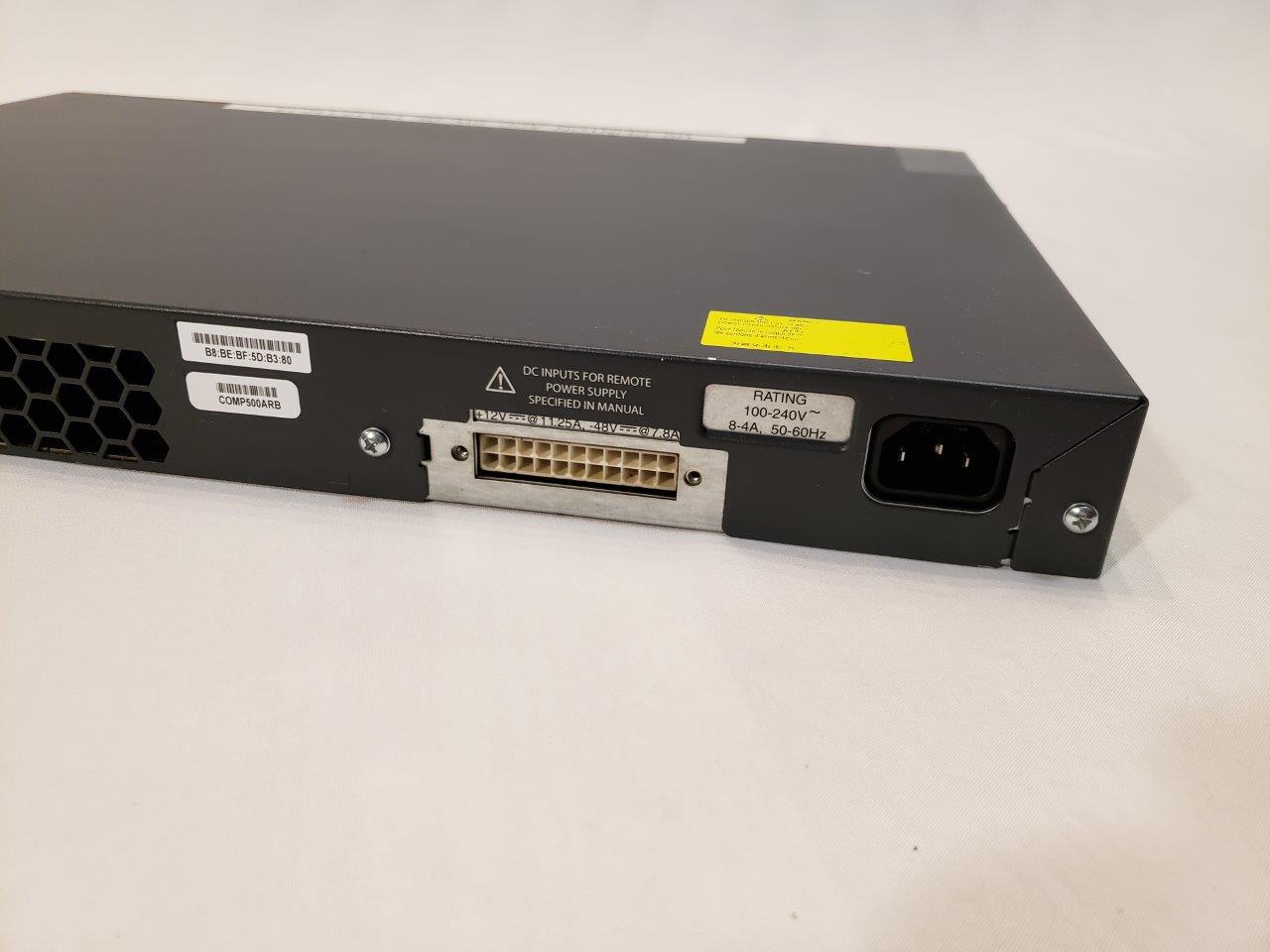

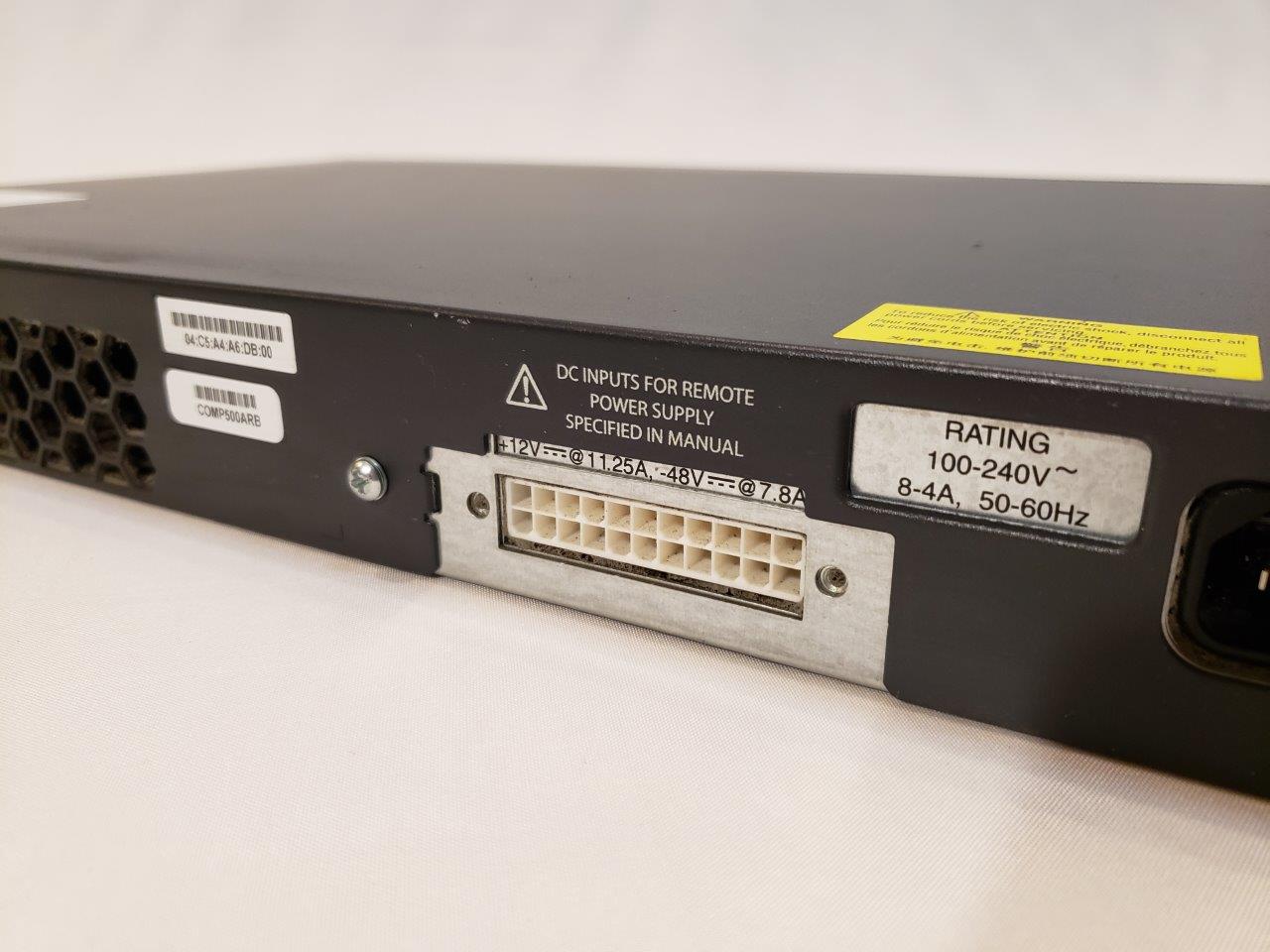

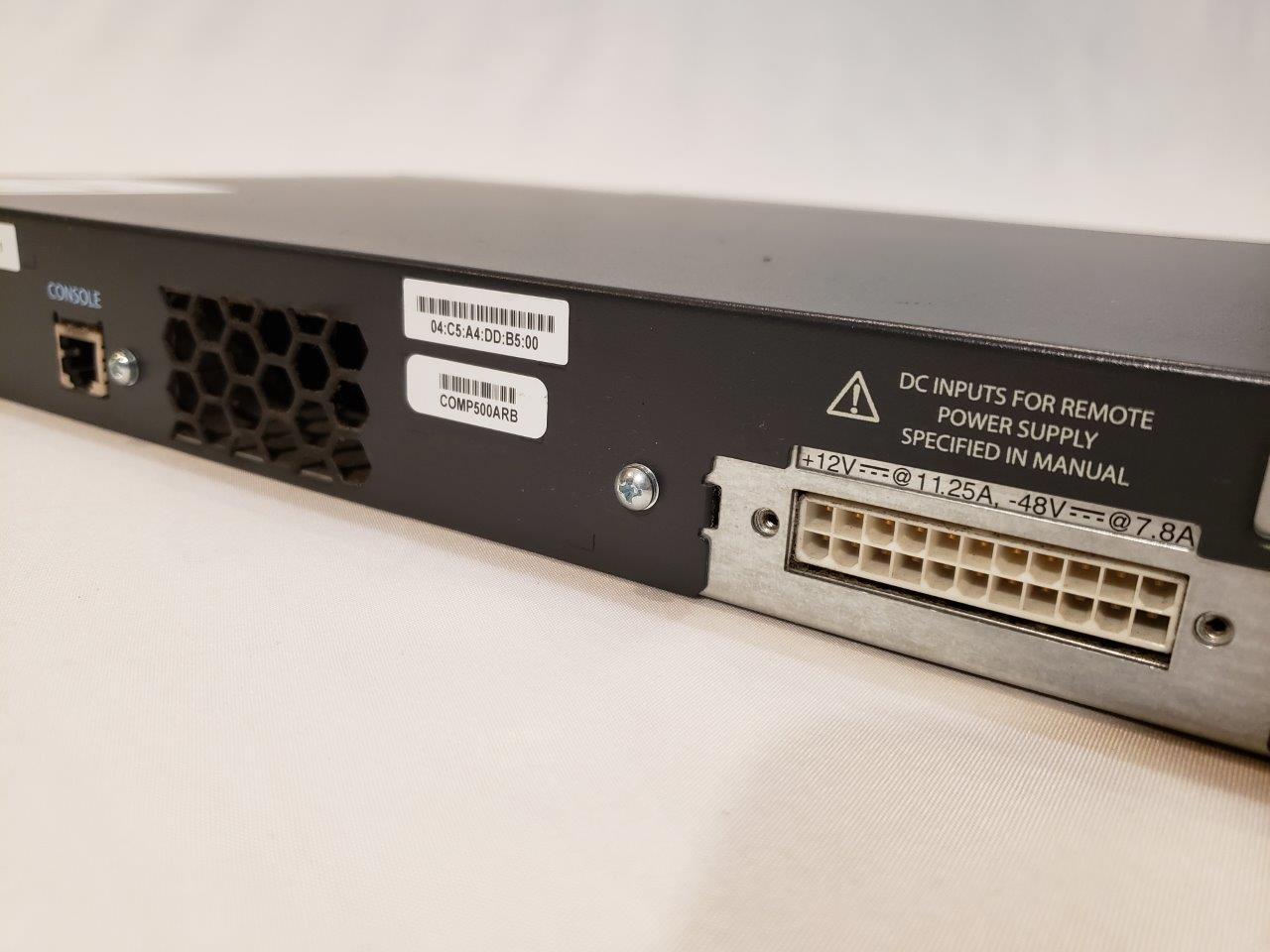

Features: Redundant Power System (RPS) connector
Features: Redundant Power System (RPS) connector
Interface Provided
Qty: 1, 2, 24
Connector Type: SFP (mini-GBIC)
Comments: PoE, management
Environmental Parameters
Min Operating Temperature: 32 °F
Max Operating Temperature: 113 °F
Humidity Range Operating: 10 – 85%
Header
Brand: Cisco
Product Line: Cisco Catalyst
Model: 3560V2-24PS
Compatibility: PC
Dimensions & Weight
Width: 17.4 in
Depth: 11.6 in
Height: 1.7 in
Weight: 10.14 lbs
Software
Type: Cisco IOS IP Base
Ports
Type: 10/100 (PoE)
Qty: 24
Ports (2nd)
Type: SFP (mini-GBIC)
Qty: 2
