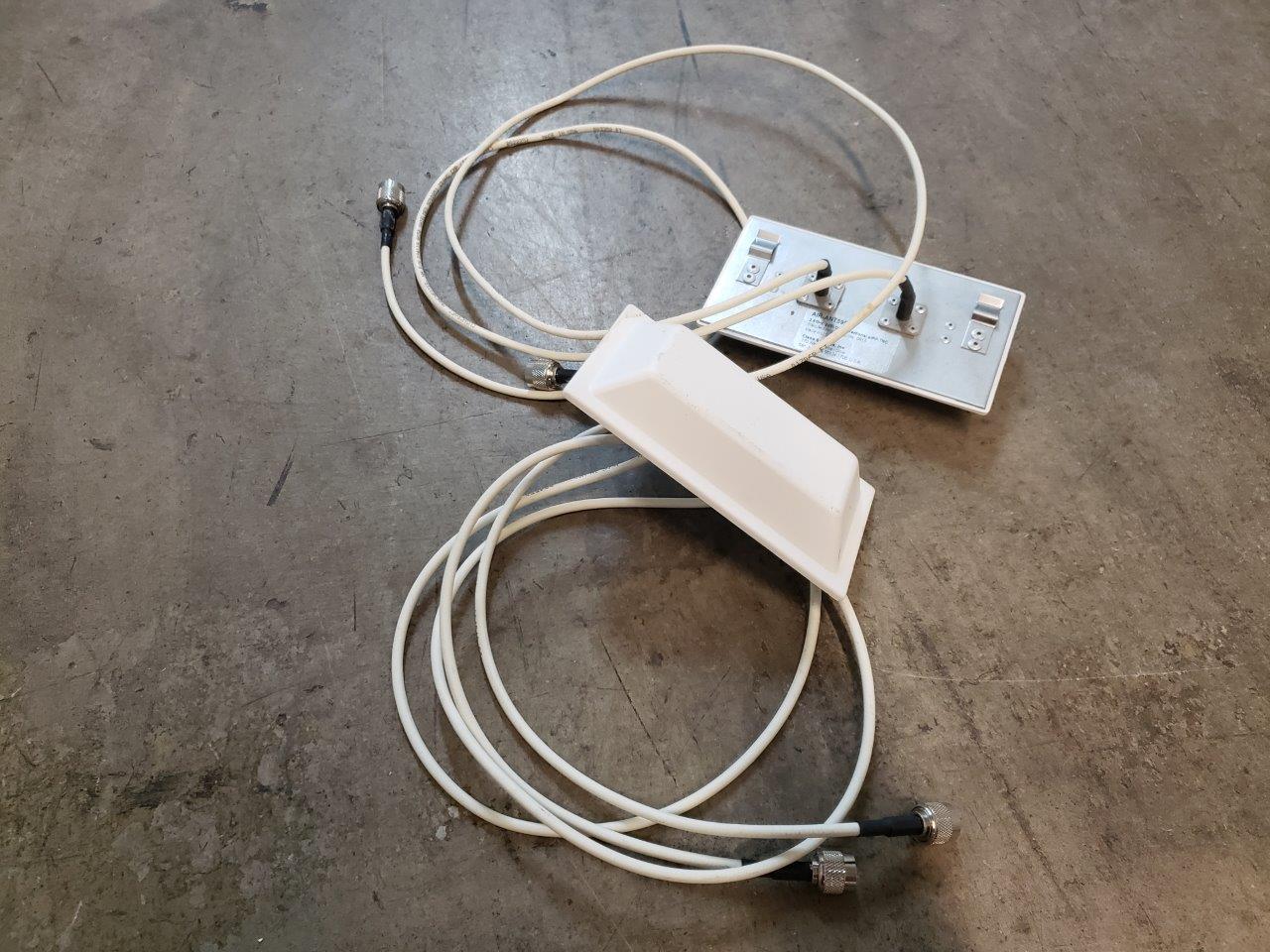

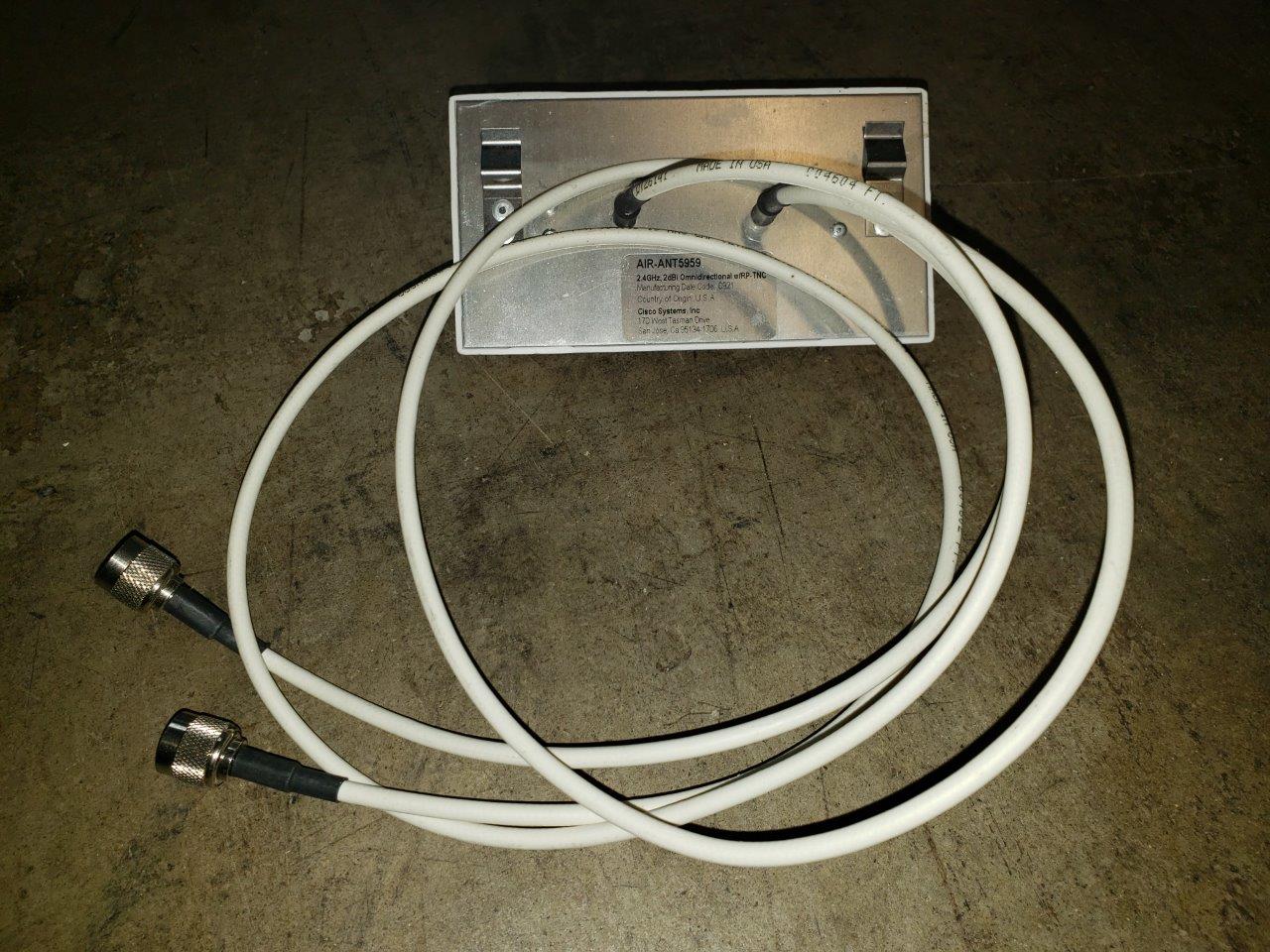

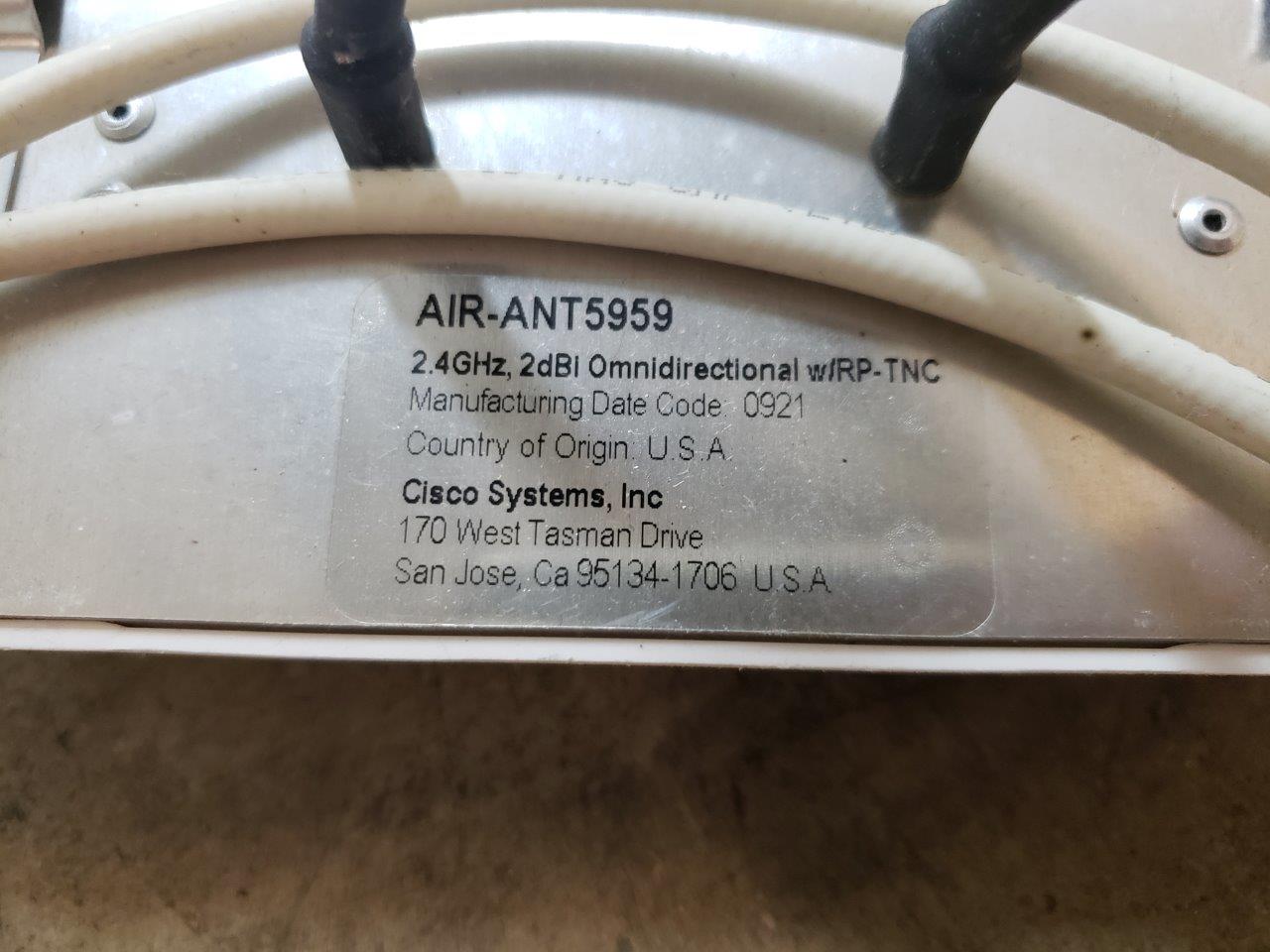

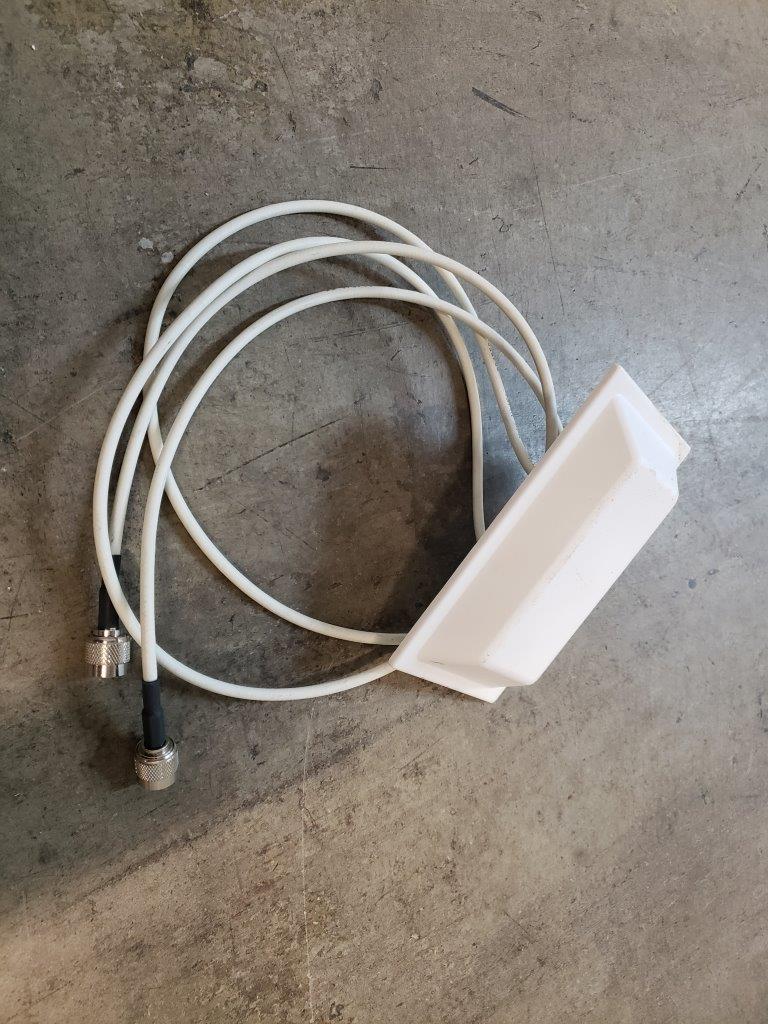

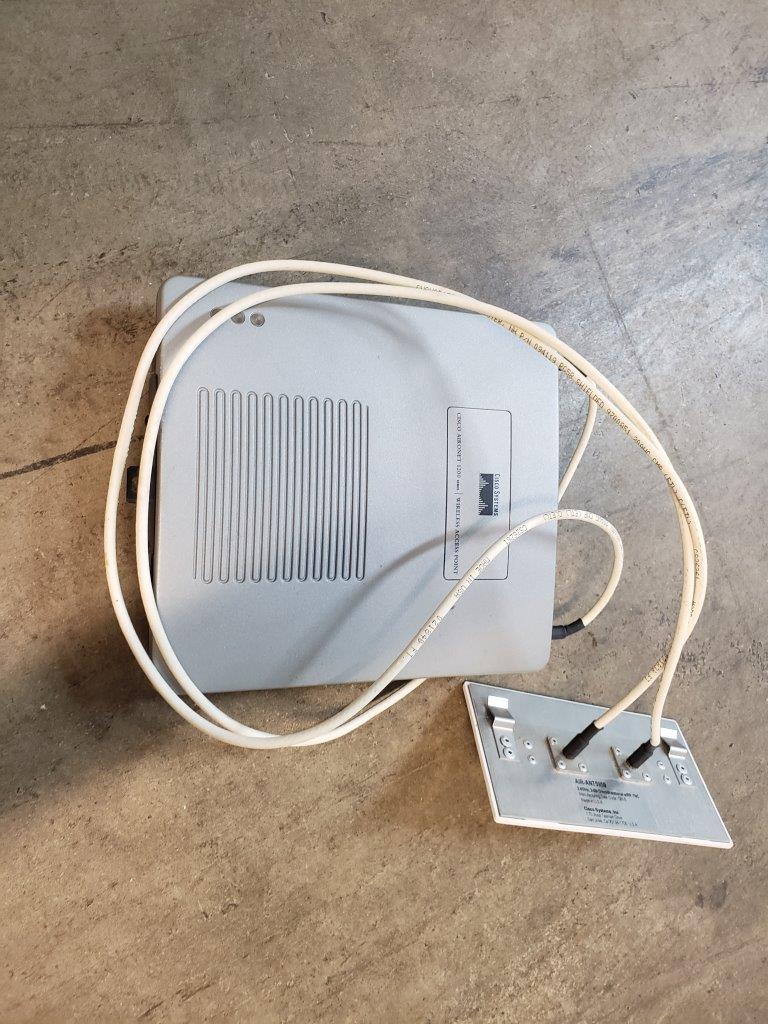

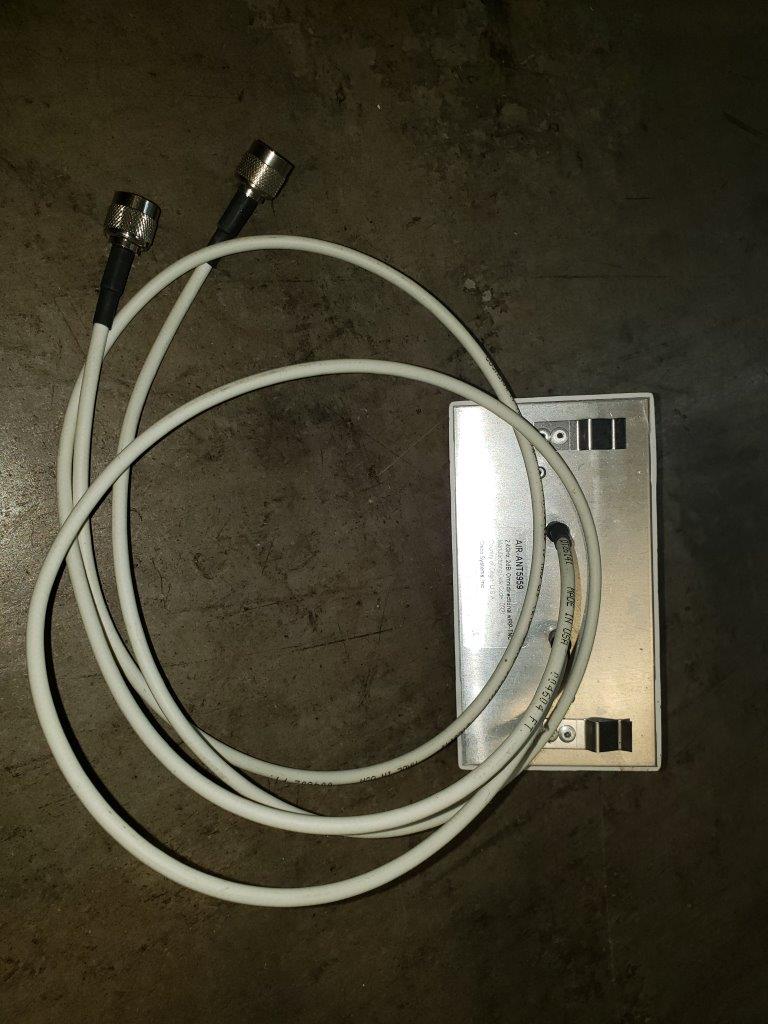

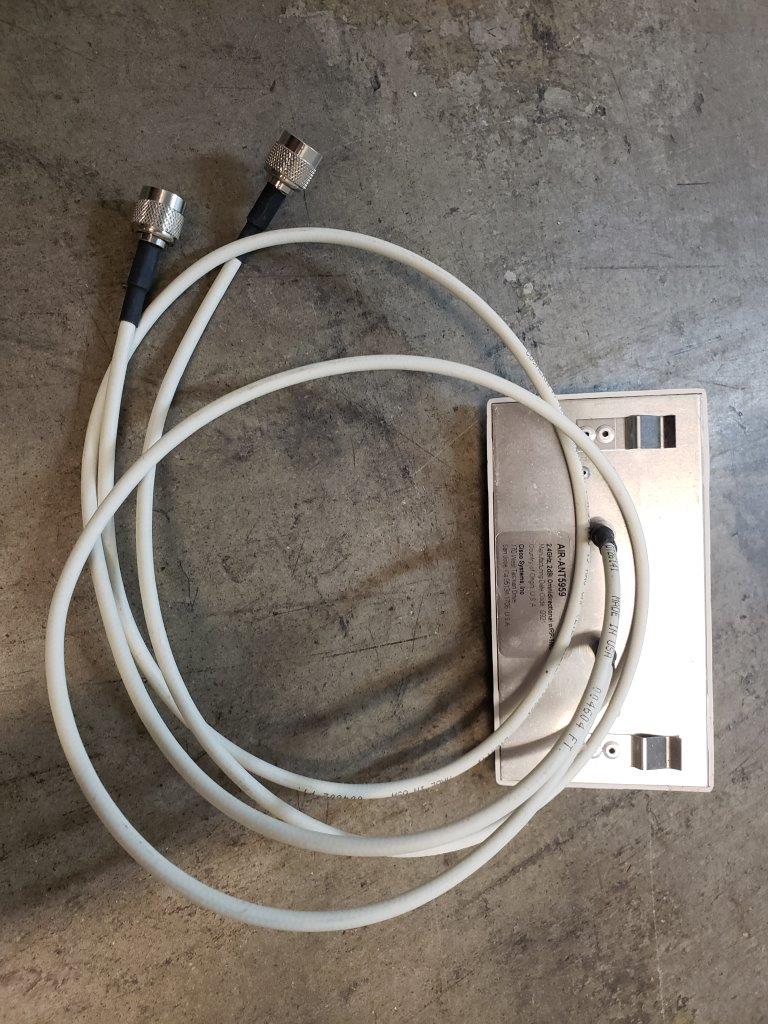

Set of 5 CISCO AIRONET 1200 SERIES AIR-AP1231G-A-K9 + Cisco AIR-ANT5959 Aironet 2 dBi Div Omnidirectional Ceiling Mount Antenna


$70.00

1 in stock

Categories: ,

Description

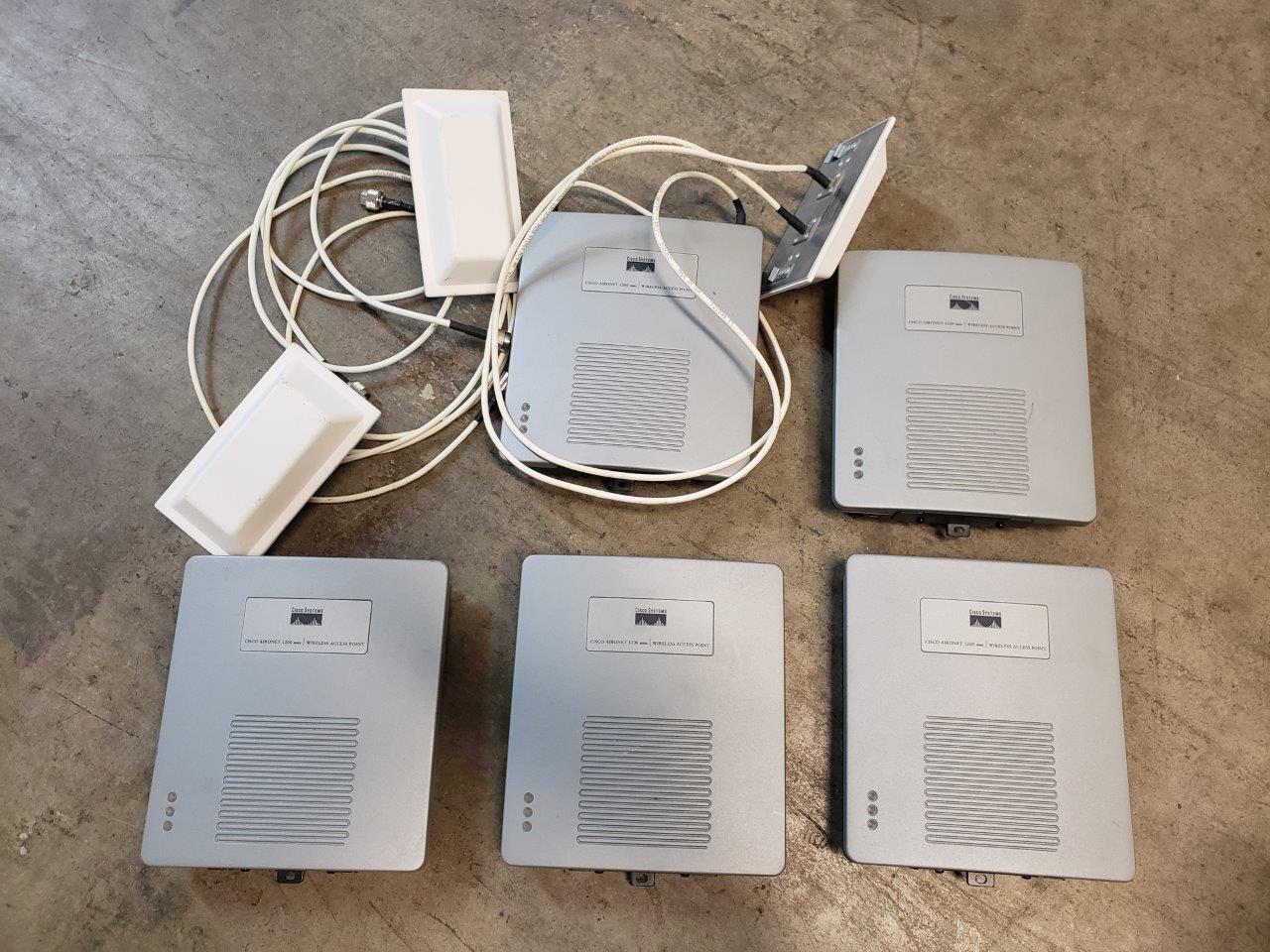

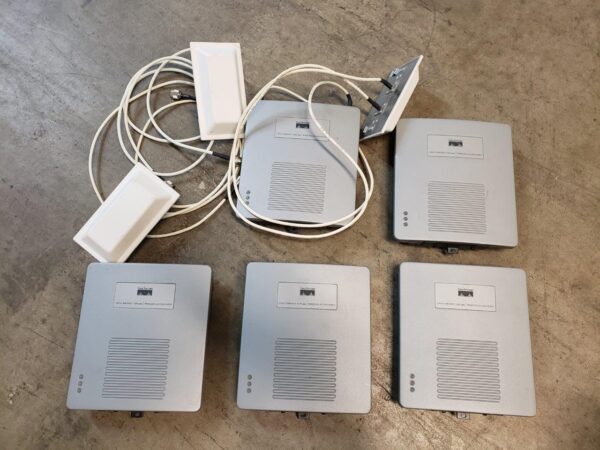

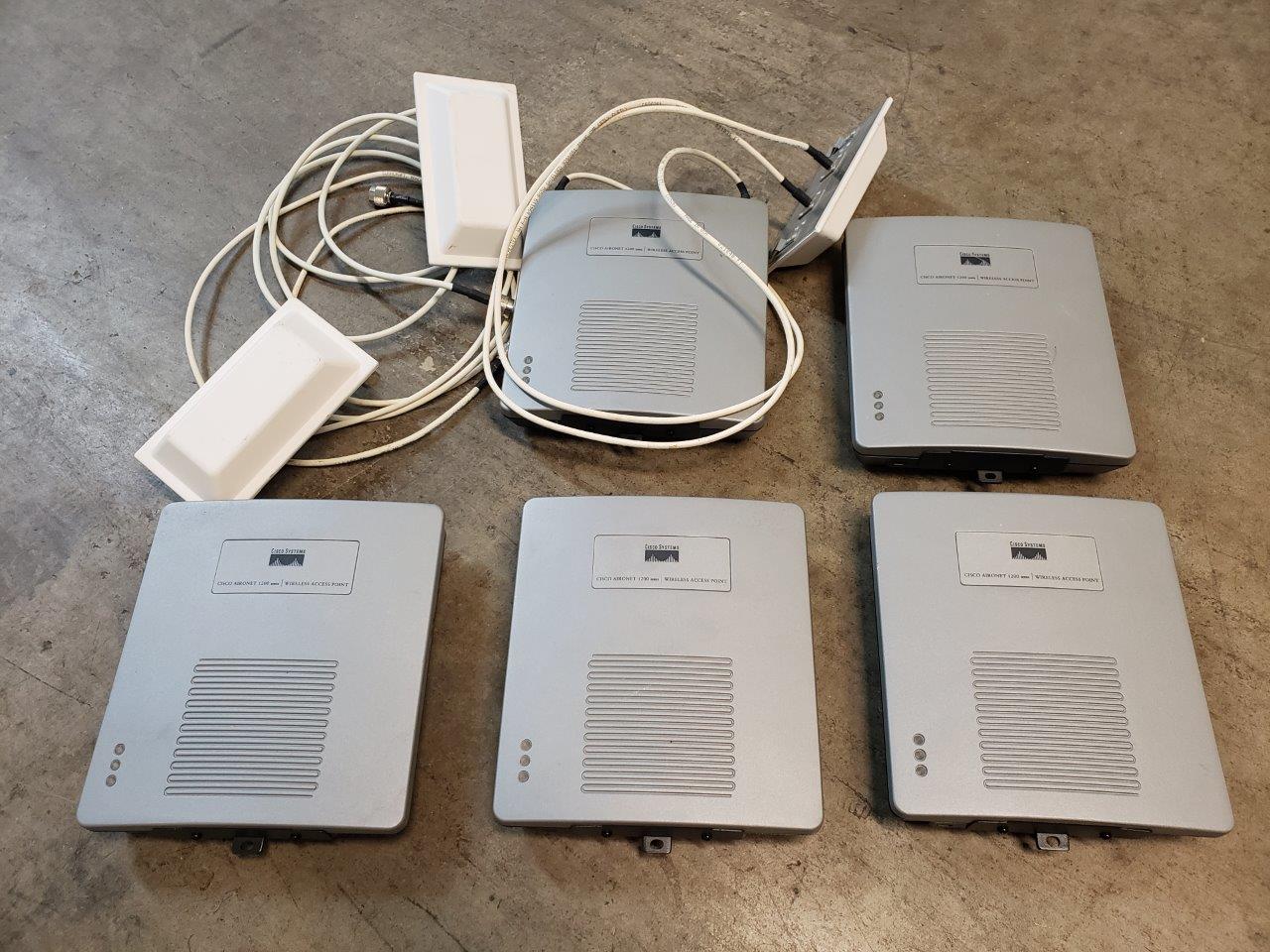

Lot of 5 CISCO AIRONET 1200 SERIES AIR-AP1231G-A-K9 + Cisco AIR-ANT5959 Aironet 2 dBi Div Omnidirectional Ceiling Mount Antenna

The Cisco Aironet 1200 Series is the flagship of the Aironet line, setting the enterprise standard for next-generation high performance, secure, manageable, and reliable wireless local-area networks (WLANs). The Cisco Aironet 1200 Series integrates seamlessly into an existing network as a wireless overlay, or creates freestanding all-wireless networks, enabling mobility quickly and cost effectively. The modular and upgradable platform protects current and future network infrastructure investments. Compliant with IEEE 802.11a and 802.11b standards, the Cisco Aironet 1200 Series allows for both single- and dual-band configuration plus field upgradability to modify these configurations as your requirements and technology evolve. The Cisco Aironet 1200 Series creates a wireless infrastructure that provides customers with maximum mobility and flexibility; enabling constant connection to all network resources from virtually anywhere wireless access is deployed.

Product Description
General Information
Manufacturer: Cisco Systems, Inc

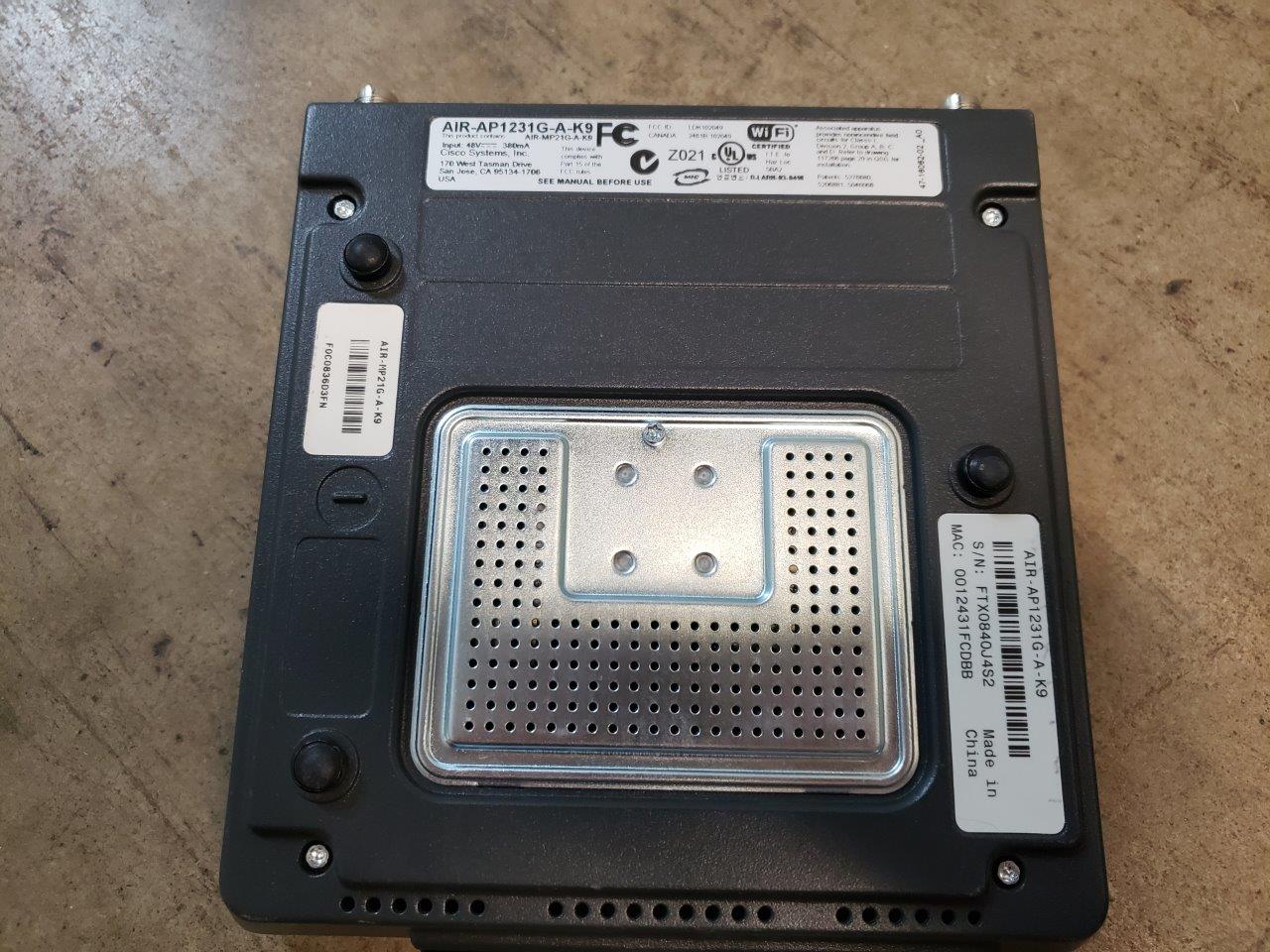

Manufacturer Part Number: AIR-AP1231G-A-K9
Brand Name: Cisco
Product Line: Aironet
Product Series: 1200

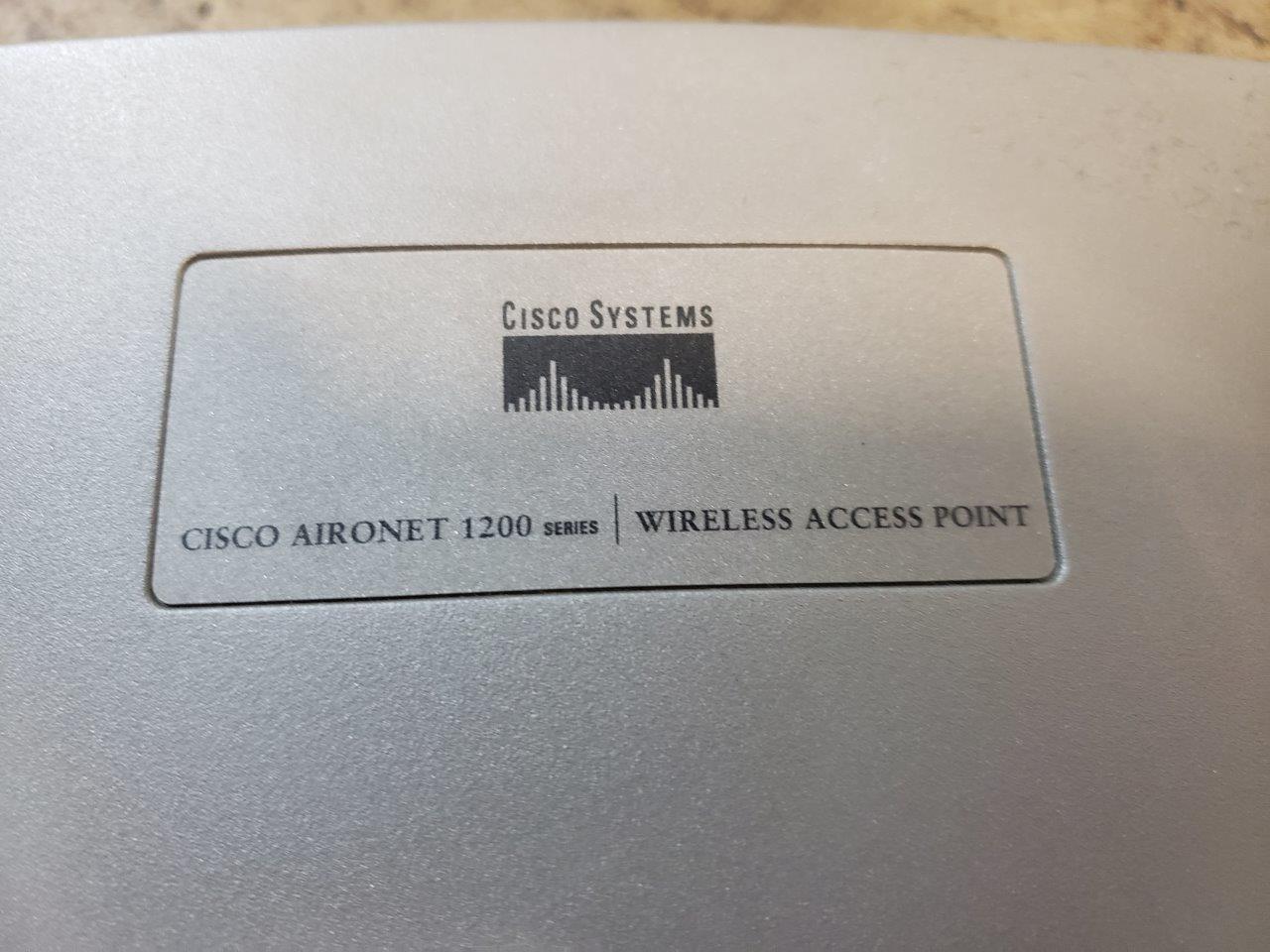

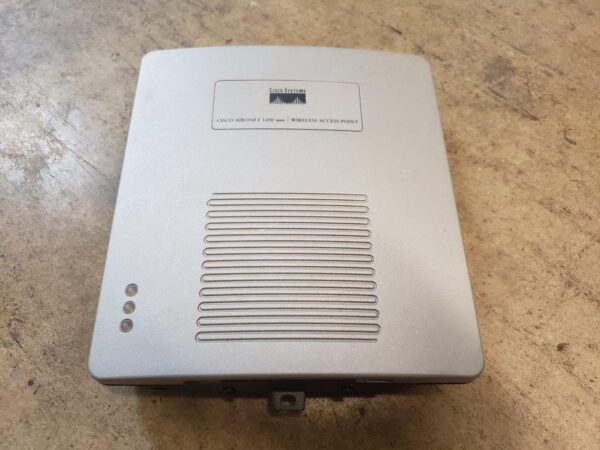

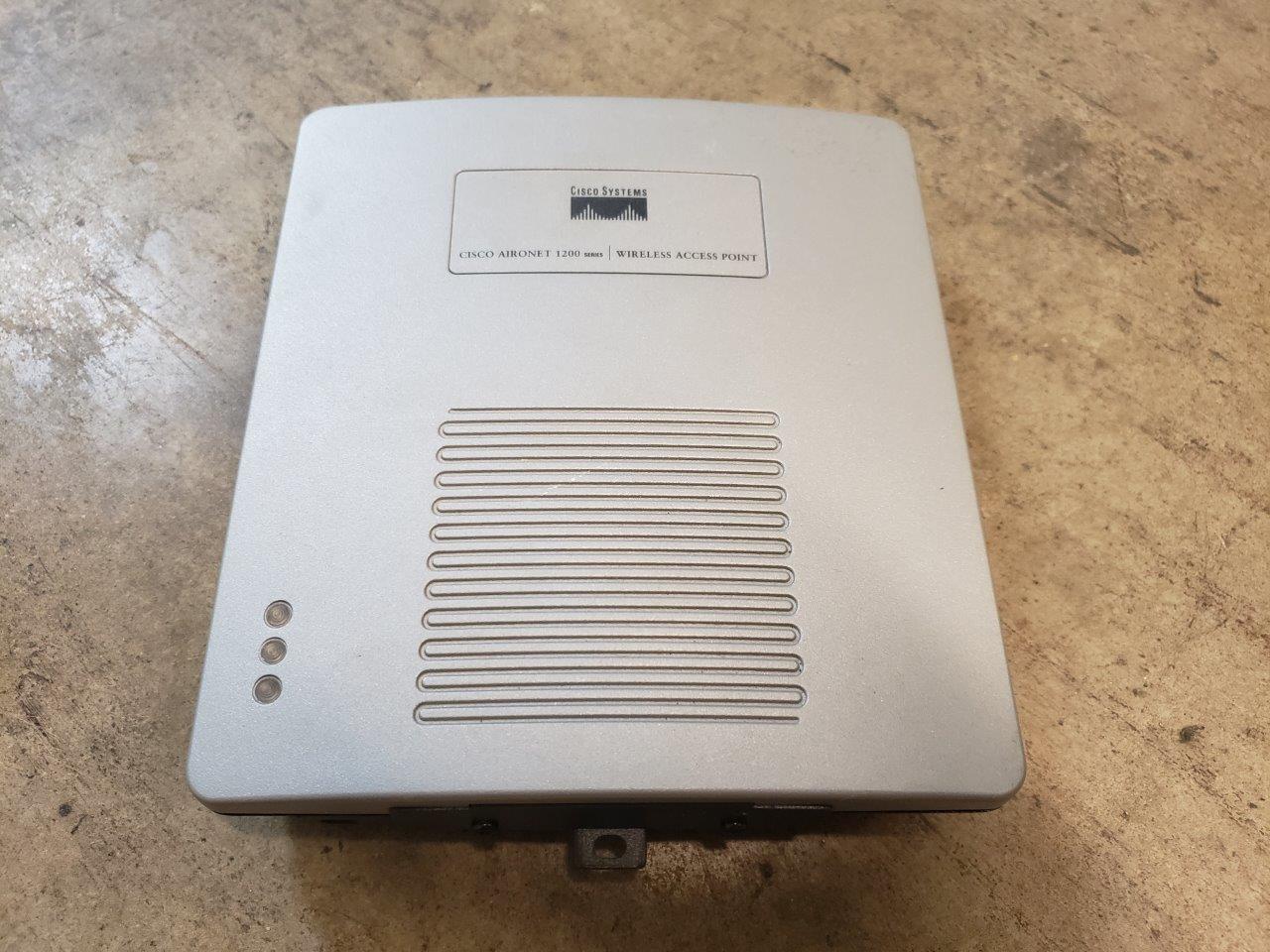

Product Name: Aironet 1200 802.11g Wireless Access Points/Bridge
Marketing Information: The Cisco Aironet 1200 Series IEEE 802.11 g Access Point sets the enterprise standard for high-performance, secure, manageable, and flexible wireless LANs (WLANs). The modular design of the Cisco Aironet 1200 allows single or dual radio configuration for up to 54 Mbps connectivity in 2.4 GHz band and is fully compliant with IEEE 802.11g standard. Providing numerous configuration and upgrade options, the Cisco Aironet 1200 Series supports a variety of clients in mixed frequency and mixed throughput environments.
Product Type: Wireless Access Point

Technical Information
Wireless LAN Standard: IEEE 802.11b/g
ISM Band: Yes
ISM Minimum Frequency: 2.41 GHz
ISM Maximum Frequency: 2.40 GHz
Antenna Connector: RP-TNC Connector
Indoor Antenna Range : 410 ft
Outdoor Antenna Range: 700 ft
Wireless Transmission Speed: 54 Mbit/s
Authentication: – 802.1X support, including Cisco LEAP, EAP-Flexible Authentication via Secure Tunneling (EAP-FAST), Protected EAP- Generic Token Card (PEAP-GTC), PEAP-Microsoft Challenge Authentication Protocol Version 2 (PEAP-MSCHAPv2), EAP-Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), and EAP-Subscriber Identity Module (EAP-SIM) to yield mutual authentication and dynamic, per-user, per-session encryption keys (WPA and WPA2)
– MAC address and standard 802.11 authentication mechanisms
Wireless Security
Encryption:
– AES-CCMP encryption (WPA2)
– TKIP encryption enhancements: key hashing (per-packet keying), message integrity check (MIC) and broadcast key rotation via Cisco TKIP or WPA TKIP
– Support for static and dynamic IEEE 802.11 WEP keys of 40 and 128 bits
Interfaces/Ports
Ethernet Technology: Fast Ethernet
Management Port: Yes
Management & Protocols
Management: Telnet; SNMP
Power Description
Input Voltage: 110 V AC; 220 V AC; 48 V DC
Physical Characteristics
Form Factor: Wall Mountable; Ceiling Mountable
Height: 1.7″
Depth: 7.2″
Weight (Approximate): 1.50 lb
Miscellaneous
Package Contents:
-Cisco Aironet 1200 Series Access Point
– Cisco Aironet 1200 Series Power Module (Universal power supply)
– Quick Start Guide: Cisco Aironet 1200 Series Access Points
– Cisco product registration and Cisco documentation feedback cards
– S12W7K9-12213JA: Cisco 1200 Series IOS WIRELESS LAN
Additional Information
– Regulatory Domains: FCC

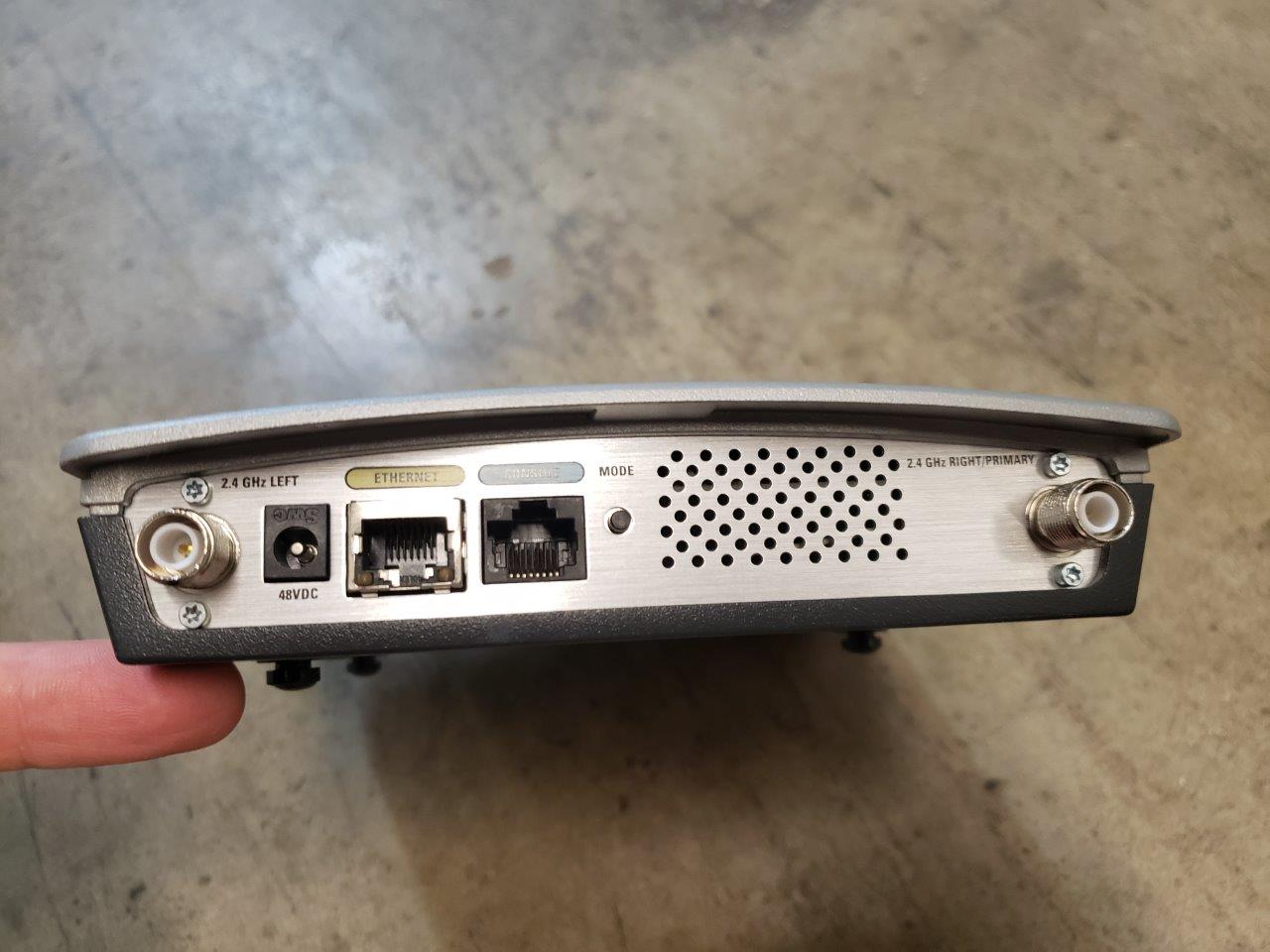

– 2 x RP-TNC Connectors
– Uplink: Autosensing 802.3 10/100 Base-T Ethernet
– Cisco IOS Software
– Avail Cardbus Slot
– Processor: IBM PowerPC405 (200 MHz)
Input Power Requirements:
– 90 to 240 VAC ±10 percent (power supply)
– 48 VDC ±10 percent
Memory:
– 16 MB RAM
– 8 MB Flash memory
LEDs:
– Ethernet activity and status
– Device operating status
– Radio activity and status
System Requirements
– Antenna purchase is REQUIRED for the device to function
Certifications & Standards
– IEEE 802.11b
– IEEE 802.11g
– Wi-Fi
– FCC Bulletin OET-65C
– RSS-102
Safety:
– UL 60950
– UL 2043
– CAN/CSA C22.2 No. 60950
– IEC 60950
Radio:
– FCC Part 15.247
– RSS-210 (Canada)
– EN 300.328
– ARIB-STD 33 (Japan)
– ARIB-STD 66 (Japan)
– AS/NZS 4268:2003 (Australia and New Zealand)
EMI and Susceptibility (Class B):
– FCC Part 15.107 and 15.109
– ICES-003 (Canada)
– VCCI (Japan)
– EN 301.489-1 and -17 (Europe)
Security:
– 802.11i
– WPA2
– WPA
– 802.1X
– AES
– TKIP

Additional information

Weight 12 lbs
Dimensions 12 × 12 × 12 in
