APG – Receipt-printer-to-cash-drawer MultiPRO cable kit for use with Axiohm, Citizen, Epson TM Series printers, Samsung-Bixolon printers, and Javelin terminals.
Most receipt printers on the point of sale market have drawer kick ports that send a 24VDC signal to open the cash drawer. It is important to note that not all printer manufacturer’s drawer kick ports are pinned alike. This means there are many different cables that could possibly be used for your setup. The information below can be used to try and determine the right cable for many commonly used printers. You can also view this video, to assist you with the cash drawer to receipt printer connection.
- Interface cable for connecting APG cash drawer to 24V receipt printer or terminal (cash drawer, printer, and terminal sold separately)
- Suitable for APG cash drawers with MultiPRO 320 or 520 interface

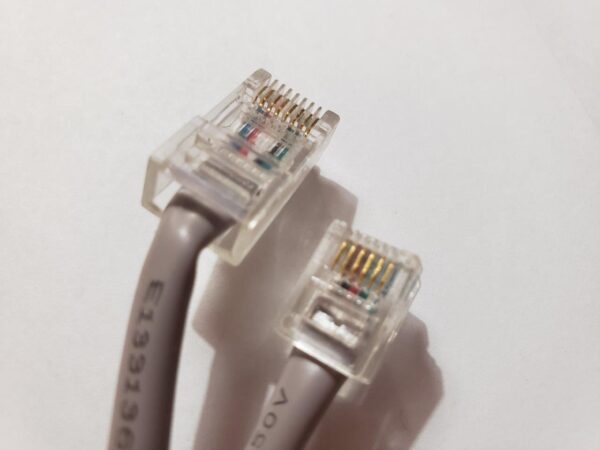

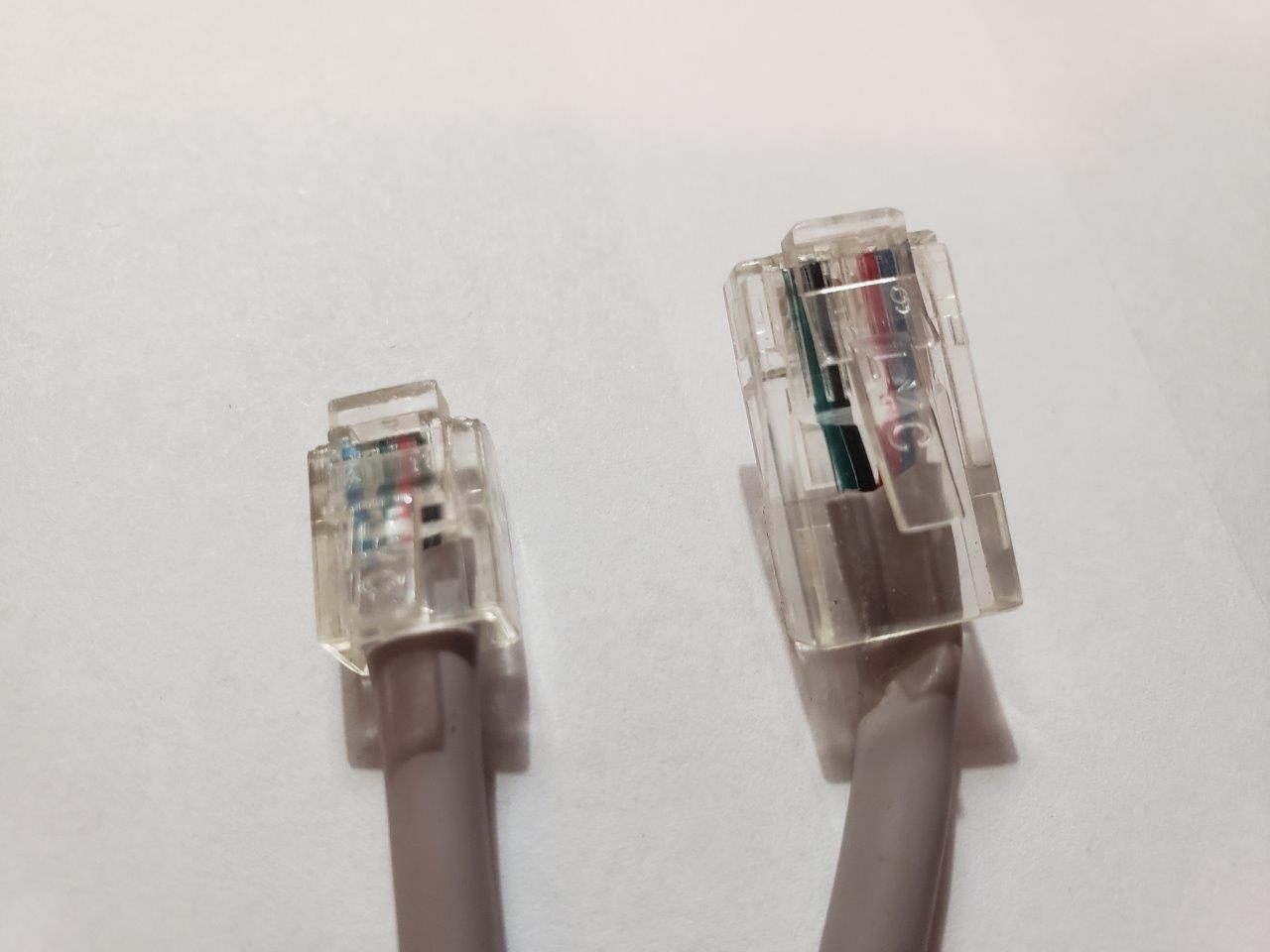

- 8P8C (RJ45) plug at one end for connecting to cash drawer and 6P6C (RJ12) plug at other end for connecting to printer or terminal
- Measures 5′ long

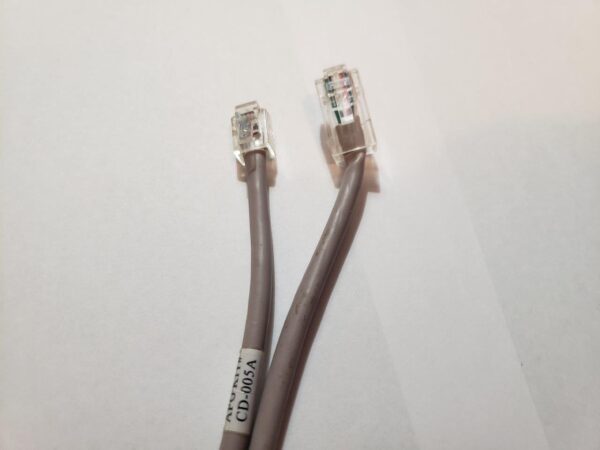

The APG CD-005A cash drawer interface cable is suitable for connecting an APG cash drawer with a MultiPRO 320 or 520 interface to a 24V receipt printer or point-of-sale terminal for creating an integrated point-of-sale system (cash drawer, printer, and terminal sold separately). The cable has an 8P8C (RJ45) modular plug at one end for connecting to the cash drawer and a 6P6C (RJ12) modular plug at the other end for connecting to the printer or terminal. It measures 5′ long. This interface cable is suitable for use with a variety of receipt printers and point-of-sale terminals.
APG Cash Drawer manufactures cash drawers and other point-of-sale equipment.
