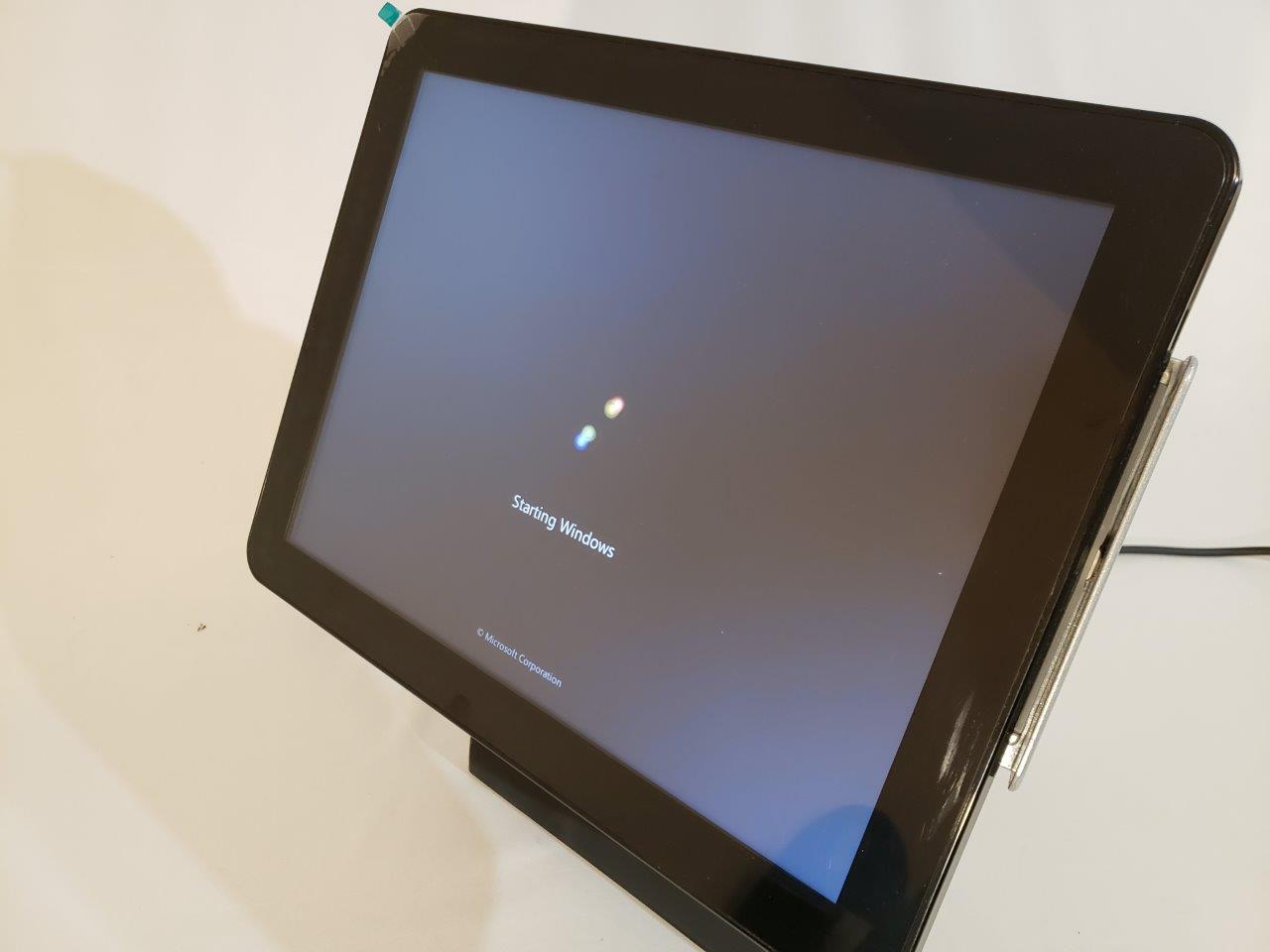

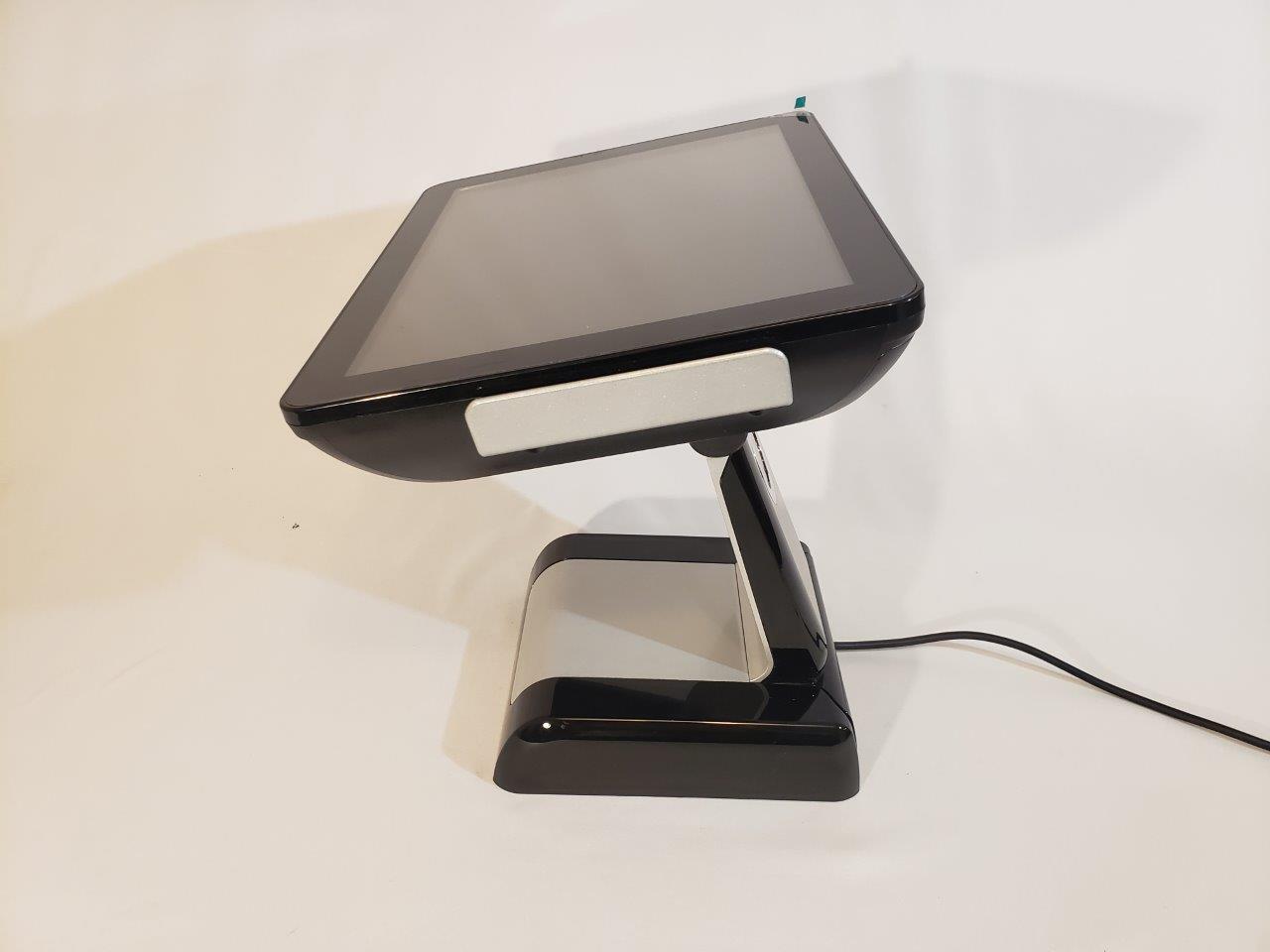

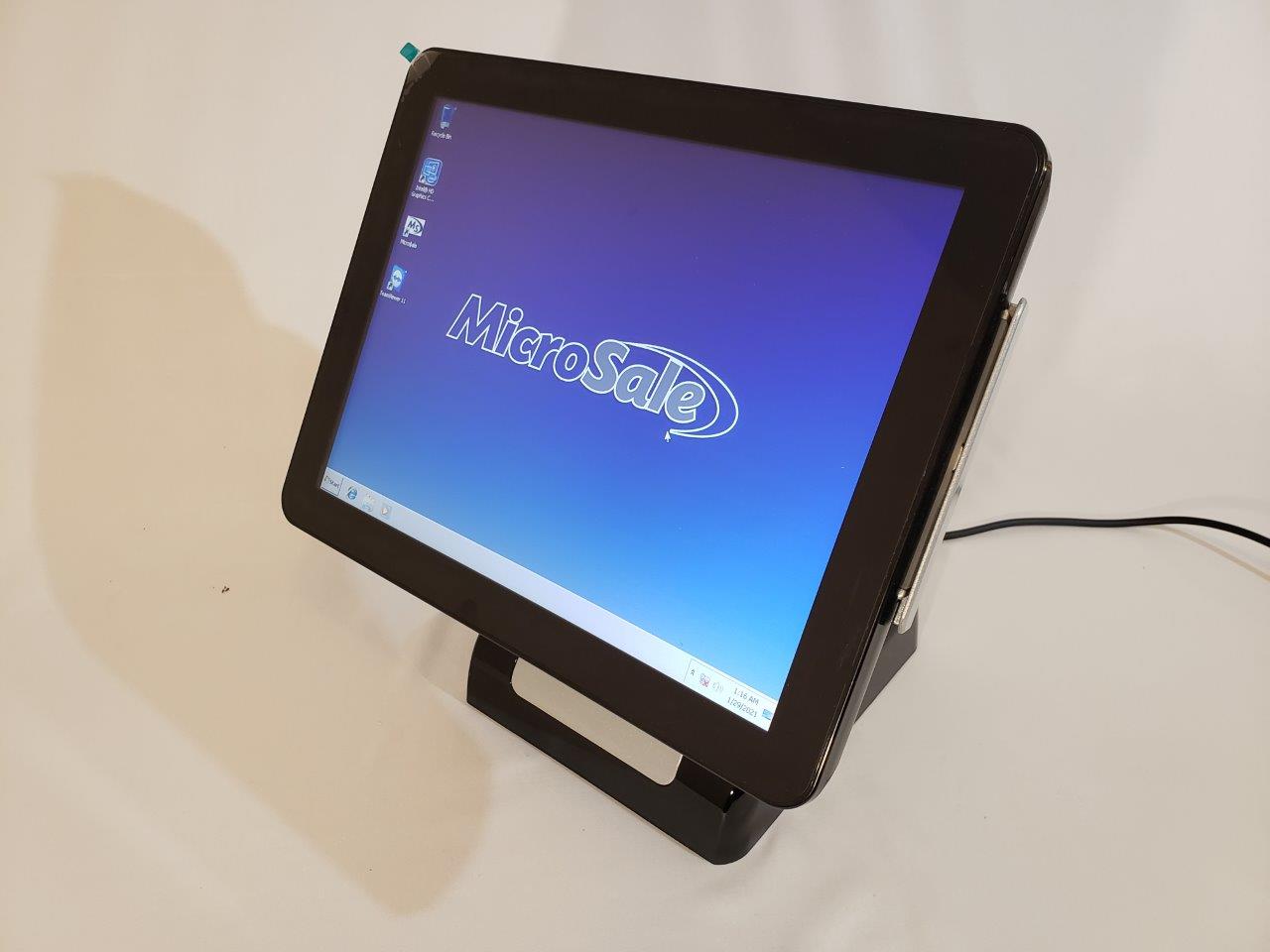

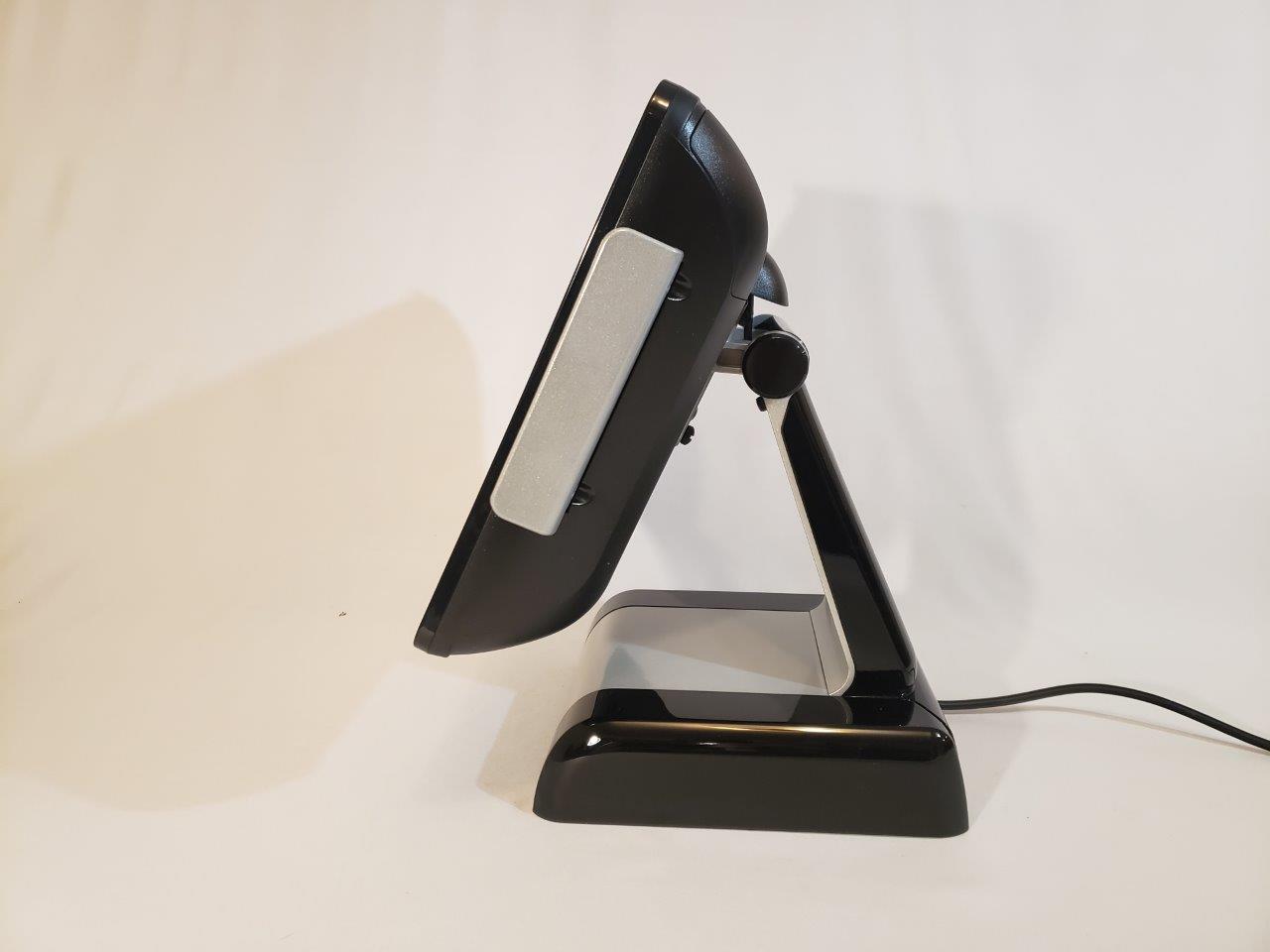

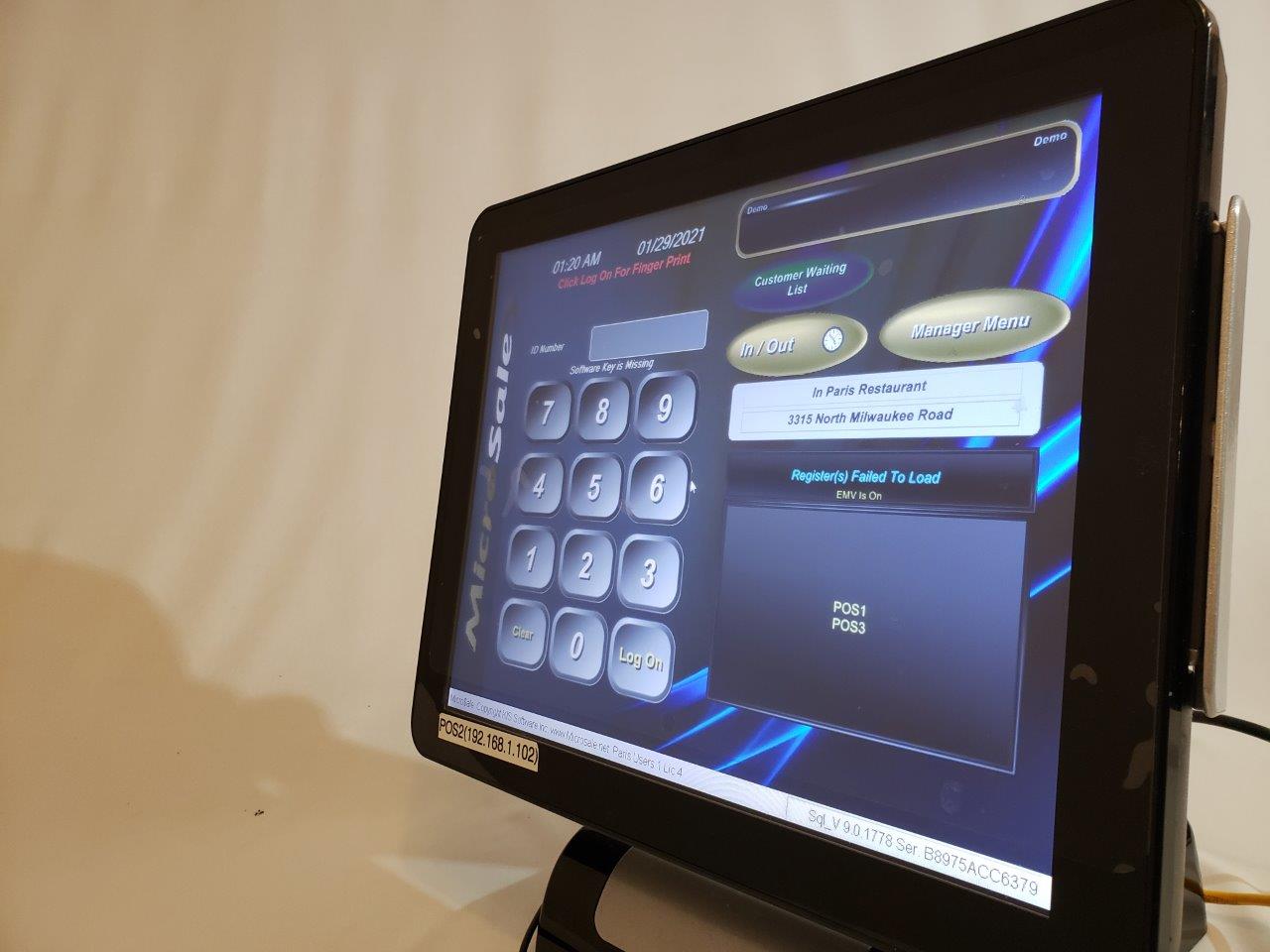

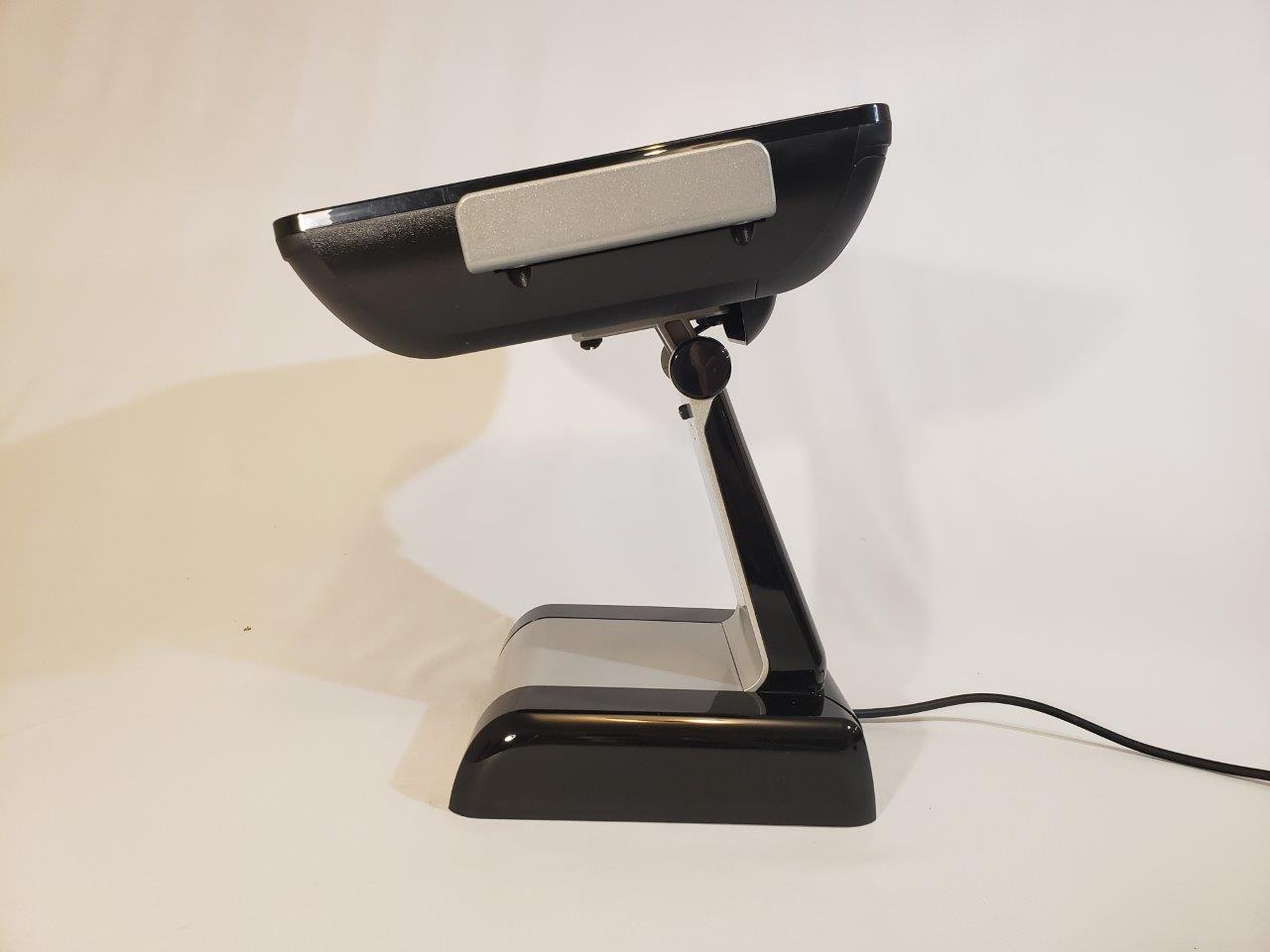

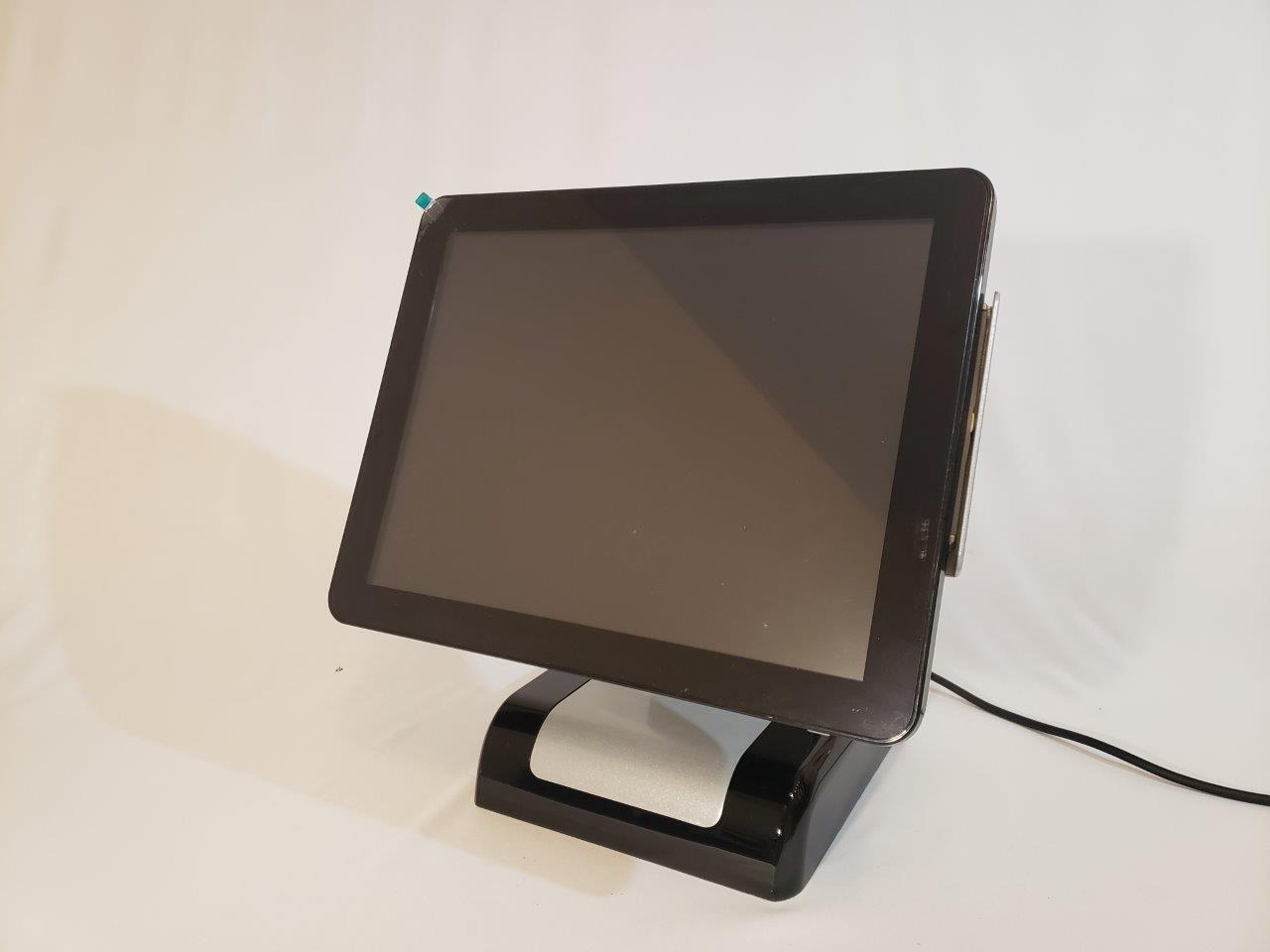

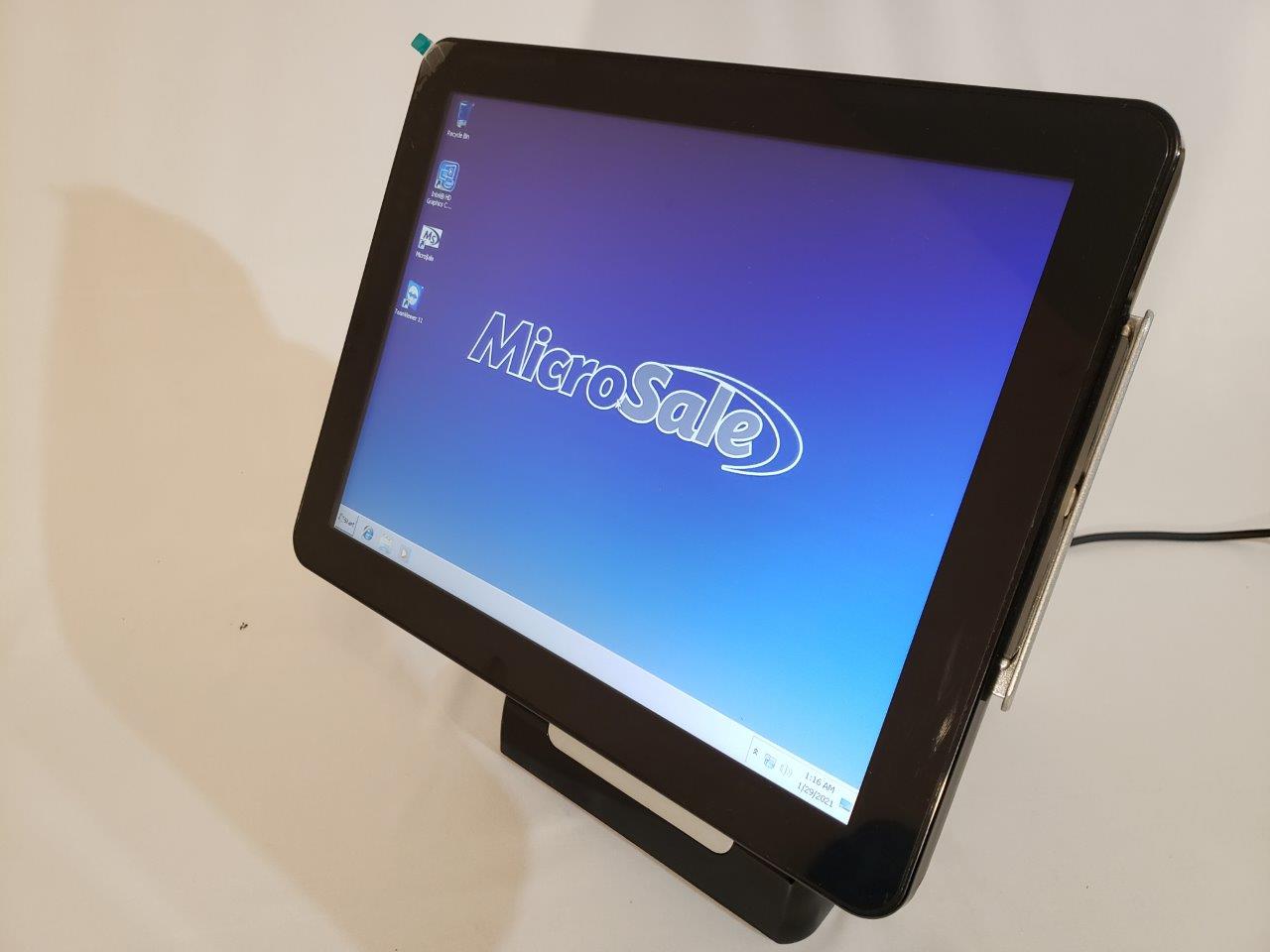

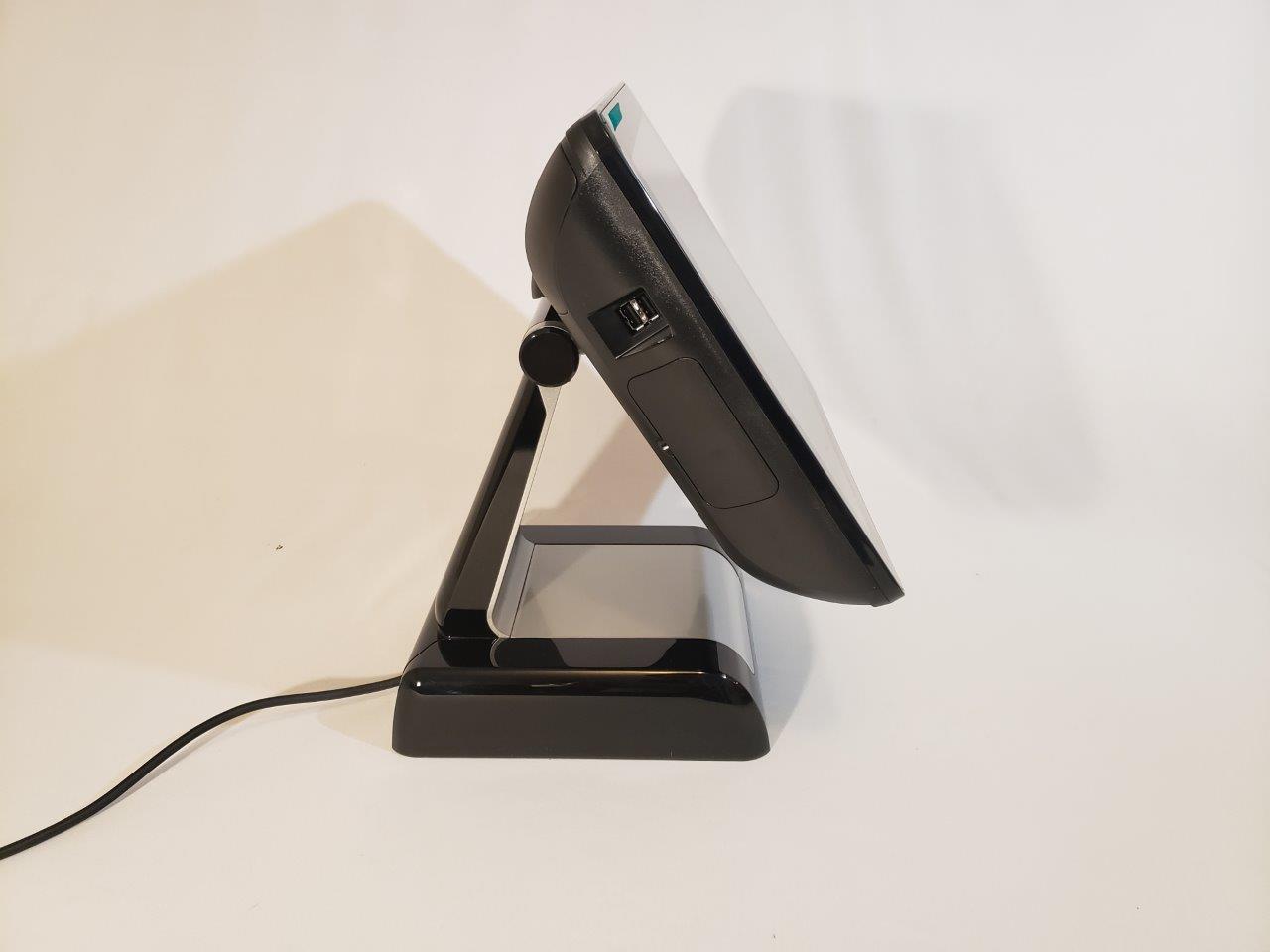

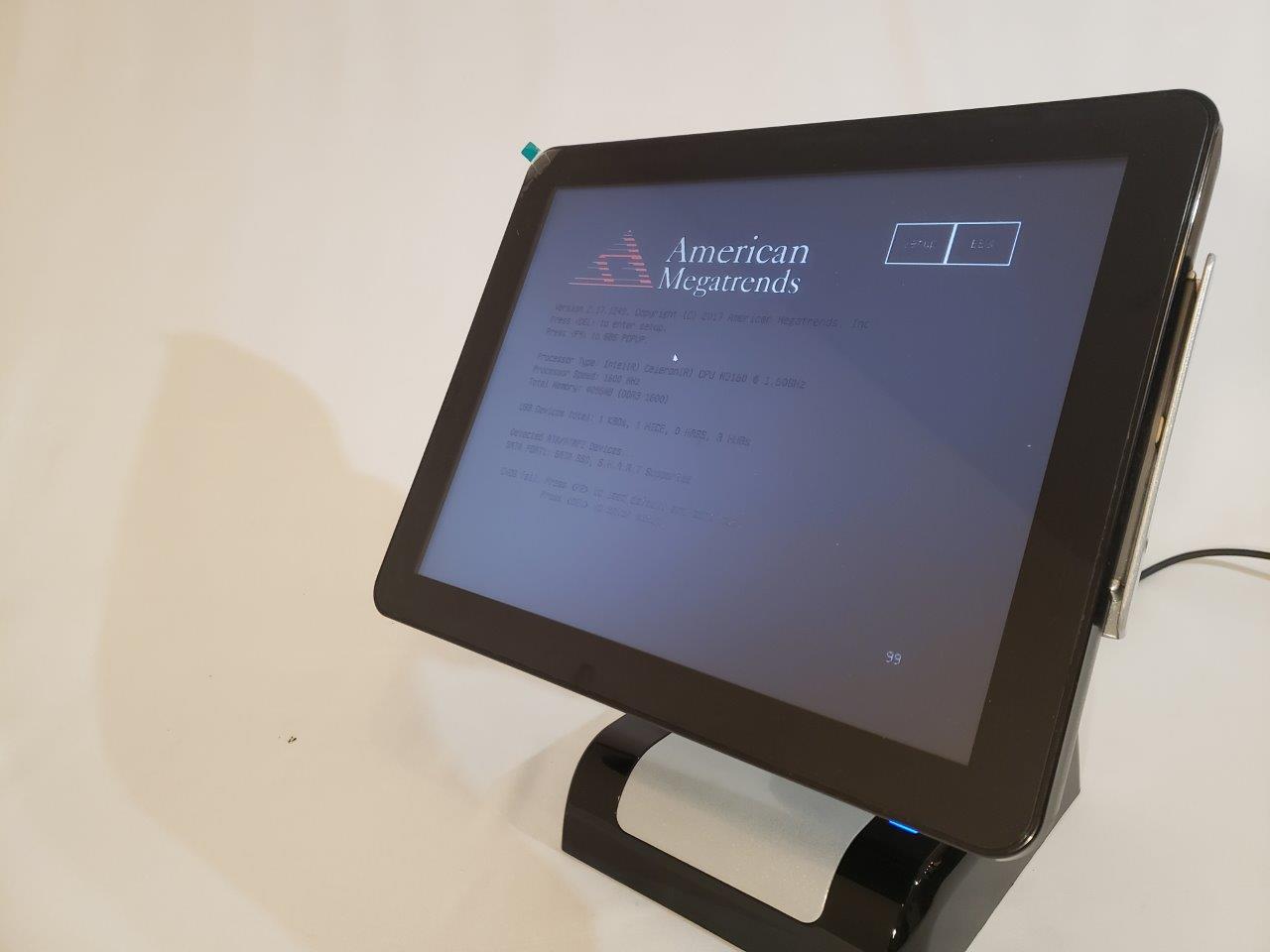

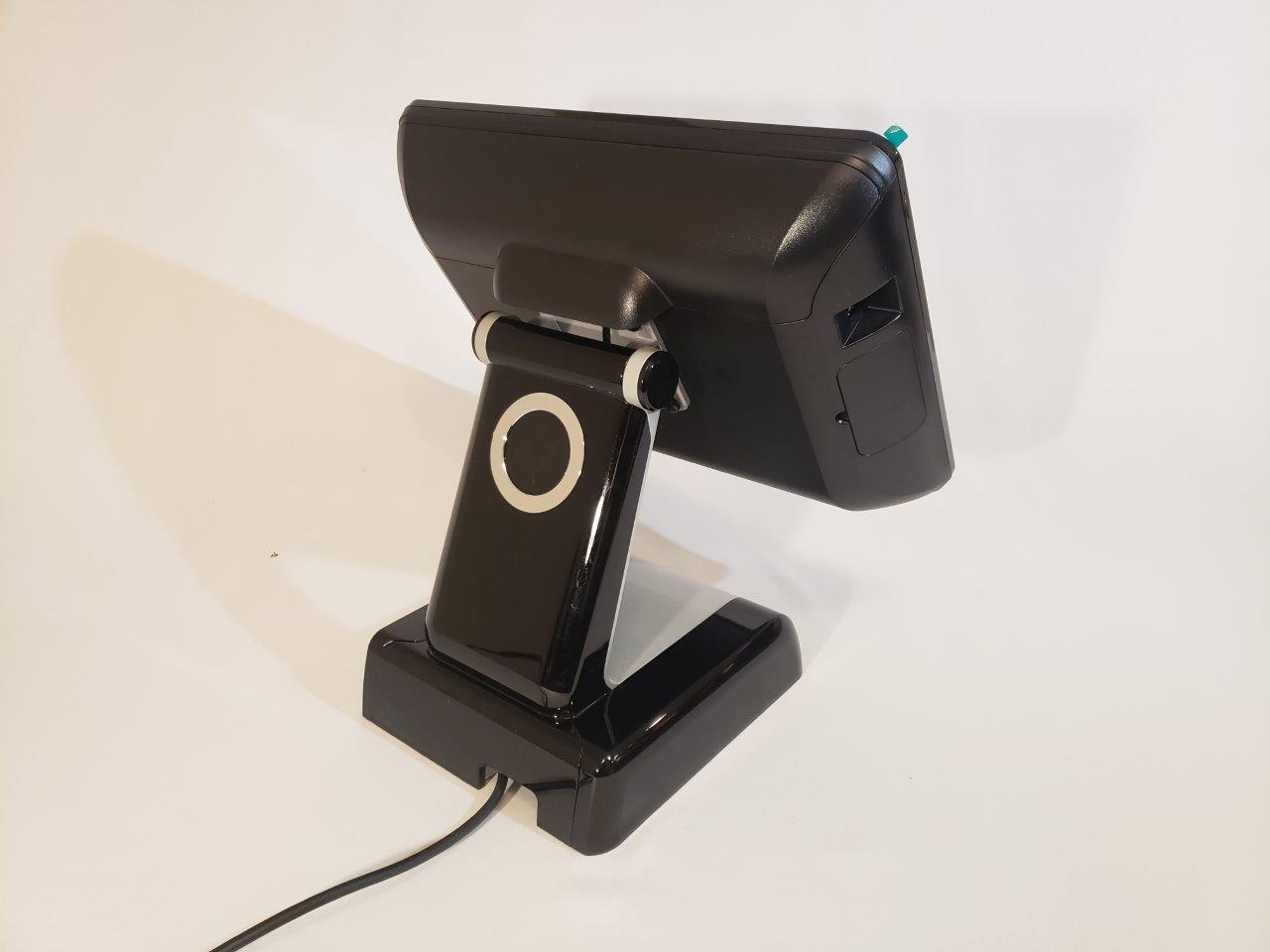

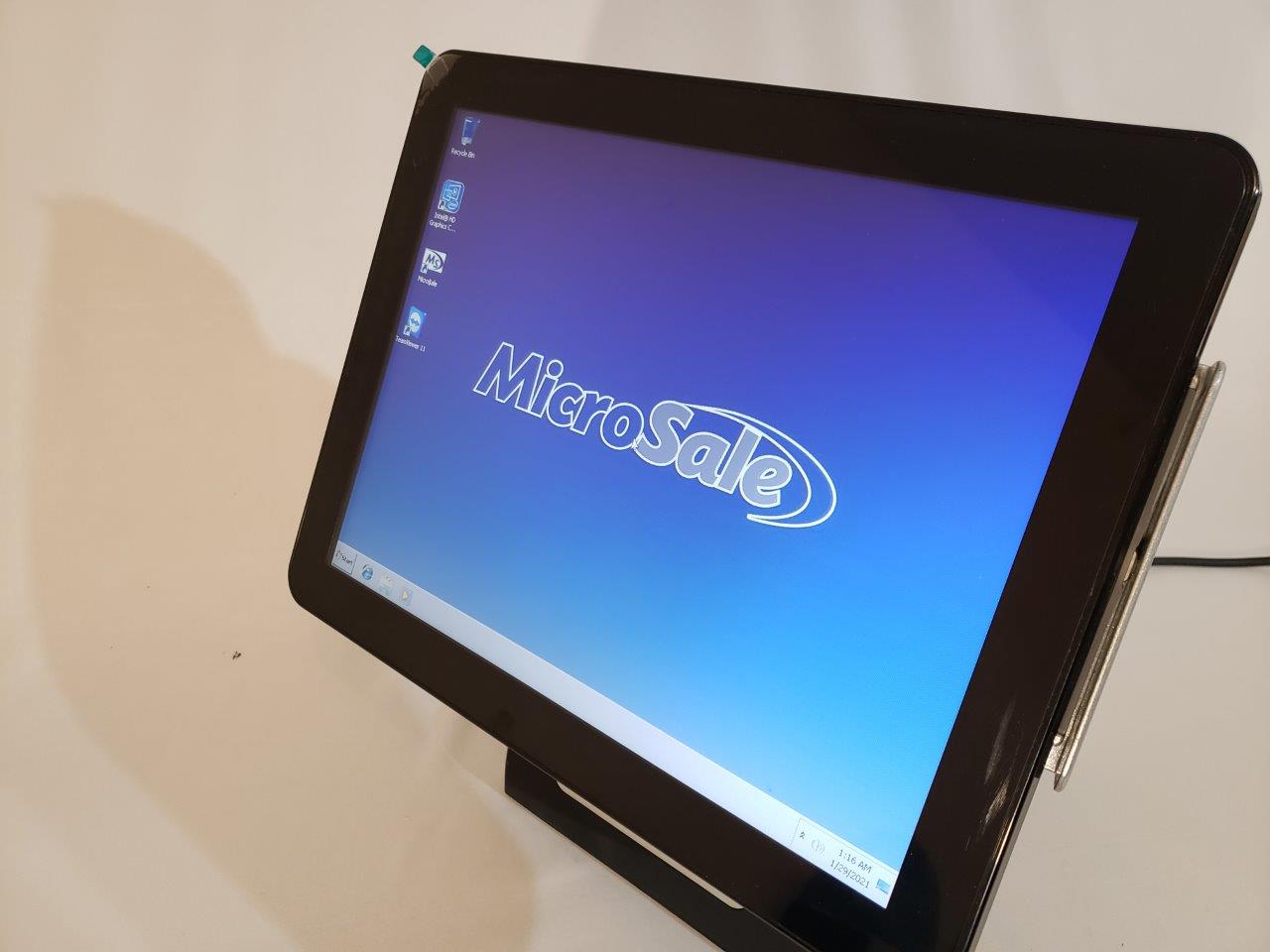

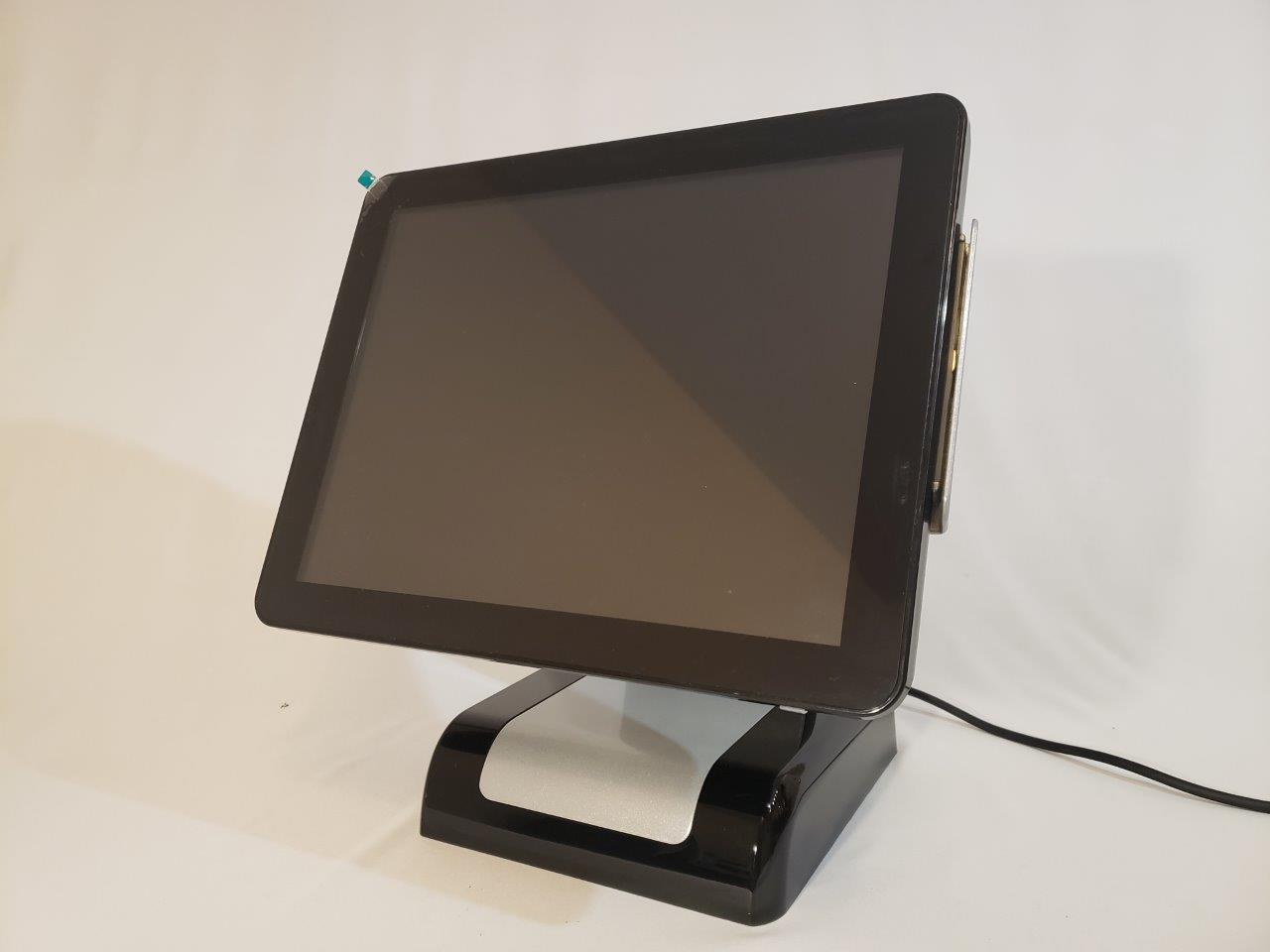

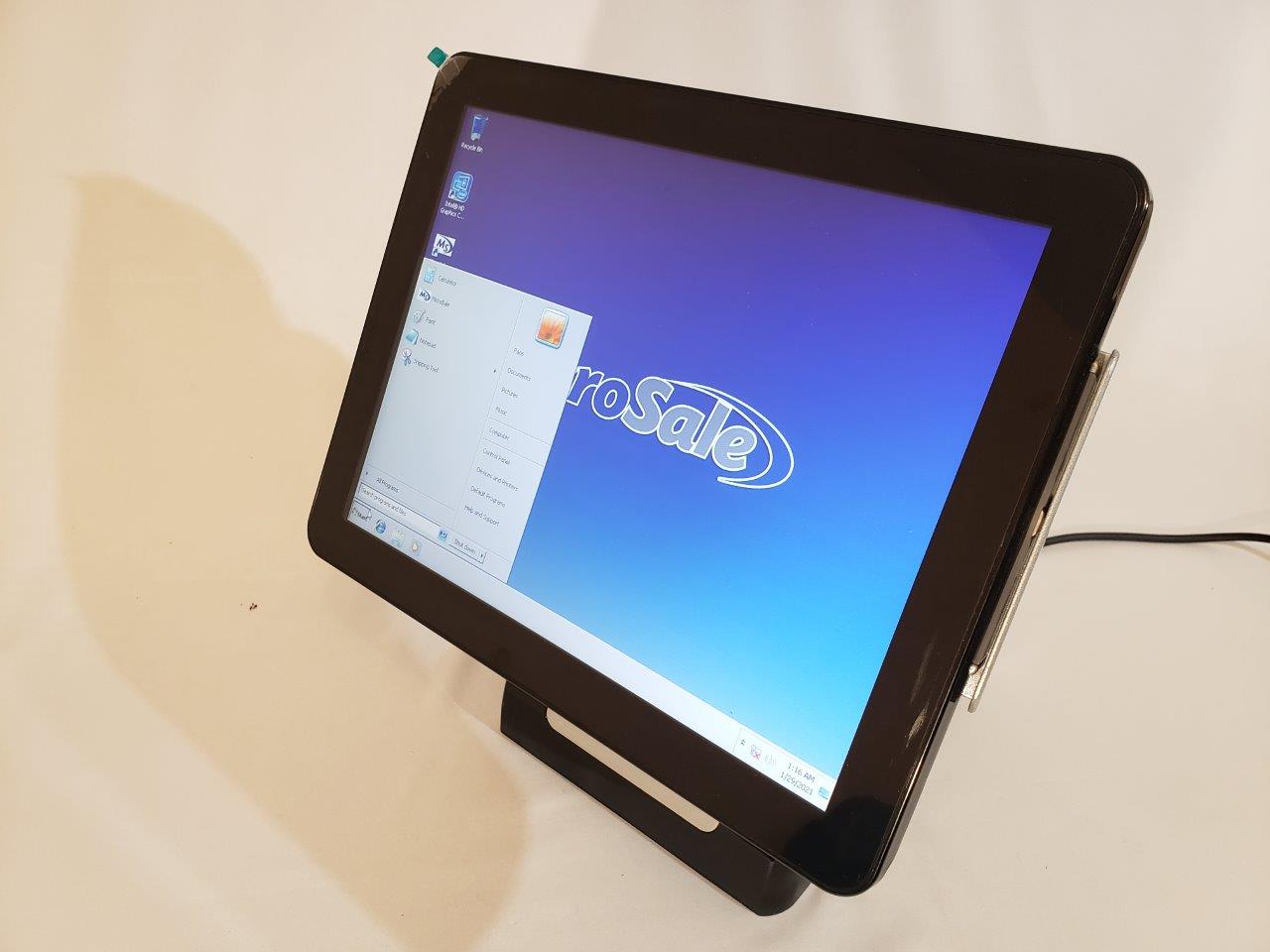

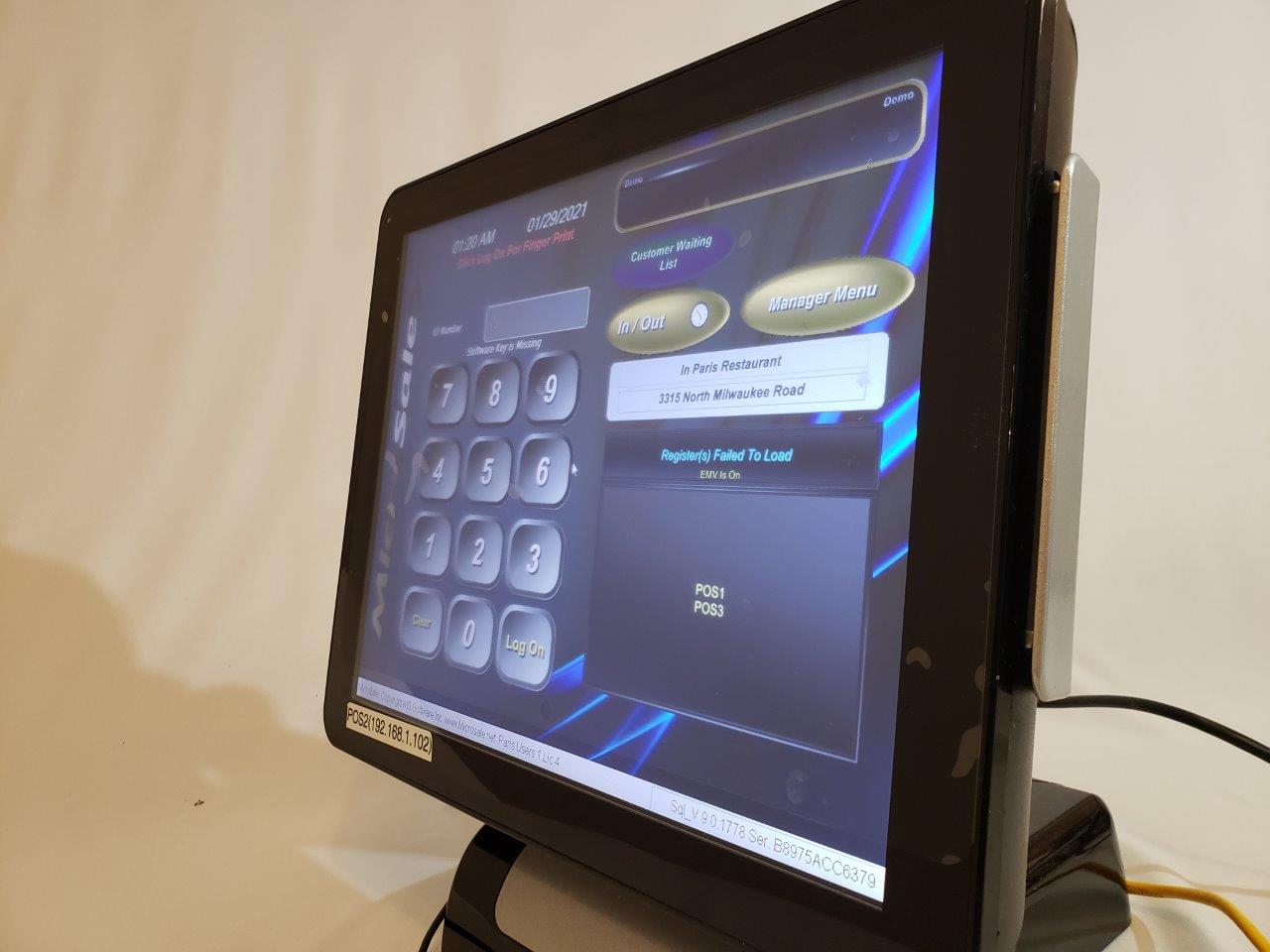

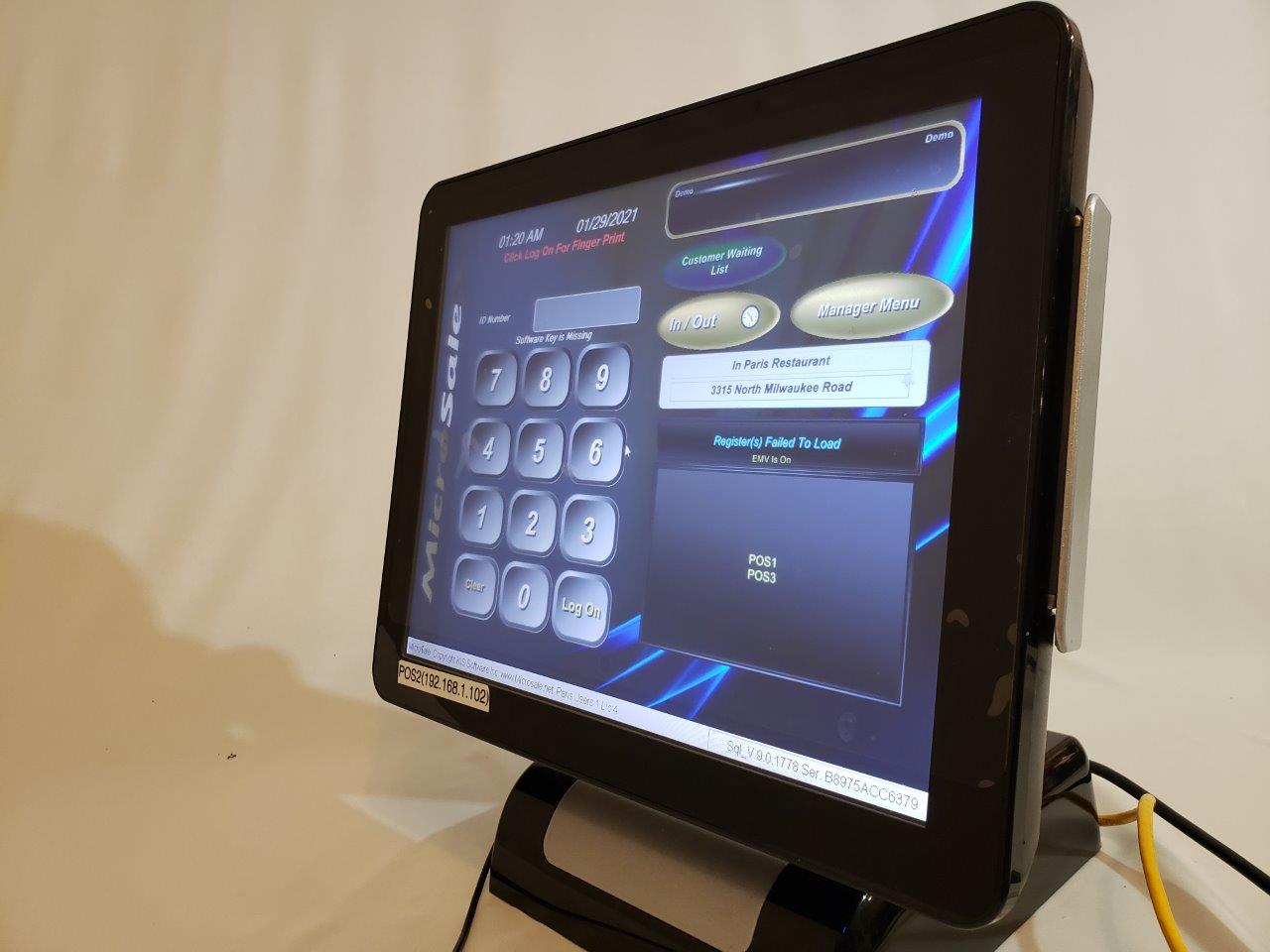

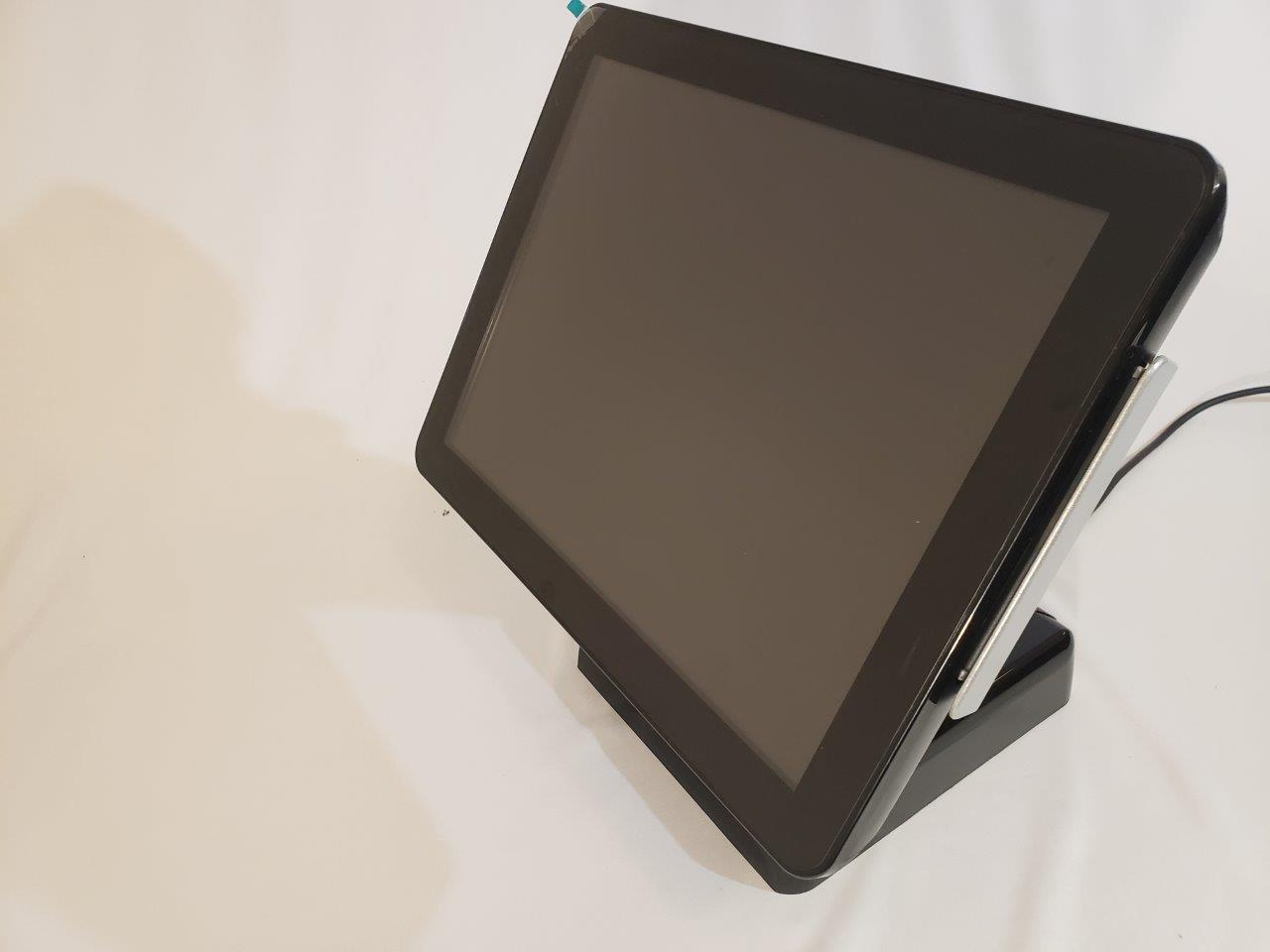

Sam4s POS System TITAN-160 Integrated LCD Touch Screen Terminal
Powered by an Braswell Intel Celeron quad-core fanless proces-sor and designed with a true flat touch panel, the TITAN-360 provides superior spill and dust resistance that ensures optimum performance in harsh retail and food service environments.
– Projected Capacitive Touch Technology extends operating life.
– Brasswell Intel Celeron N1037 Quad Core 1.8GHz Fanless Processor
– True-Flat so debris will not collect and disrupt touch operation. Resists liquid splashes and allows easy clean up.
– Closed case and fanless processor minimize incursion of dust and environmental debris.

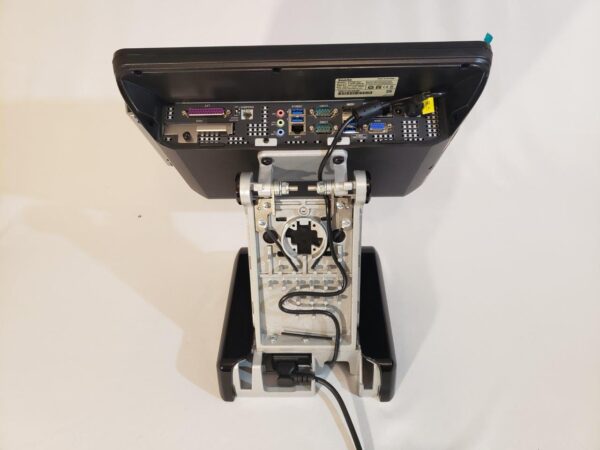

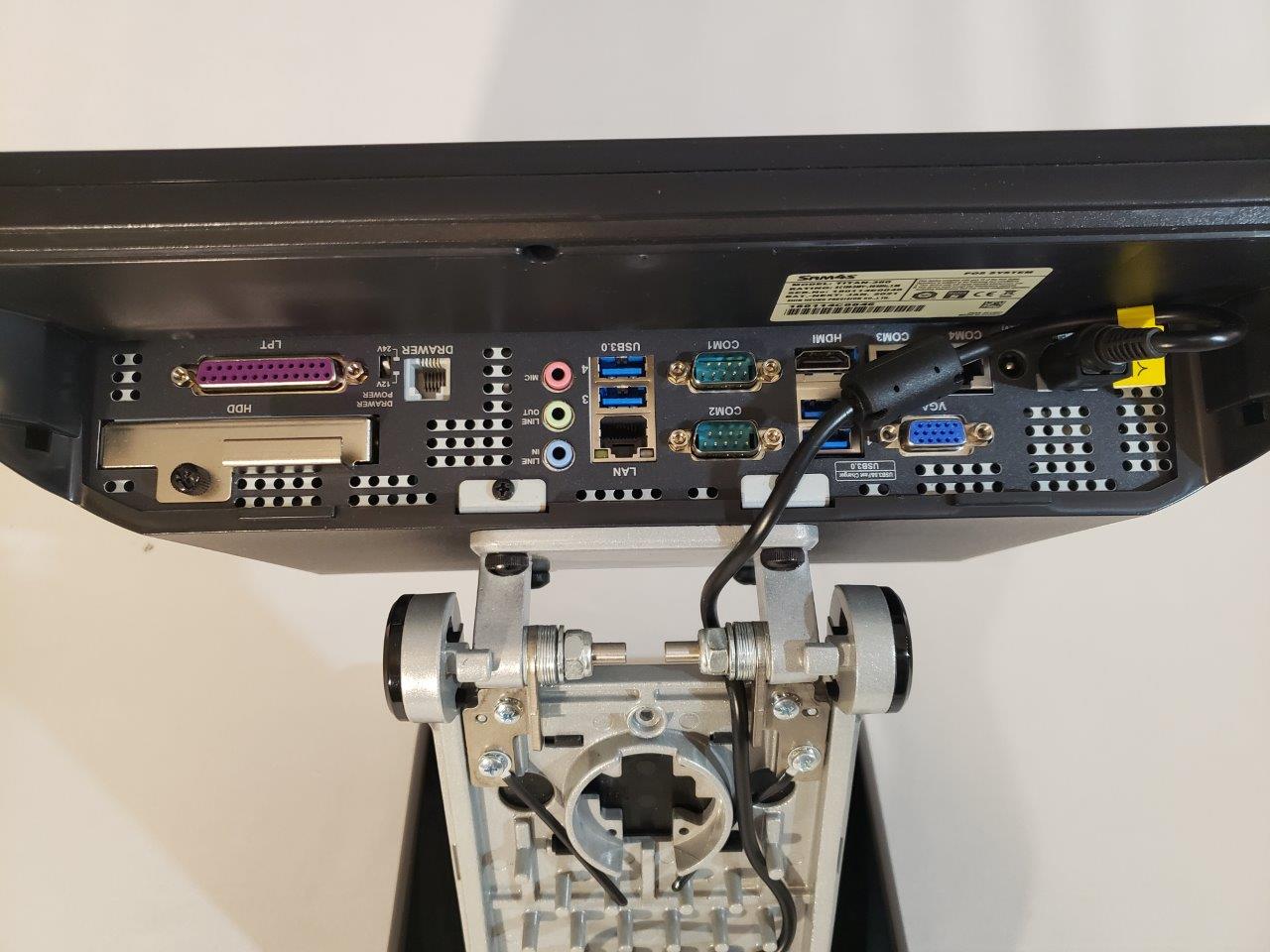

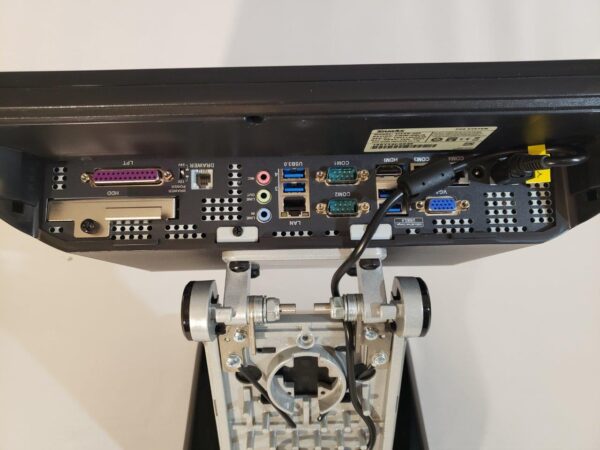

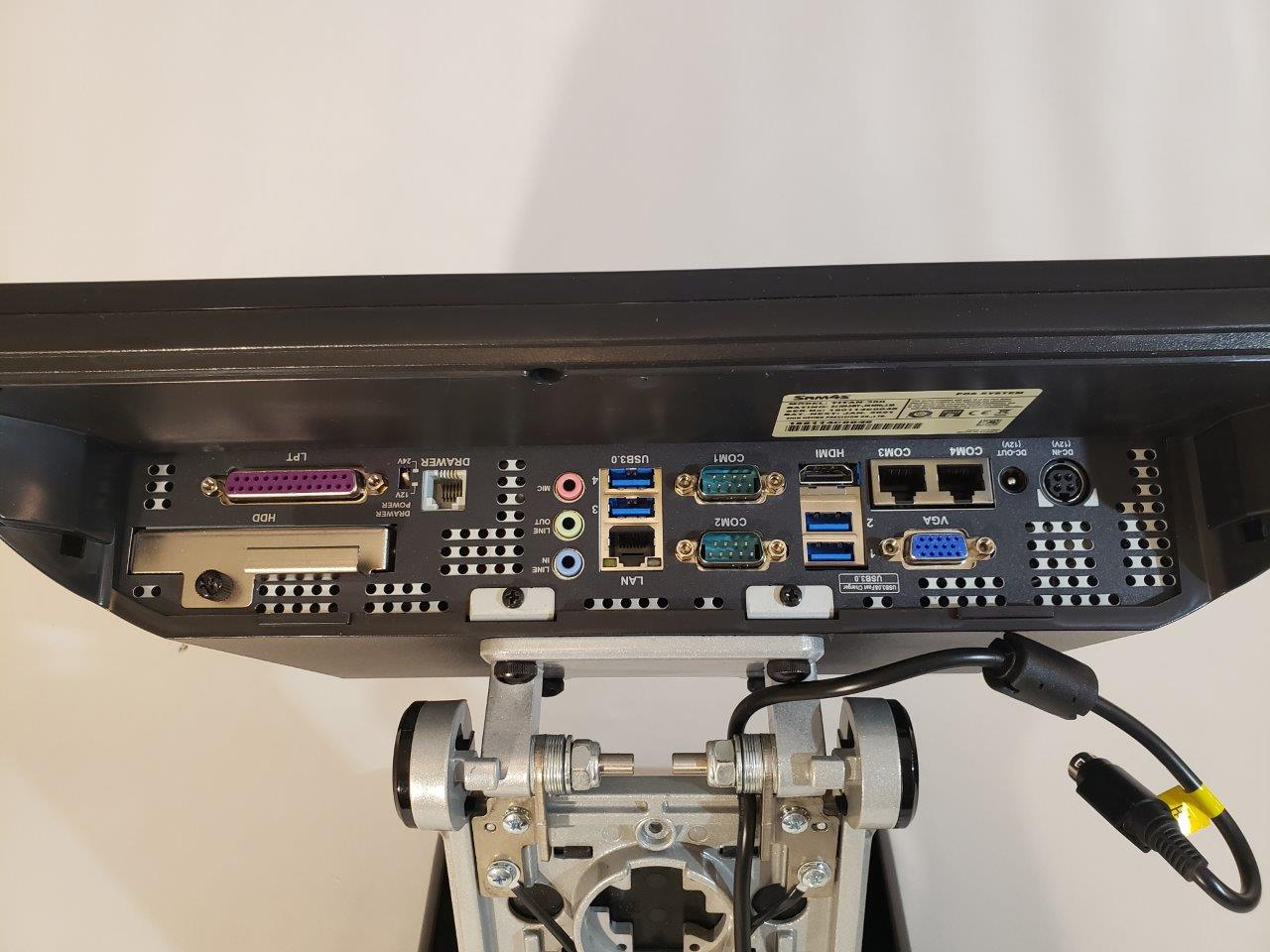

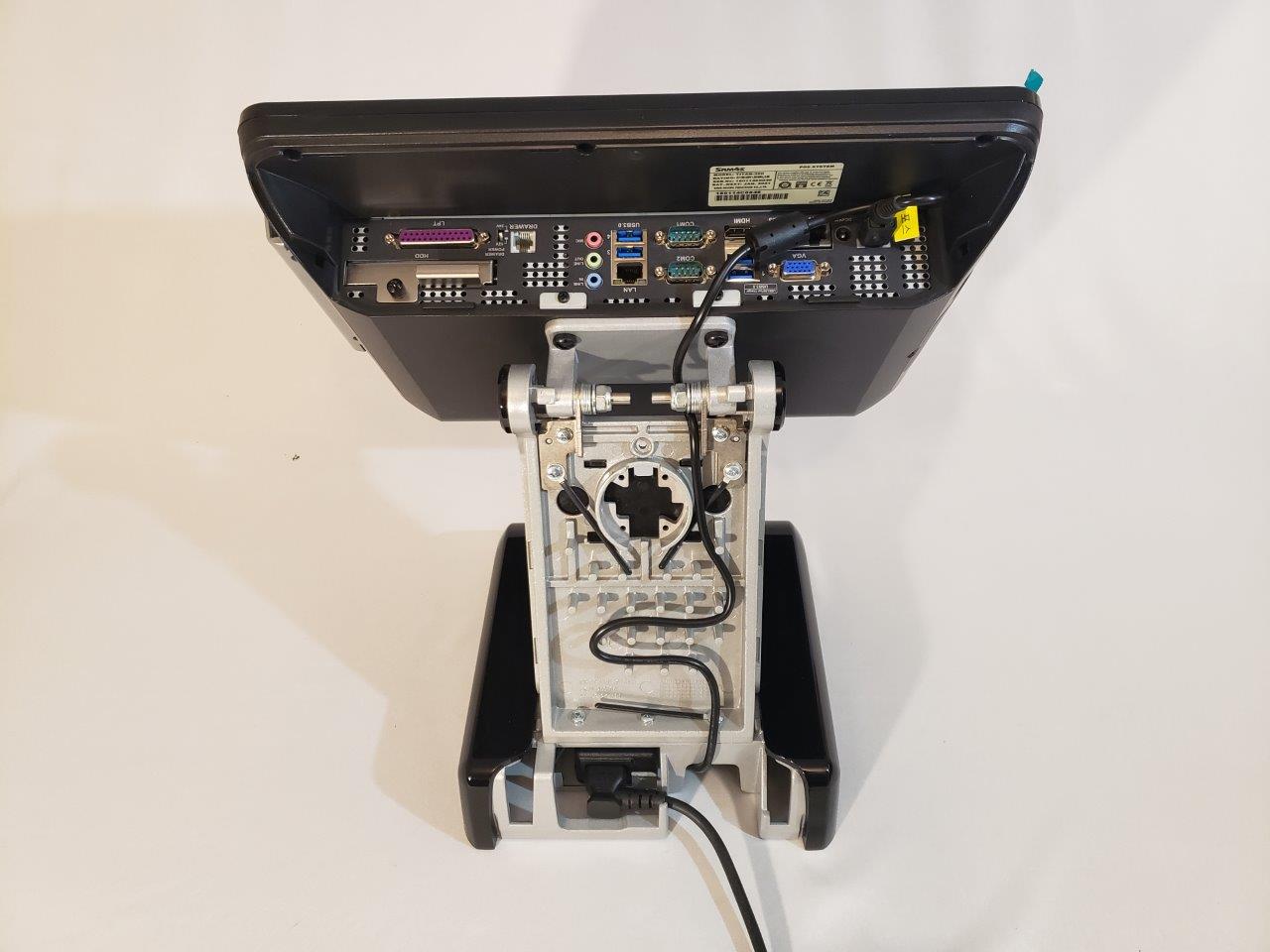

– Connection panel is conveniently located at the top of the terminal – allows cables to be hidden and routed neatly through the stand and out the bottom of the terminal.
– Integrated Power Supply
Standard Terminal Bundles Include HDD, MCR, 4GB RAM and Specified Operating System: 730233 POSReady 7
Processor: Braswell Intel Celeron N1037 (Maximum 1.8GHz)
Cores / Threads: Quad Core / 4 Threads
Cache Memory: 2MB
Display LCD: True Flat 15″ LCD with LED Backlighting
Resolution: 1024 x 768
Brightness: Adjustable Up to 250 cd/m2
Integrated Speakers: Integrated 2 Watt Speakers
Chipset (PCH): System on Chip
Panel: Projected Capacitive Touch
Reliability: Over 100 Million Touches
MCR: Integrated USB Interface Triple Track MCR w/Optional Encryption &/or Fingerprint Reader
Mass Storage Device: 320GB Hard Drive
RAM Memory: 4GB SODIMM DDR3 Expandable to 8GB
Video Memory: Shared System Memory Up To 1.7GB
COM1 / COM2 = DB9 With Pin 9 0V/+5V/+12V (User Selectable by BIOS)
COM3 / COM4 = RJ45 Pin 1 +5V/+12V (Selectable by Jumper)
COM6 = RJ45 (VFD Customer Display Port)
Parallel Port: One DB25F
USB Ports: Six (Two V2.0 Left Side / Four V3.0 Bottom)
Cash Drawer Port: RJ11, 12V or 24V Selectable By Switch – Maximum 2 Drawers – Drawer Compulsion
HDMI Port: One HDMI
LAN Port: RJ45 10/100/1000 Base-T (Giga LAN) RealTek RTL8111E
VGA Port: One DB15F Display Port For Second LCD (Maximum Resolution 2048 x 1536)
Audio Port: One Line-In / One Line-Out
Mic Port: One Mic-In
Power Supply: 60W, 12V/5A Integrated Power Adaptor 100-240V 50-60Hz
Current / Power Usage: 0.25A / 27W (110V Idle Environment)
Operating Temperature: 32° F to 104° F (0° C to 40° C)

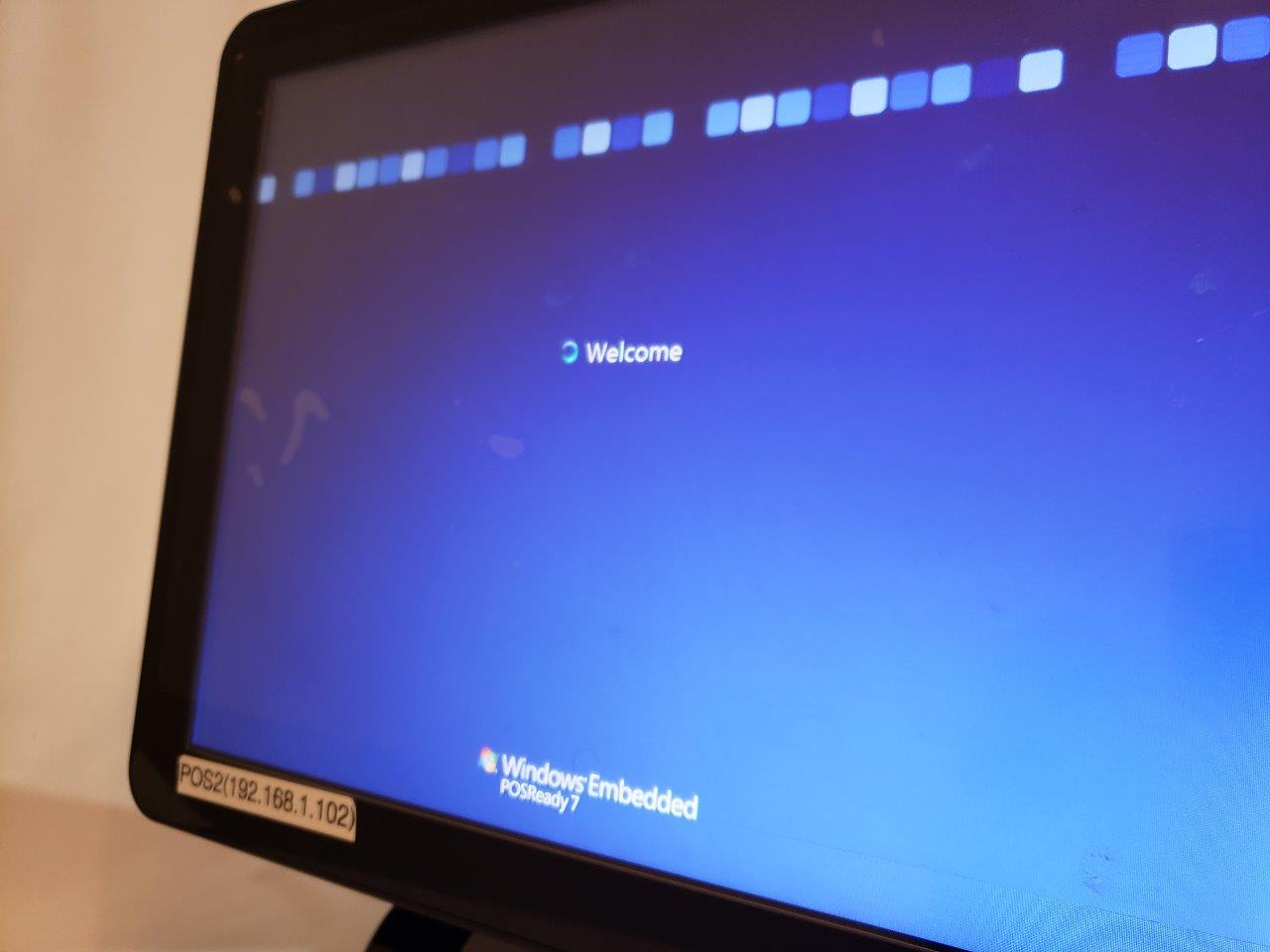

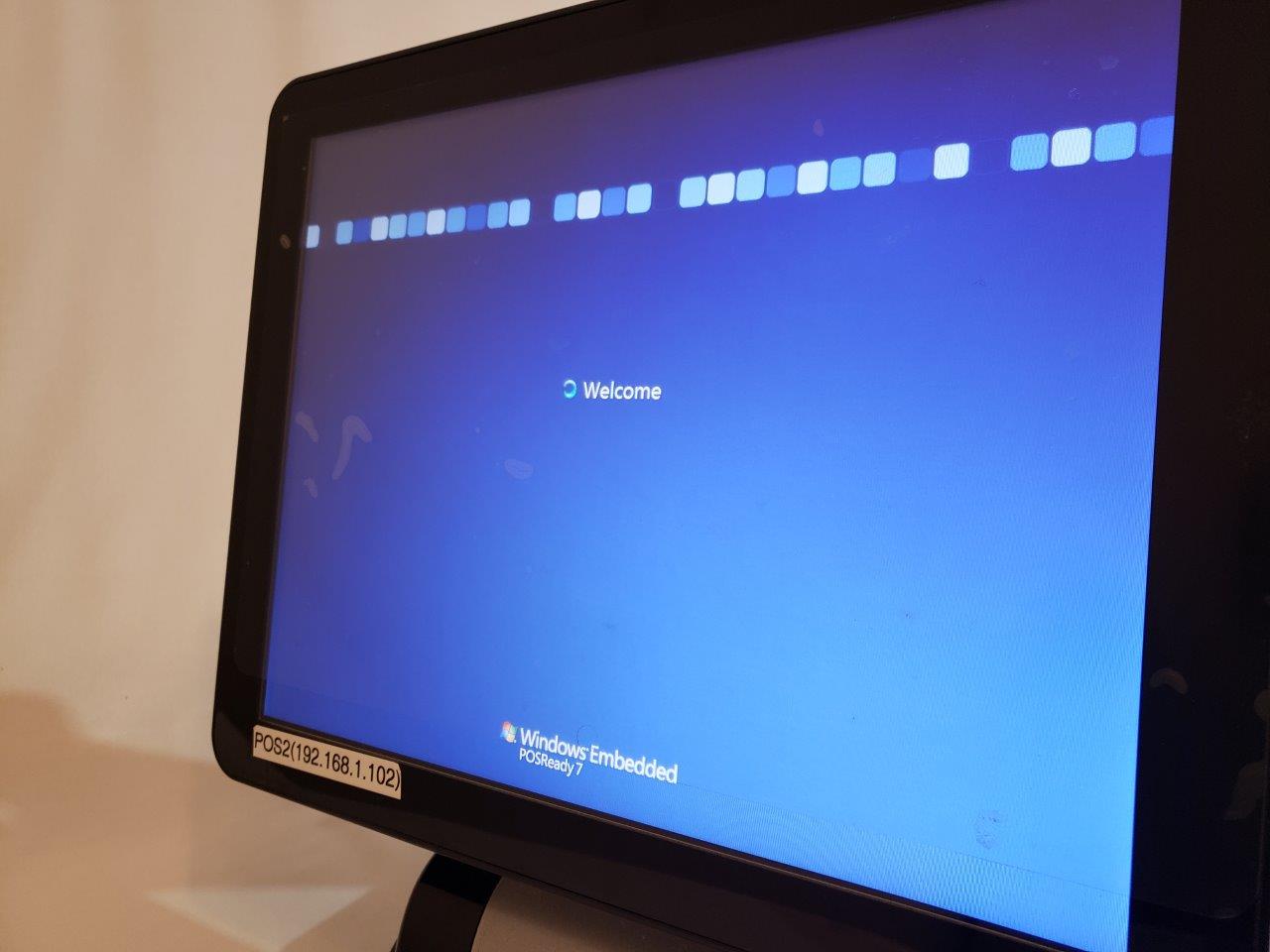

Compatible O/S: POSReady 7

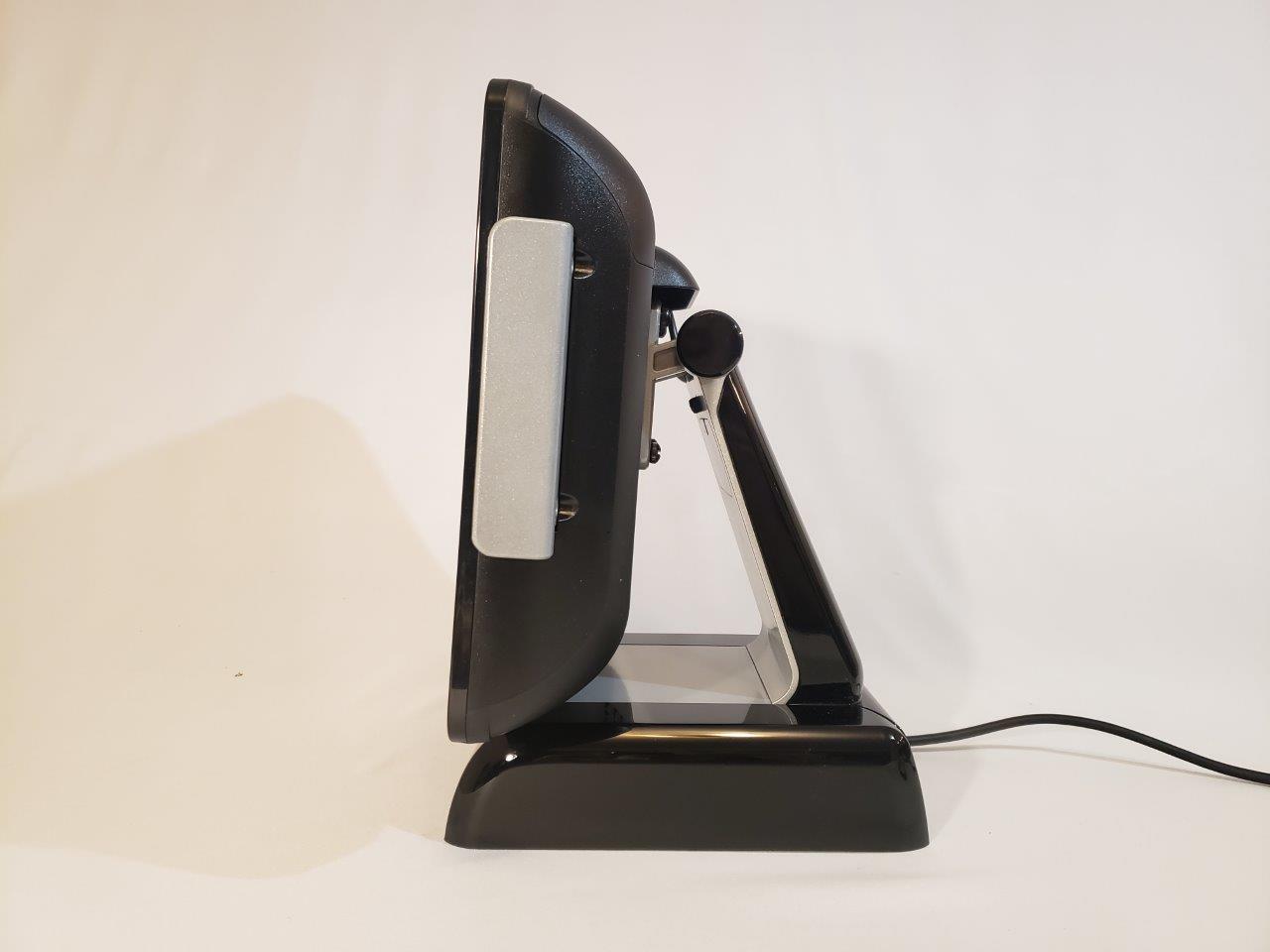

Base: 8-3/4″W x 2-3/8″H x 9-9/16″D
Unit:12-1/2″W x 15″H x 9-9/16″D 18.56 lbs.
Safety and EMI: FCC, RoHS

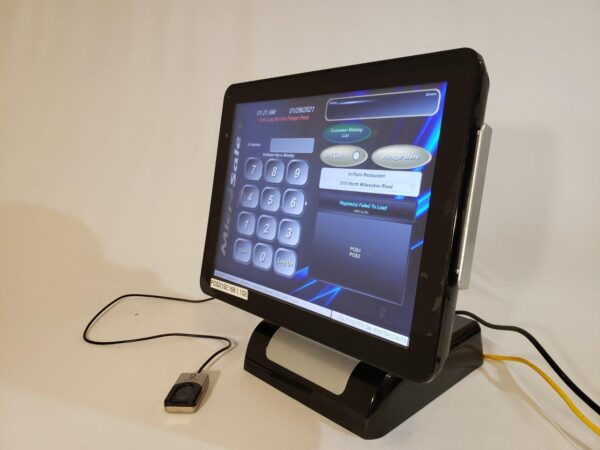

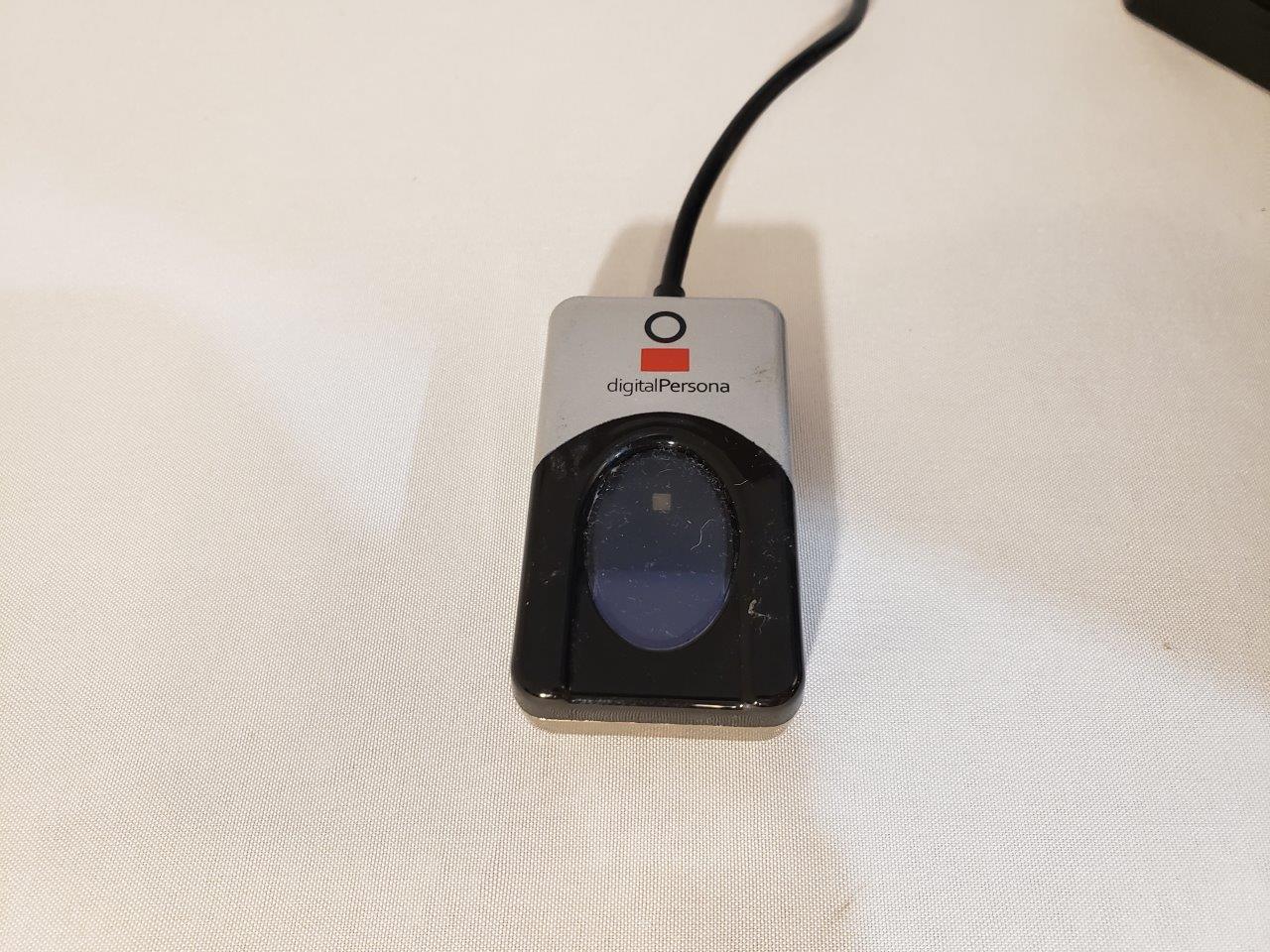

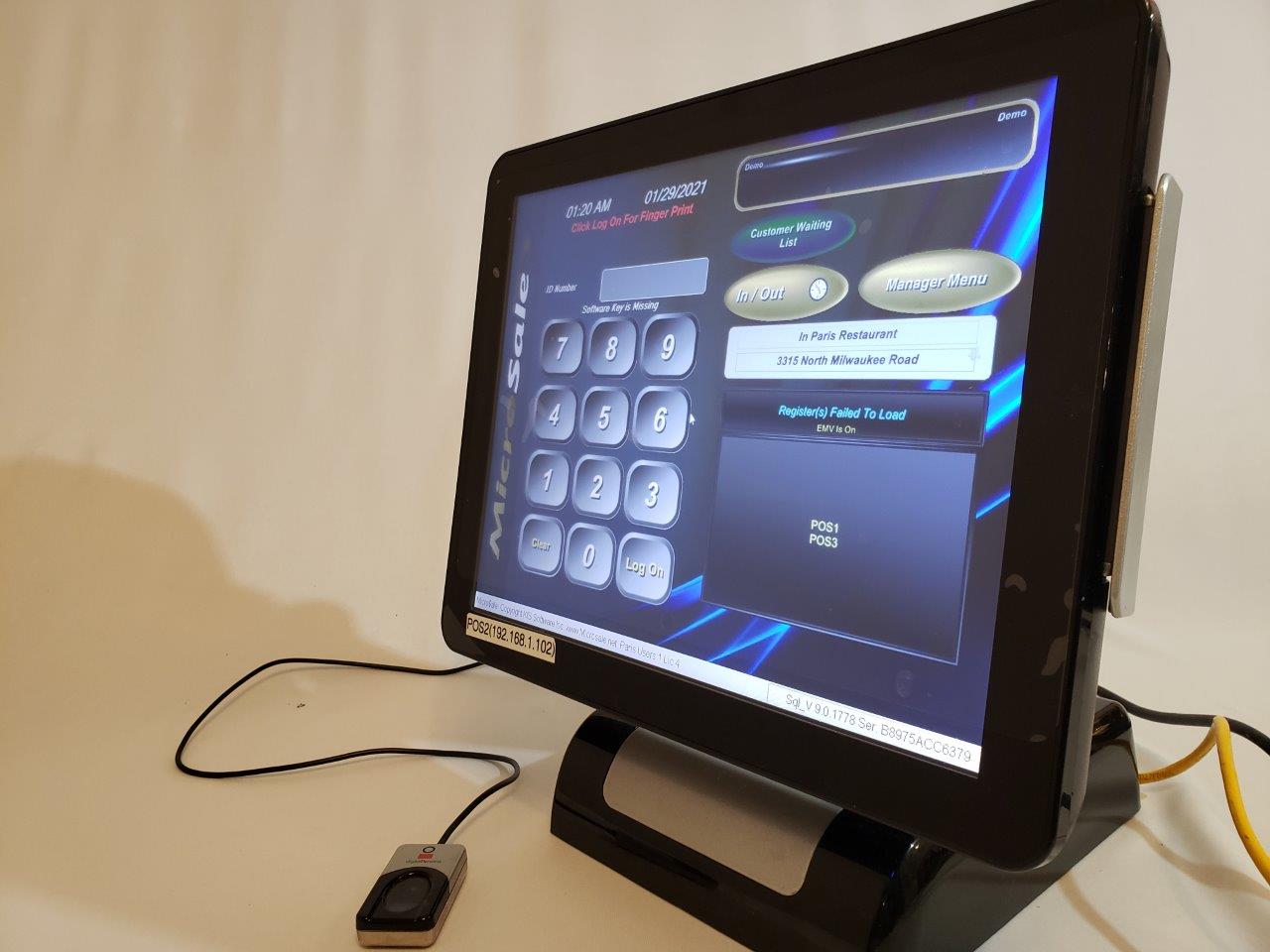

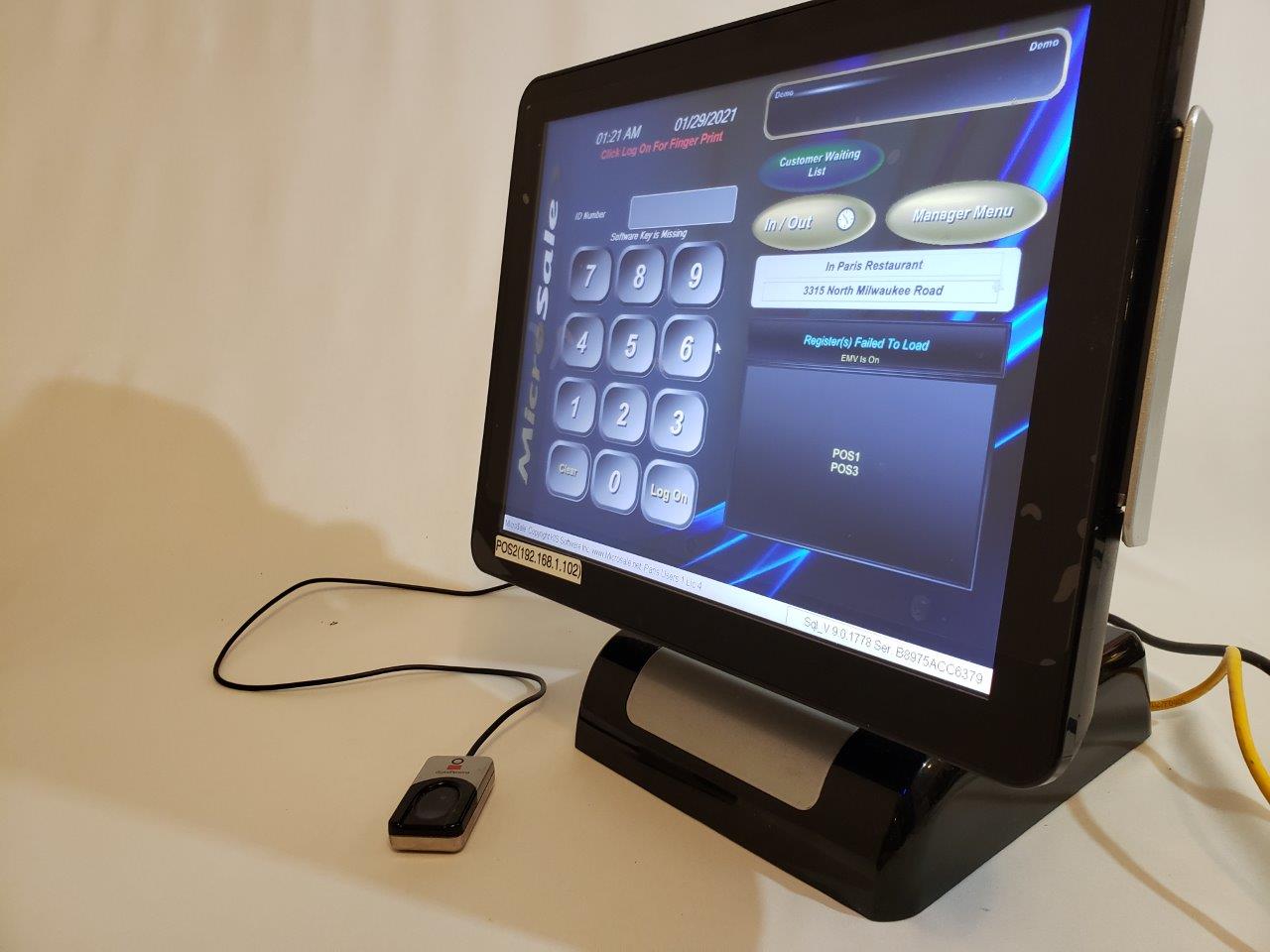

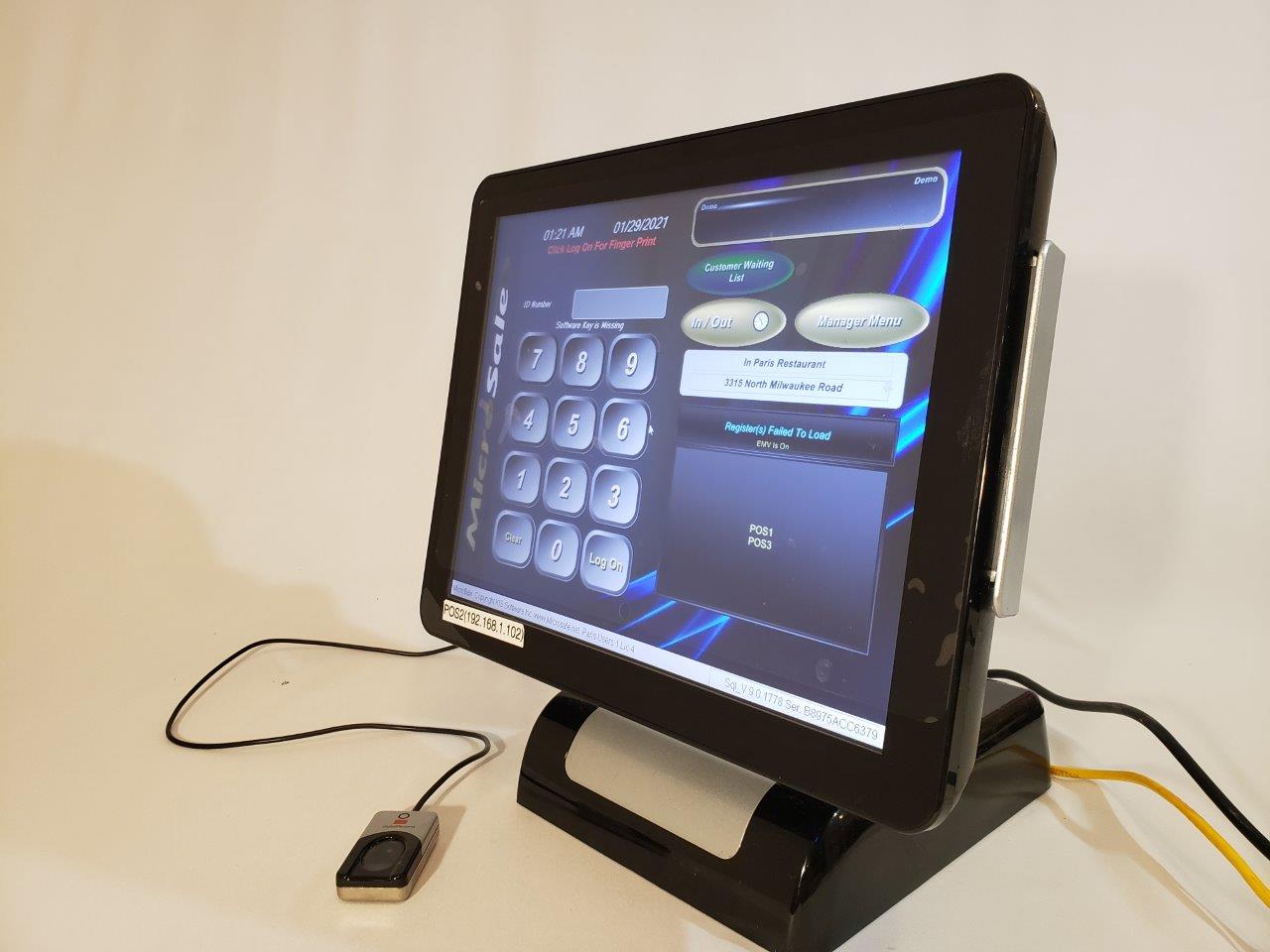

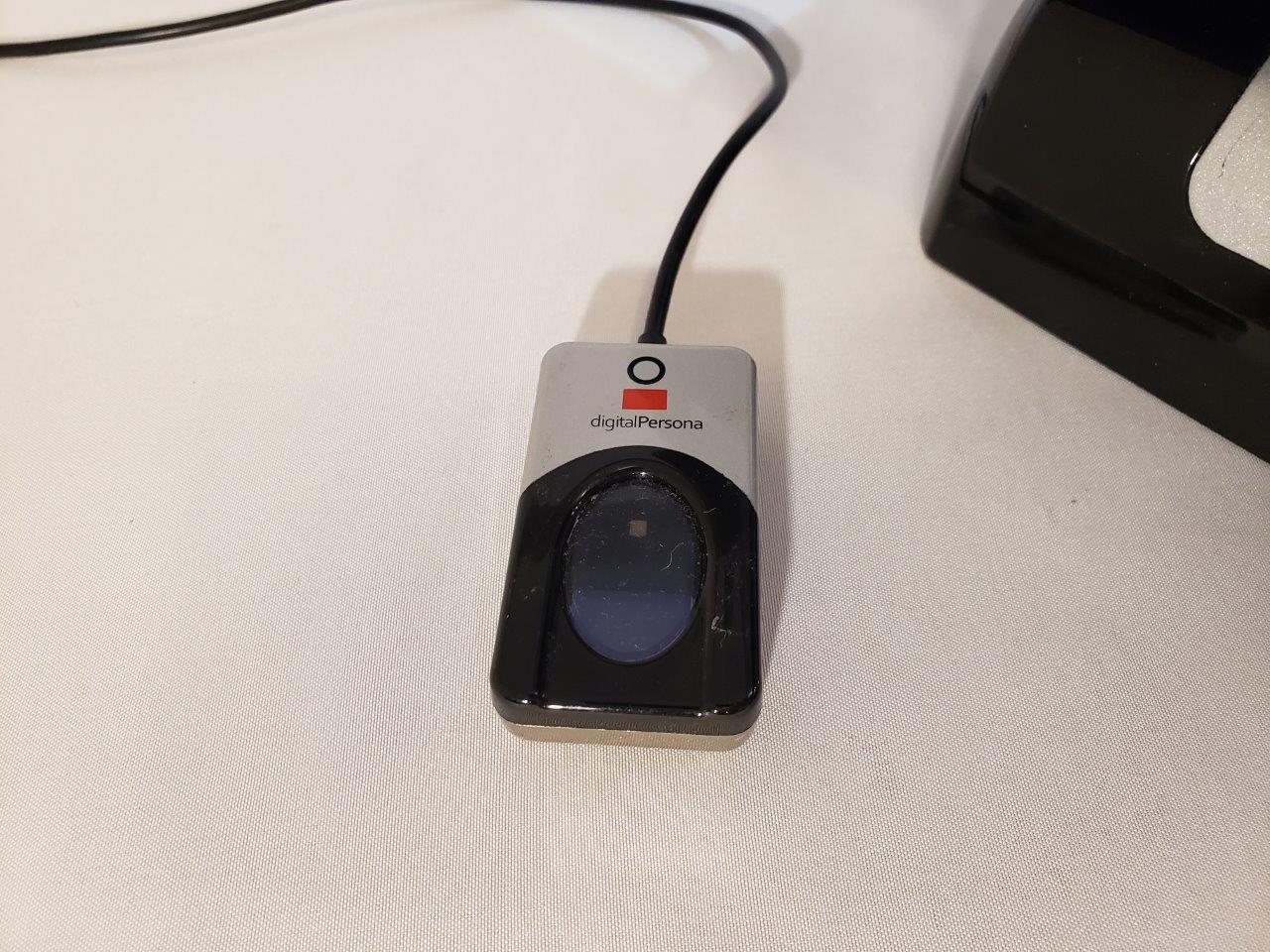

503136 Integrated Digital Persona Fingerprint Reader
