6 in stock

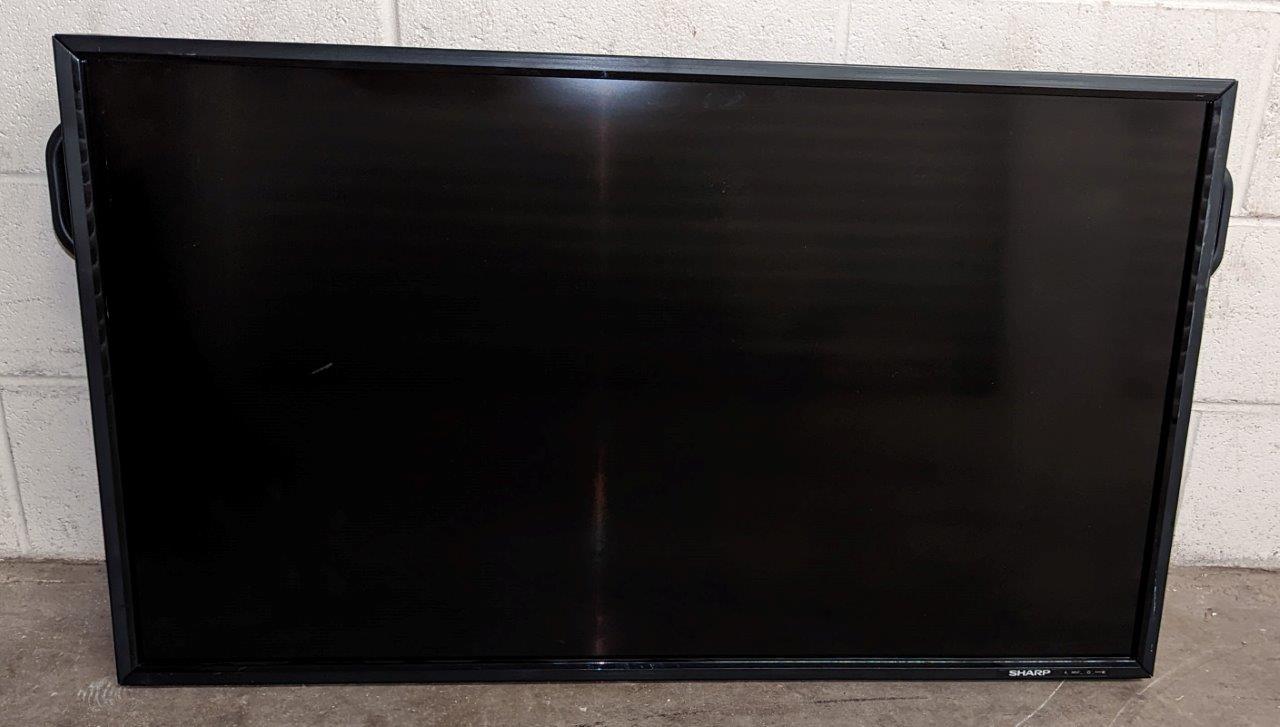

42″ Class (42″ Diagonal) Full Color Professional LCD Display Monitor – 24/7 Rated. Offers compatibility with PN-ZB01 optional input/output expansion board. Portrait and landscape compatible.

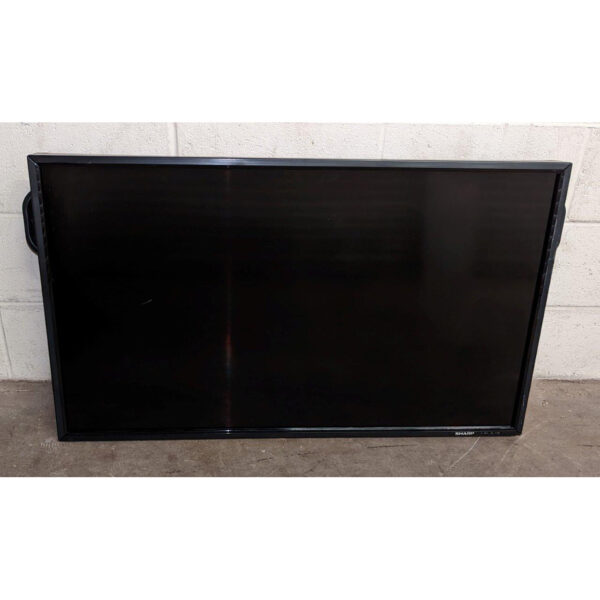

The 42″ Class (42-1/16″ Diagonal) PN-E421 LCD monitor offers exceptionally high image quality and reliability for use in commercial display and digital signage applications. 24/7 certified, the thin bezel PN-E421 offers full 1920 x 1080 (1080p) resolution from analog RGB, digital RGB and HDTV video sources along with compatibility for use in both portrait and landscape modes. Fanless architecture helps ensure ultra-quiet reliable operation, and optional input/output expansion board and signage controller provide maximum flexibility. The PN-E421 LCD display professional monitor is fully compatible with SDSS™ Sharp Digital Signage Software. Also available is the PN-E421P, which features an integrated protective overlay for use in high traffic areas.
42″ Class (42-1/16″ Diagonal) Screen Size – with 700 cd/m2 brightness and 3000:1 contrast ratio.
Full 1920 x 1080 (1080p) Resolution – from analog RGB, digital RGB and HDTV video sources.
24/7 Certified – for use in most any commercial application.
3-Year On-Site Limited Warranty – covers parts, labor and backlight, in both landscape and portrait modes.
Advanced Fanless Architecture – operates silently with maximum reliability.

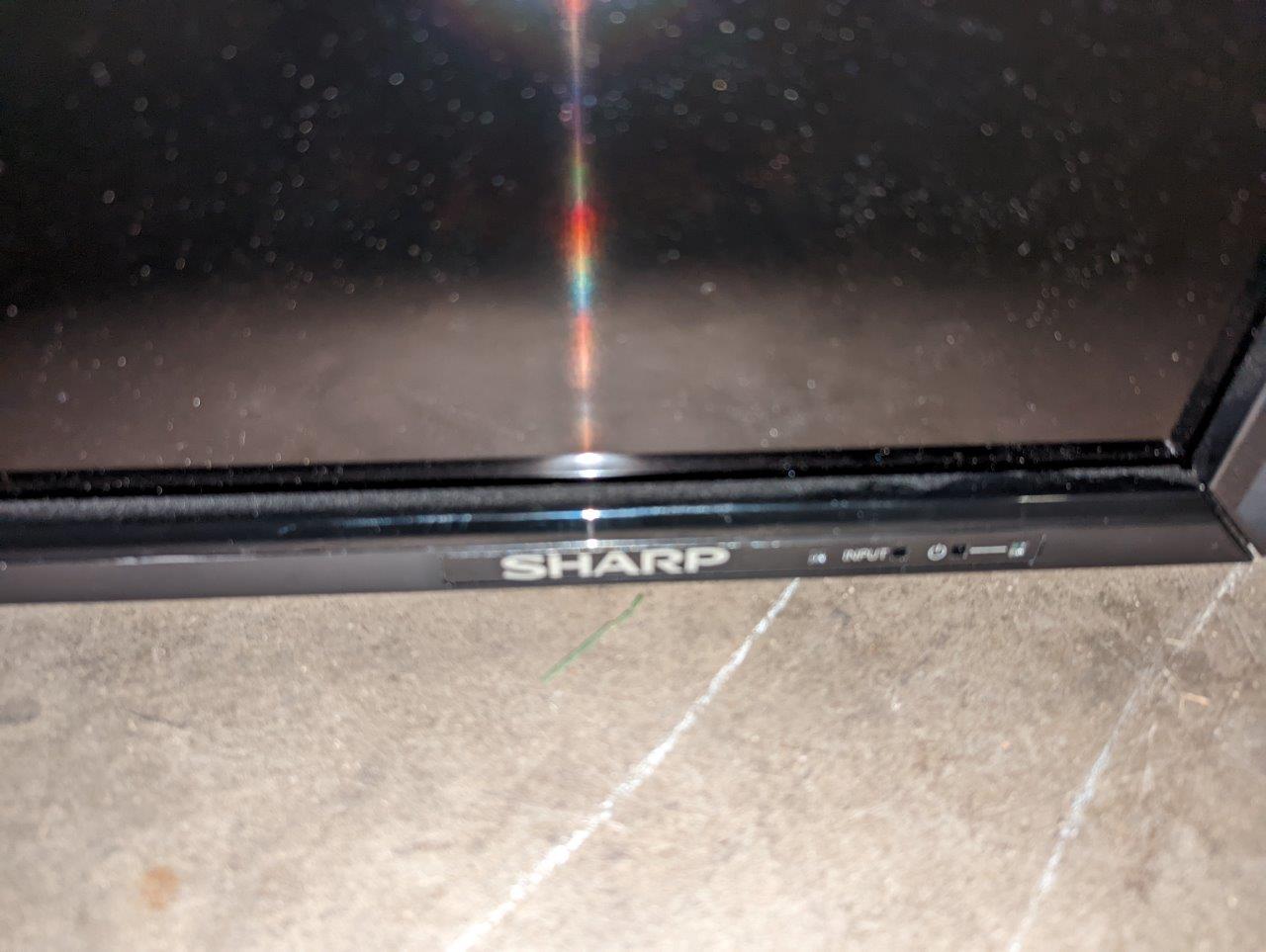

Thin Bezel Design along with Enlarge (Zoom) Display Mode – enables easy installation of high-impact video walls of up to 5 x 5. (Some installations may require additional third-party hardware.)
Built-in 10 Watt per Channel Stereo Speakers – eliminates need for an external audio system for many installations.

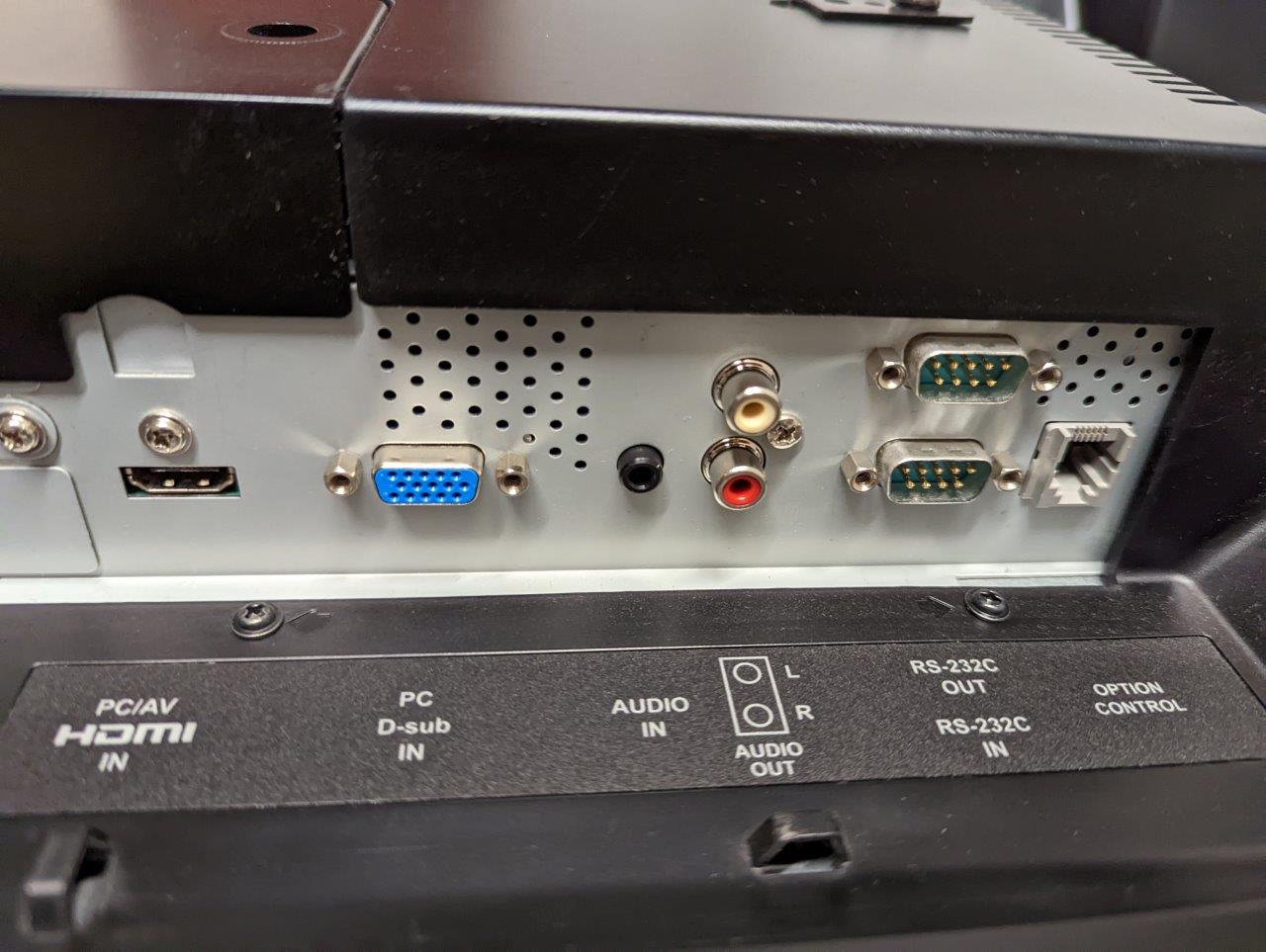

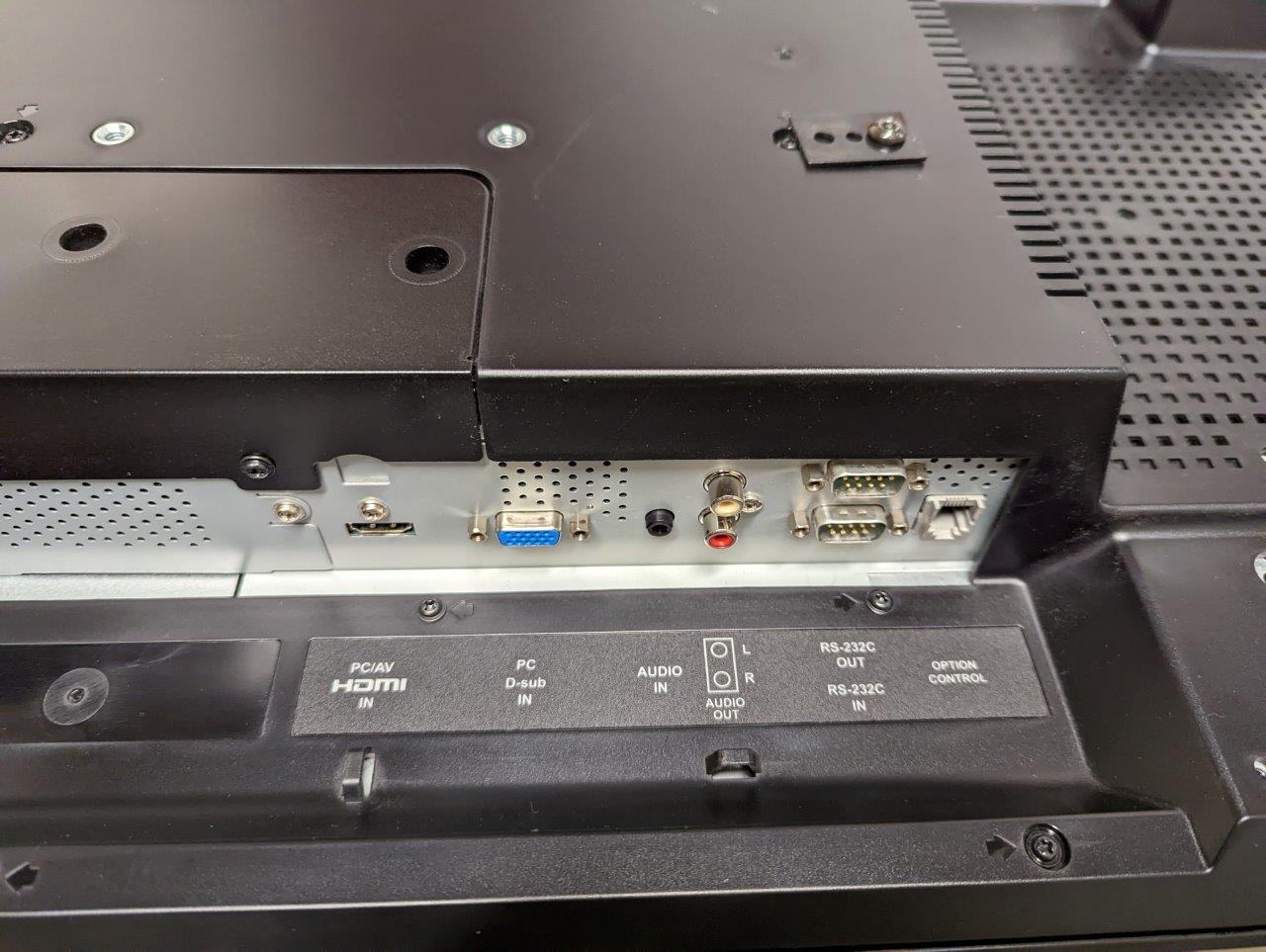

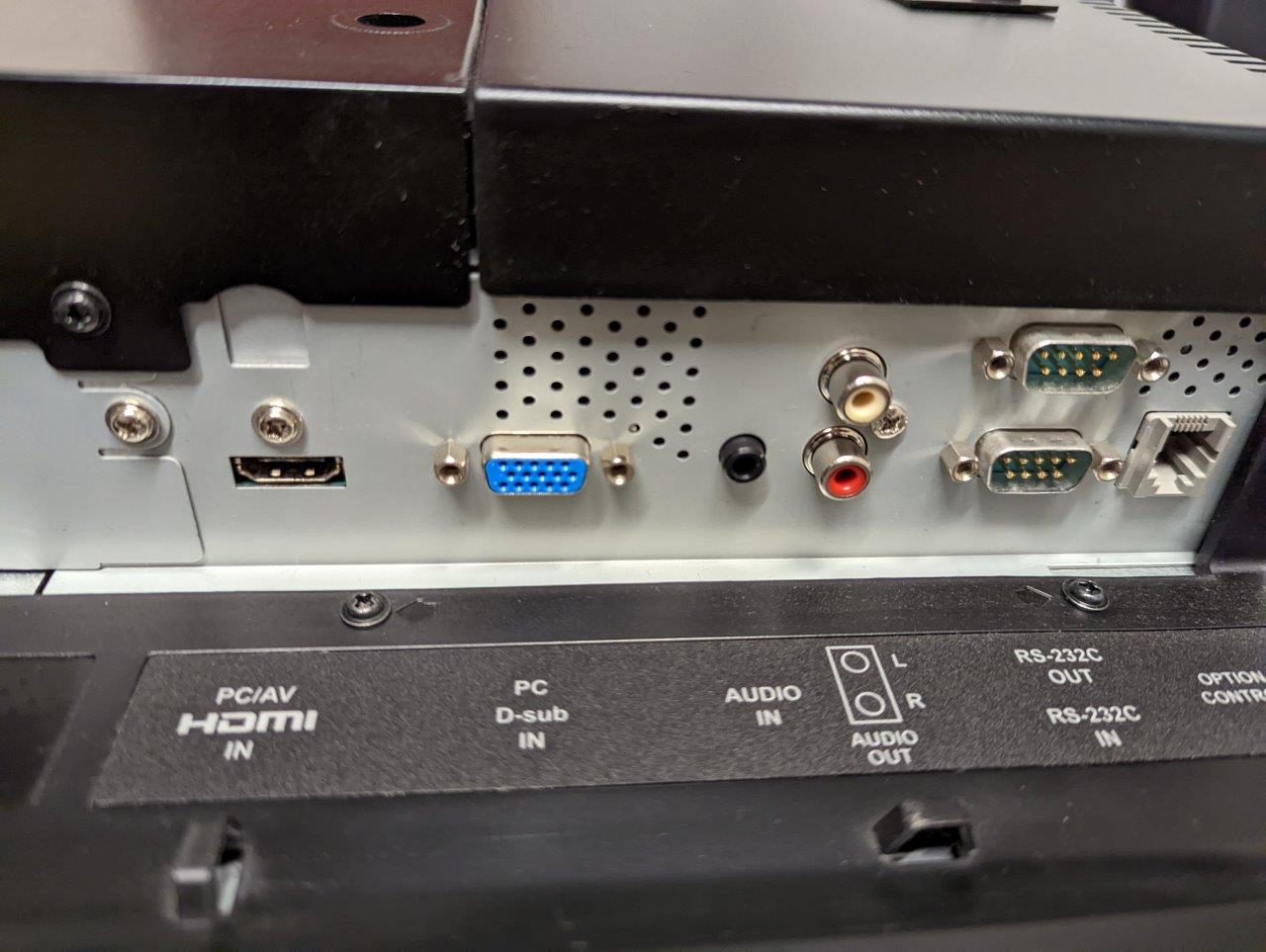

Extensive Interface Capability – Standard interfaces include HDMI® input D-Sub 15-pin RGB input, stereo audio input, stereo audio line-output and RS-232C input/output.
Optional Input/Output Expansion Board (PN-ZB01) – adds DVI-D input/output, 5-BNC analog RGB input, component video input, S-video input, composite video input (BNC), stereo audio (RCA) input x 2, RJ-45 LAN display control and stereo speaker output (10W x 2).
Optional Signage Controller (PC) – easily attaches to rear of display. Permits all-in-one digital signage display package.
Compatible with SDSS Sharp Digital Signage Software
Available with Integrated Protective Overlay (PN-E421P) – to enable use in high traffic applications.
ENERGY STAR® – with exceptionally low power consumption.
|Screen Size||42″ Diagonal|
|Pixel Pitch||0.49 H×V|
|Displayable Colors||1.1 billion colors|
|Color System||NTSC, PAL, SECAM|
|RGB In||5 BNCs||Back|
|VGA In||15-Pin Dsub||Back|
|DVI Digital Input||24 pin DVI-D||Back|

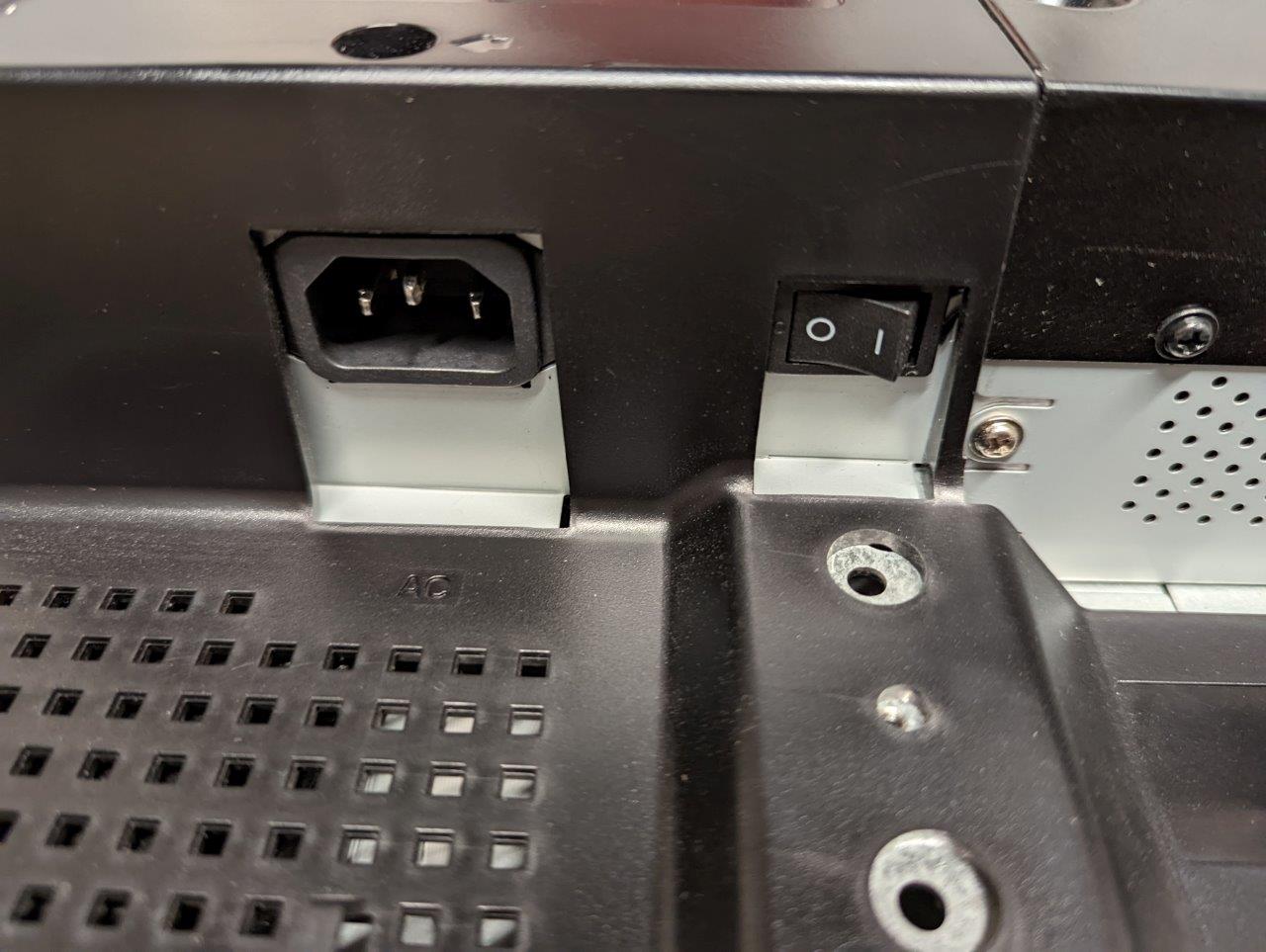

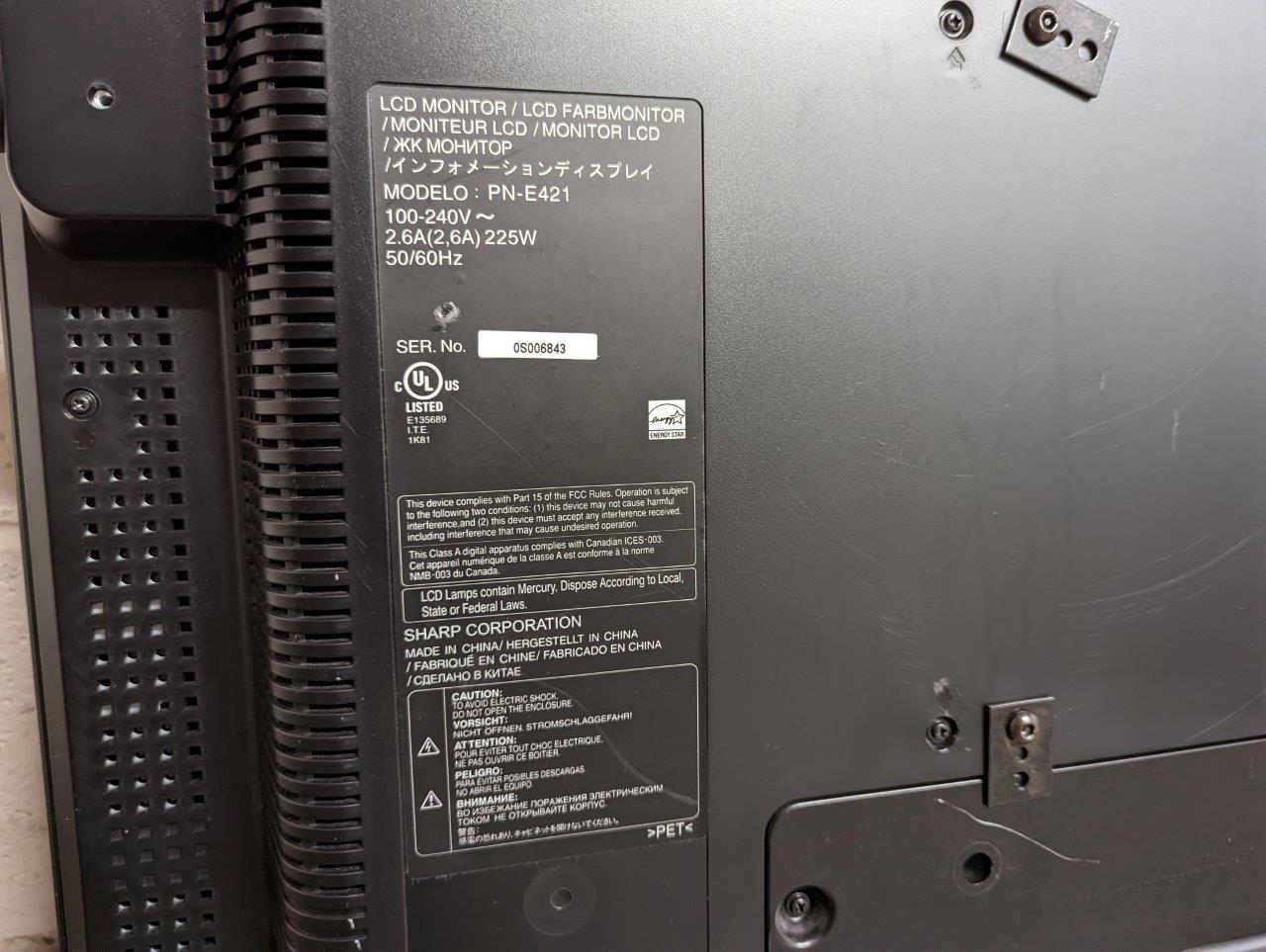

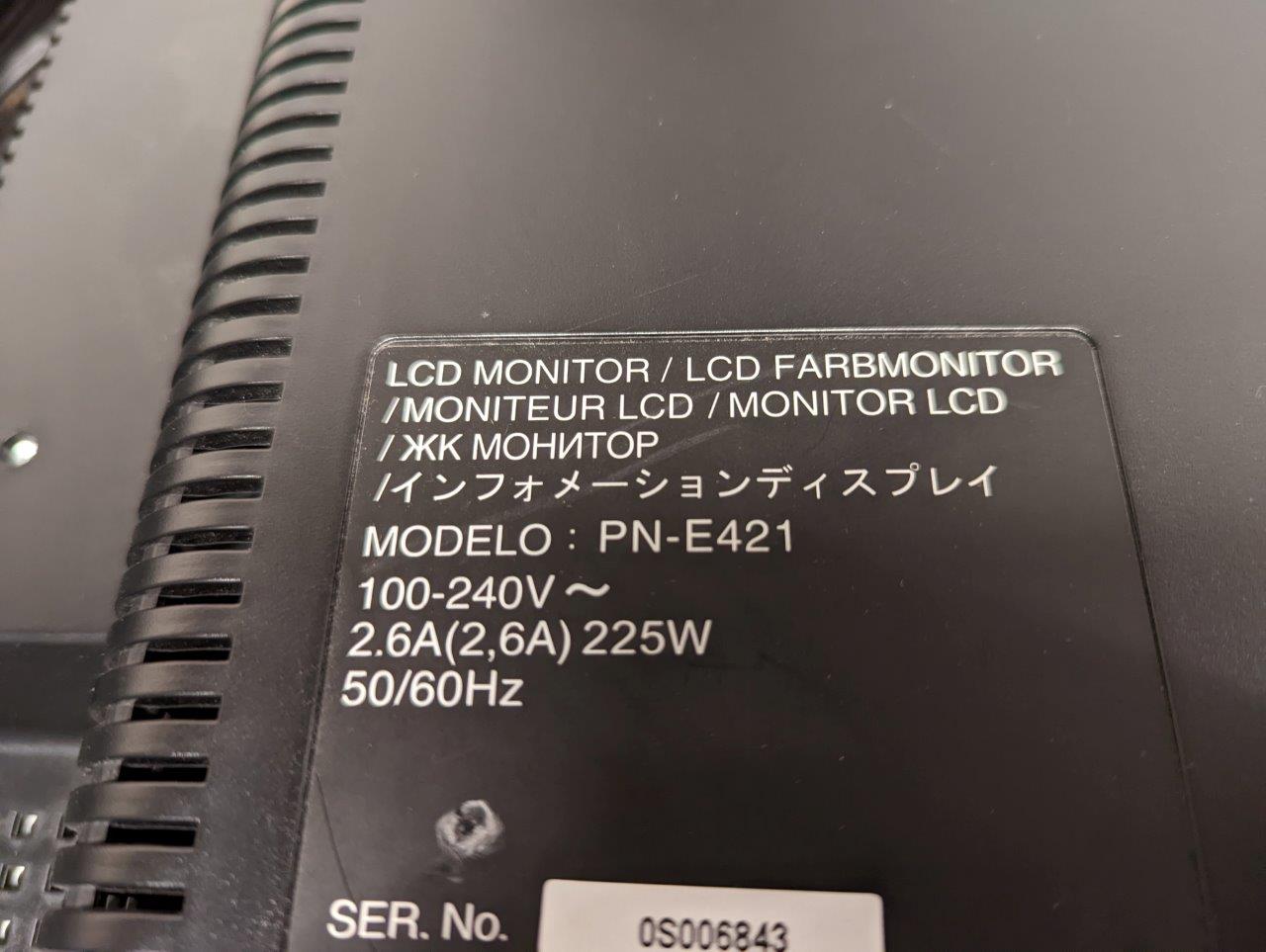

|Power Supply||100V – 240V|
|Power Consumption||225 Watts|
|Standby Power||2.0 Watts|

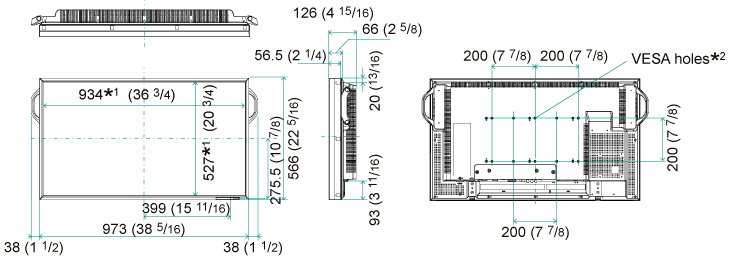

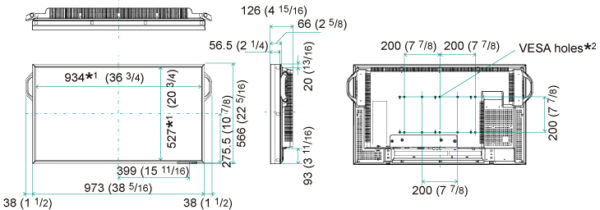

|Dimensions (W x H x D)
(without stand or speakers)
|38.3″ x 22.3″ x 4.9″|
|Speakers||10.0 W × 2|

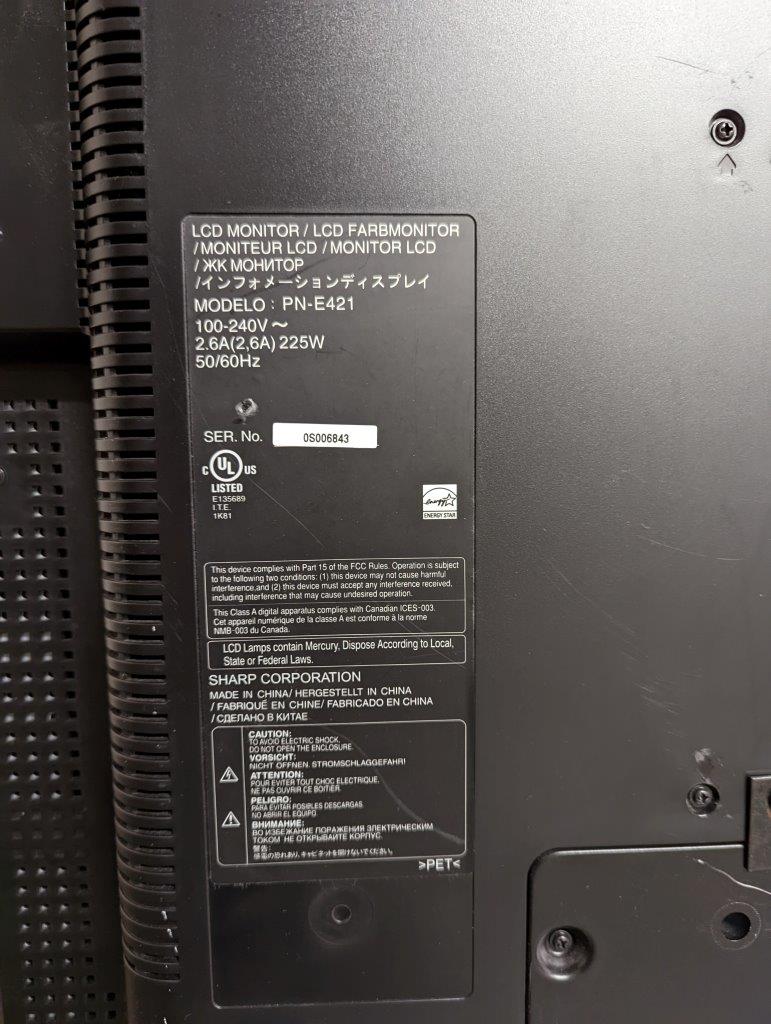

|FCC Class||FCC Class A, Commerical|
