Description

Compression : H.264, H.264 Plus, H.265, NVR
Pre-Installed Storage : 4TB Seagate
Video Output : 1x HDMI 1x VGA
Max. Recording Resolution : 12MP
Hard Drive Ports : 4 SATA Ports
Max. Storage Capacity : 24 TB Storage Capacity
Number of PoE Ports : 16 PoE Ports

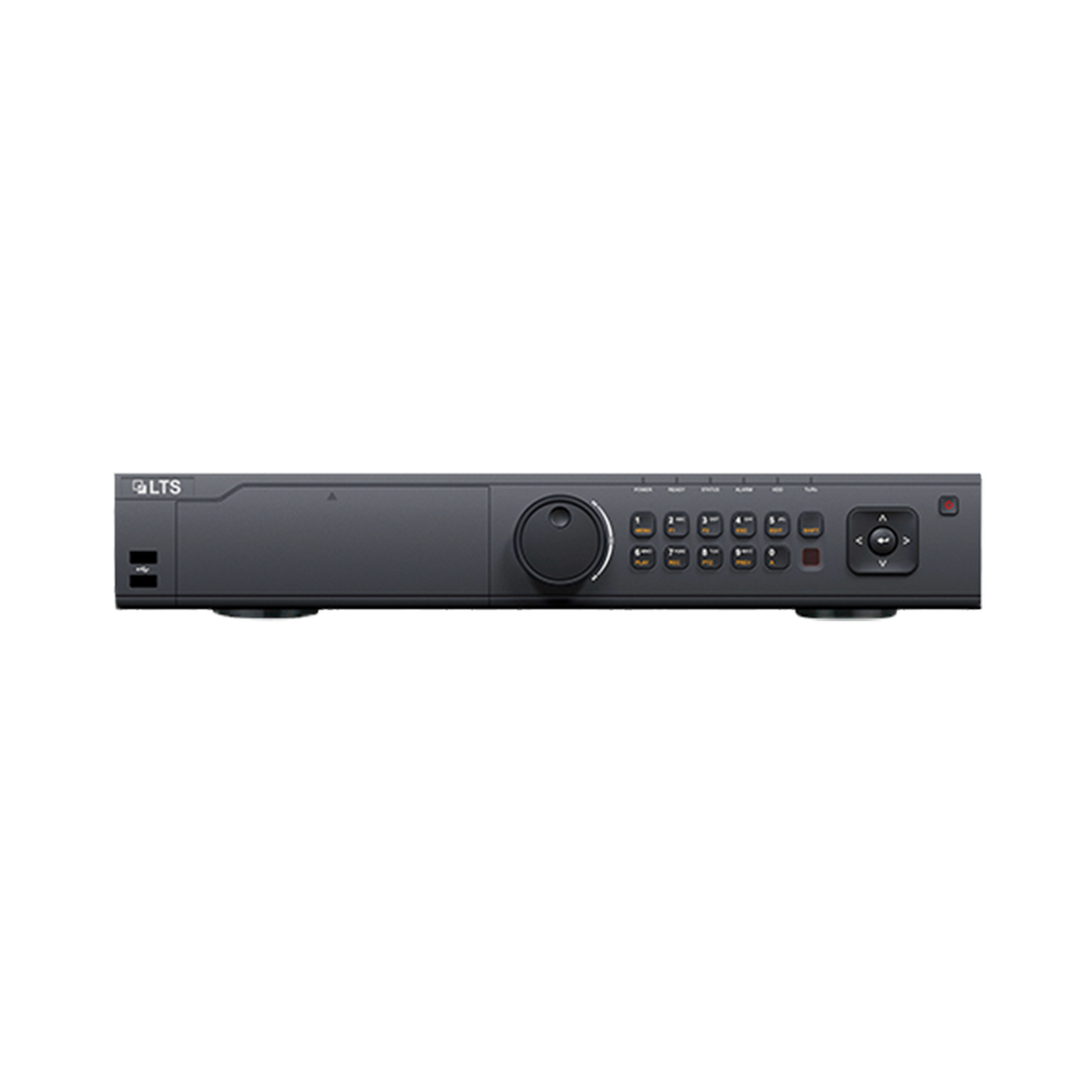

32 Channel Network Video Recorder

Network

Incoming Bandwidth 160Mbps
Outgoing Bandwidth 256Mbps
Remote Connection 128

Video/Audio Output

Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output 1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Output 1-CH, RCA (Linear, 1kO)

Decoding

Live View/ Playback Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback 16-CH
Capability 4-ch @ 4K, or 16-ch @1080p

Hard Disk

SATA 4 SATA interfaces for 4 HDDs
Capacity Up to 6TB for Each Disk

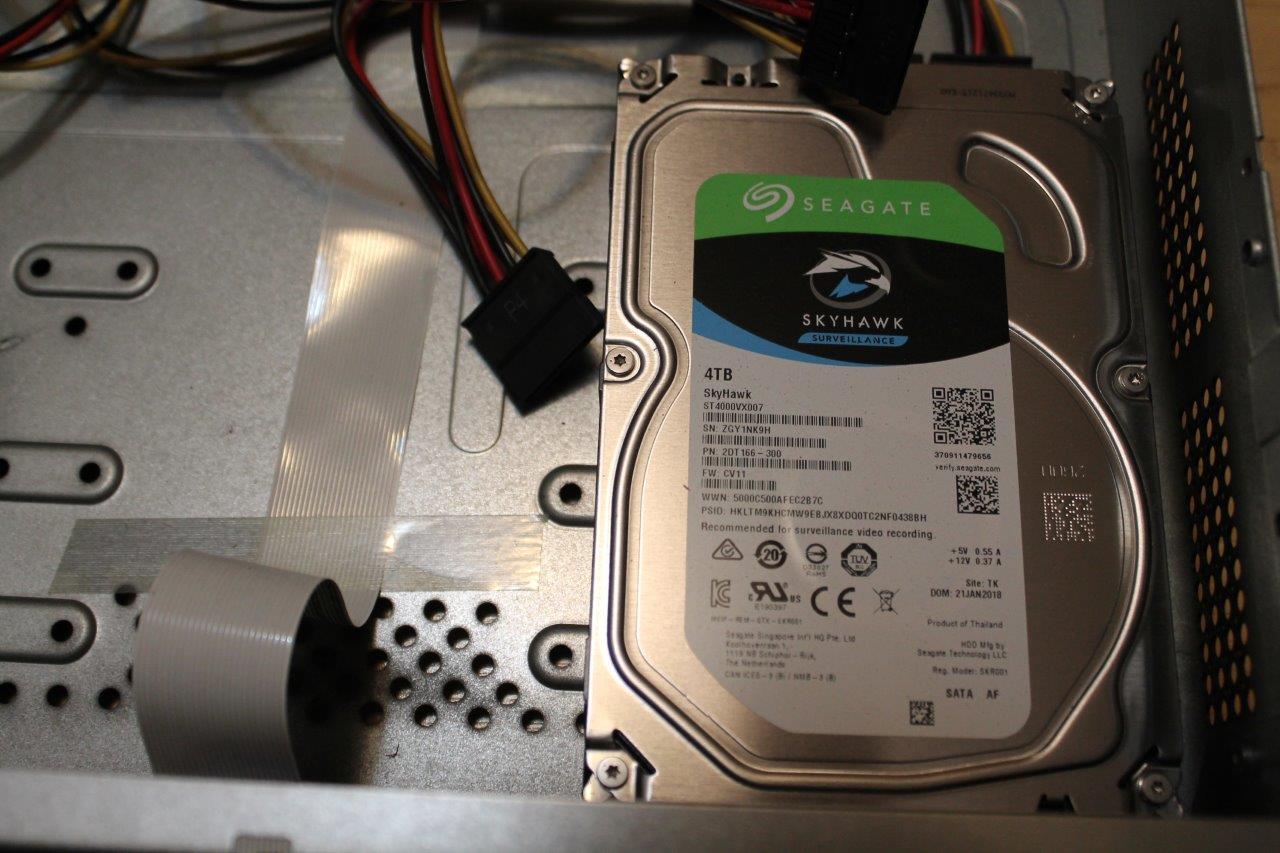

Pre-installed 4TB Seagate HDD

External Interface

Network Interface 1 RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface
Serial Interface 1 RS-485 (Half-Duplex), 1 RS-232
USB Interface Front Panel: 2×USB 2.0; Rear Panel: 1×USB 3.0
Alarm In/Out 16/4

PoE

Interface 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interfaces
Max Power 16RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
Supported Standard IEEE 802.3 af/at

General

Power Supply 100~240V AC
Consumption =20W (Without Enabling PoE)
Working Temperature +14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity 10% – 90%
Casing 19-Inch Rack-Mounted 1.5U Casing
